Product Finder - Linear Motor Stages

Max. Load

Please confirm your selection
Minimum incremental motion

Please confirm your selection
Travel Range

Please confirm your selection
Drive Type

Please confirm your selection
Bearing Type

Please confirm your selection

23 results


A-110 PIglide LC Linear Stage with Air Bearings

Inexpensive High Performance Nanopositioning Stage
  • High precision positioning
  • Inexpensive & clean room compatible
  • Motion platform 160mm × 200mm
  • Travel ranges up to 400mm
  • Load capacity up to 100N

A-121 PIglide AT1 Linear Stage with Air Bearings

High Performance Small Footprint Nanopositioning Stage
  • High performance nanopositioning stage
  • small design
  • Motion platform 115mm × 115mm
  • Travel ranges up to 350mm
  • Resolution up to 1nm

A-123 PIglide AT3 Linear Stage with Air Bearings

High Performance Nanopositioning Stage
  • High performance nanopositioning stage
  • Clean room compatible
  • Motion platform 210mm × 210mm
  • Travel ranges 50mm to 750mm
  • Resolution up to 1 nm

A-131 PIglide VC Voice Coil Linear Stage with Air Bearings

High-Performance Miniature Nanopositioning System
  • Miniature nanopositioning system
  • Clean room compatible
  • Travel ranges up to 25mm
  • Load capacity up to 30N
  • Acceleration up to 40m/s

A-141 PIglide MB Miniature Linear Stage with Air Bearings

High Performance, Cleanroom Compatible, Customizable
  • High performance
  • Clean room compatible
  • Motion platform 57mm × 93mm
  • Travel ranges up to 35mm
  • Acceleration up to 3,5m/s
A-142 Miniature Air Bearing Linear Stage
NEW

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting
  • High performance
  • Possible vertical mounting
  • Motion platform 75mm × 80mm
  • Travel ranges up to 10mm
  • Load capacity to 3kg
NEW

A-143 PIglide Miniature Linear Air Bearing Stage

High Performance • Cleanroom-Compatible • Option for Vertical Mounting
  • High performance
  • Cleanroom compatible
  • Possible vertical mounting
  • Motion platform 85mm × 75mm
  • Travel range 25mm
  • Load capacity to 4kg

A-341 PIglide HGS Hybrid Gantry System

Hybrid Guide Design with Air Bearings and Recirculating Ball Bearing Guides for High Precision with Low Profile.
  • The A-341 gantry system with linear motors and absolute encoders maximizes throughput for applications that require overhead motion.

A-351 MGS Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.
  • The A-351 MGS air bearing hybrid gantry system with linear motors has been designed to maximize throughput for applications that require overhead motion.
NEW

A-352 MGS Large Format Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.

L-310 V6 Precision Z Stage Suitable for Vacuum

Can be Compactly Combined with Linear and Rotation Stages

L-509 V6 • V7 • V9 Vacuum-Compatible Precision Linear Stage

Compact Design, for Loads to 10 kg

LMS-180 Precision Linear Stage

High Dynamics due to Magnetic Direct Drive, Excellent Travel Accuracy

LMS-270 Precision Linear Stage

High Dynamics due to the Magnetic Direct Drive, High Stability

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

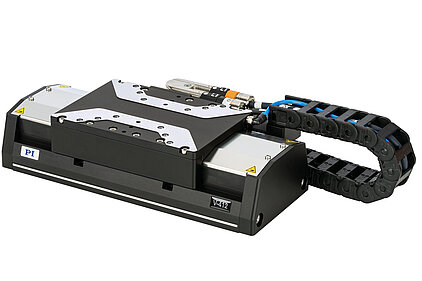

V-412 High-Load Linear Stage

High Performance, Linear Motor
