- Peak power 3 × 14 W
- Position control with notch filter for higher bandwidth and stability
- Voltage / position indicator
- Inexpensive controller for P-611.3S NanoCube® nanopositioning systems
Piezo amplifier and servo controller for the P-611.3S

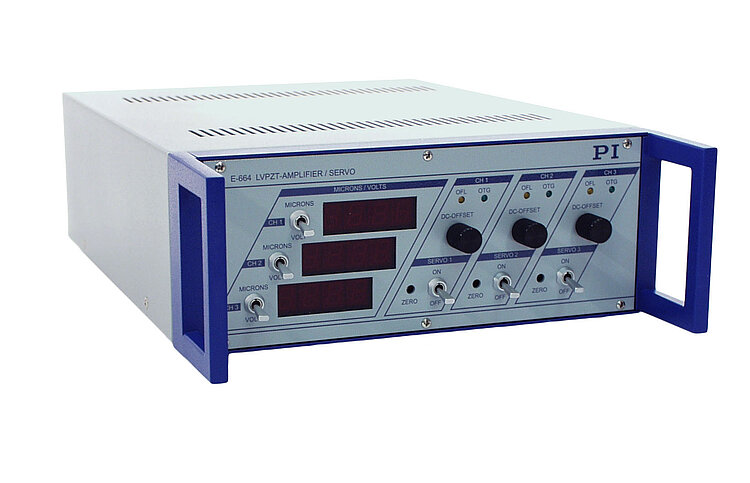

The E-664 piezo amplifier and servo controller is especially tailored to the operating requirements of the P-611.3S NanoCube® XYZ nanopositioning system. Three powerful and low-noise piezo amplifiers and the control electronics with instrument amplifiers for high-resolution strain gauge sensors allow a position resolution up to 2 nm as well as dynamic operation.
The combination of the E-664 controller and P-611.3S NanoCube® makes it an inexpensive system for 3-D nanopositioning.
Short Instruction PZ300
Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx
User Manual PZ99
E-664 Piezo Amplifier / Controller, 3 Channels
