Linear Actuators with Stepper & DC Servo Motors

Linear Actuators with Stepper & DC Servo Motors

Motorized linear actuators are indispensable in automation routines from industrial production to adjustment in research laboratories.

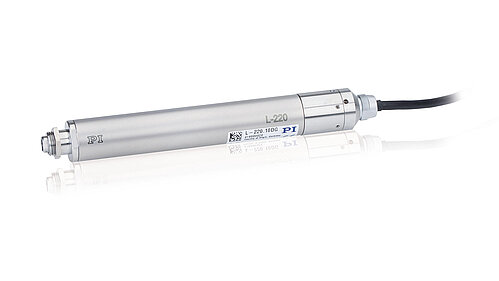

L-220 High-Resolution Linear Actuator

Suitable for High Cycle Numbers
  • Travel range: 13 mm to 77 mm
  • Drive force: 125 N
  • Bidirectional repeatability: 2 µm
  • Max. velocity: to 3.5 mm/s

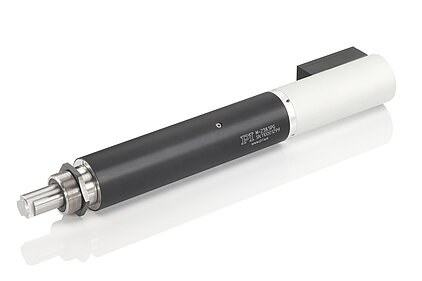

M-238 High-Load Linear Actuator

Dynamic, High-Resolution Precision Drive with DC Motor and Direct Position Measuring
  • Travel range: 50 mm
  • Drive force: 400 N
  • Unidirectional repeatability: to 0.3 µm
  • Max. velocity: 30 mm/s

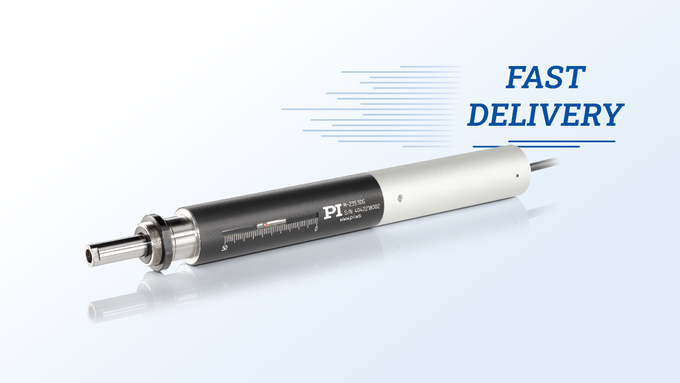

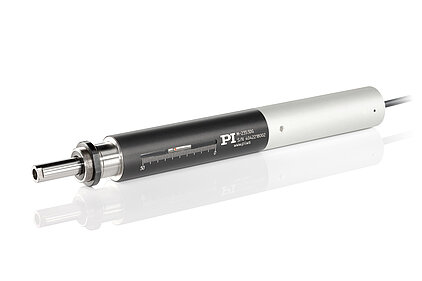

M-235 High-Resolution Linear Actuator with DC Motor

Highly dynamic, high forces up to 120 N
  • Travel range: 20 mm to 50 mm
  • Drive force: to 120 N
  • Unidirectional repeatability: to 0.1 µm
  • Max. velocity: to 30 mm/s

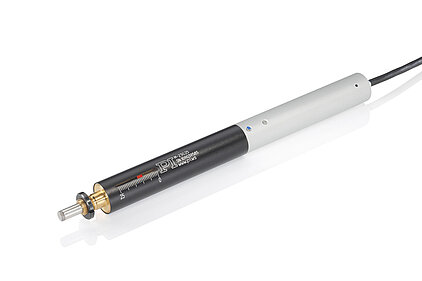

M-230 High-Resolution Linear Actuator, DC or Stepper Motor

Nonrotating Tip, Limit Switches
  • Travel range: 10 mm to 25 mm
  • Drive force: to 70 N
  • Unidirectional repeatability: 0.1 µm
  • Max. velocity: to 1.2 mm/s

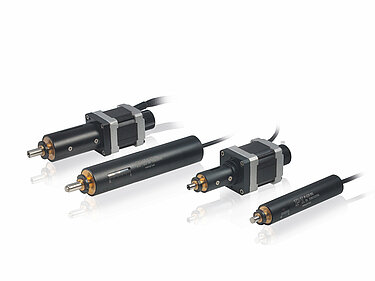

M-228 • M-229 High-Resolution Linear Actuator with Stepper Motor

Compact and Particularly Inexpensive
  • Travel range: 10 mm to 25 mm
  • Drive force: to 80 N
  • Unidirectional repeatability: 2 µm
  • Max. velocity: to 4 mm/s

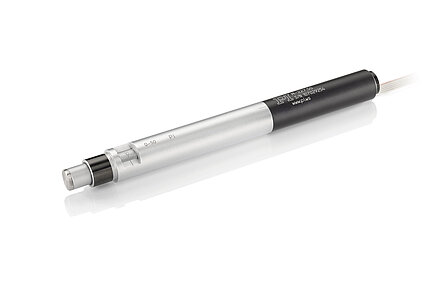

M-227 High-Resolution Linear Actuator with DC Motor

With Optional Piezo Drive
  • Travel range: 10 mm to 50 mm
  • Drive force: 40 N
  • Unidirectional repeatability: 0.1 µm
  • Max. velocity: 0.75 mm/s
