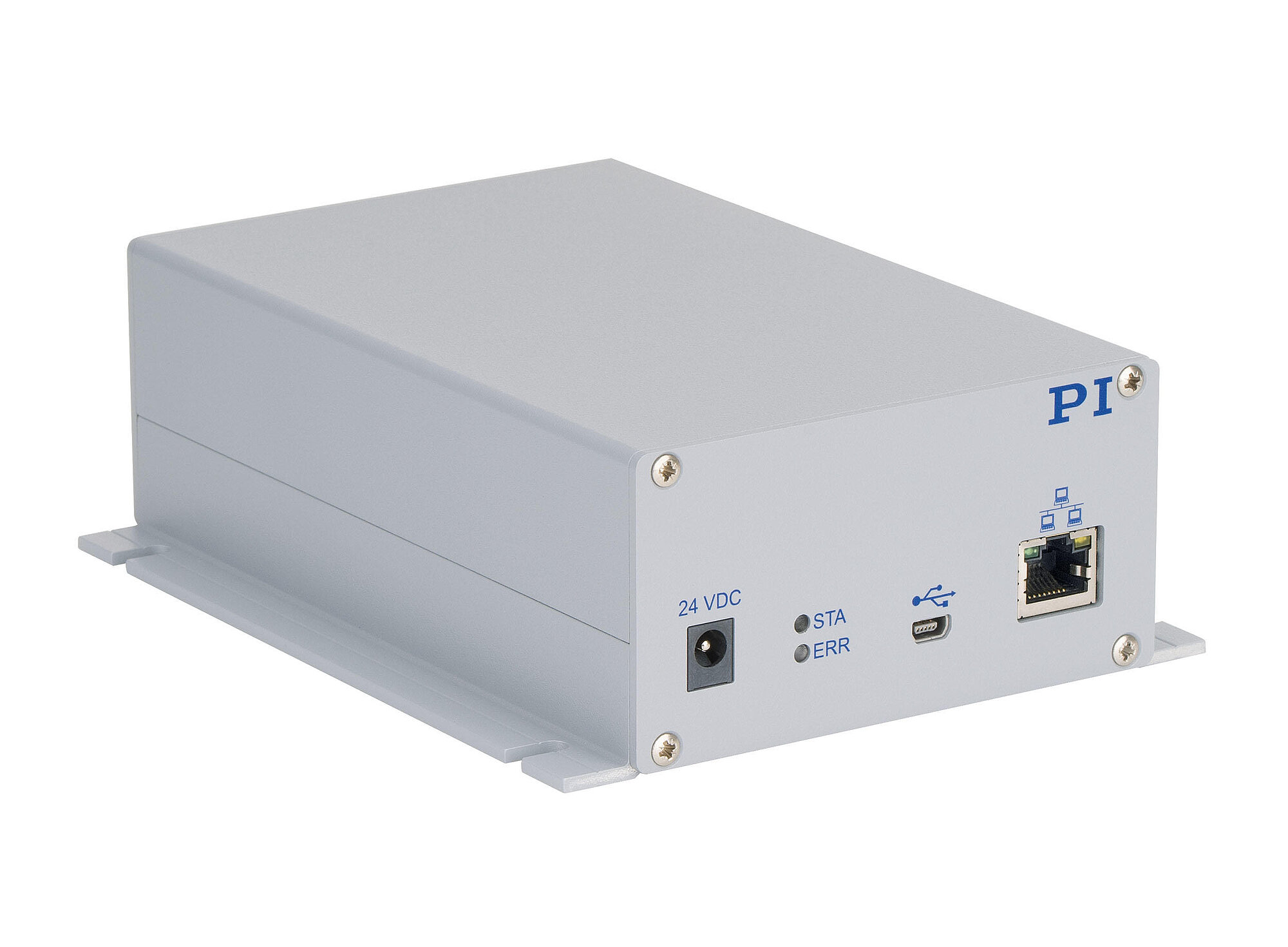

E-135 PIRest Drive Electronics

Control of up to 6 PIRest Active Shims

  • Easy readjustment of machines at inaccessible locations
  • Control of up to 6 PIRest active shims
  • Independent adaptation of operating parameters to the ambient conditions
  • ID chip detection for automatic configuration of operating parameters
  • Interfaces: TCP/IP, USB
E-135 PIRest Drive Electronics
Product Description Specifications Downloads Quote / Order

Long-term stable positioning with PIRest active shims

The PIRest drive electronics are only necessary during the adjustment process of the PIRest compensating actuators. Once displaced, actuators with PIRest technology hold their position stable without permanent control voltage. Nanometer precision, maintenance-friendly and inexpensive adjustments are possible even at inaccessible locations. Up to 6 actuators can be connected and adjusted one after each other.

High user-friendliness due to automatic configuration

Important operating parameters are stored on the mechanic's ID chip and are read out automatically when the electronics are switched on. The operating parameters are adapted to the ambient conditions independently during the adjusting procedure.

Easy integration and handling

All PIRest active shims are equipped with a Sub-D connector. The cable for connecting to the drive electronics is available in several variants und must therefore be ordered separately. A PC controls the drive electronics via an Ethernet or USB interface. Software support is included in the scope of delivery.

Application fields

  • Set-and-forget applications
  • Adaptive mechanics
  • Drift compensation
  • Adjustment of optical components
  • Precision mechanics
  • Static precision positioning
  • Metrology and interferometry
