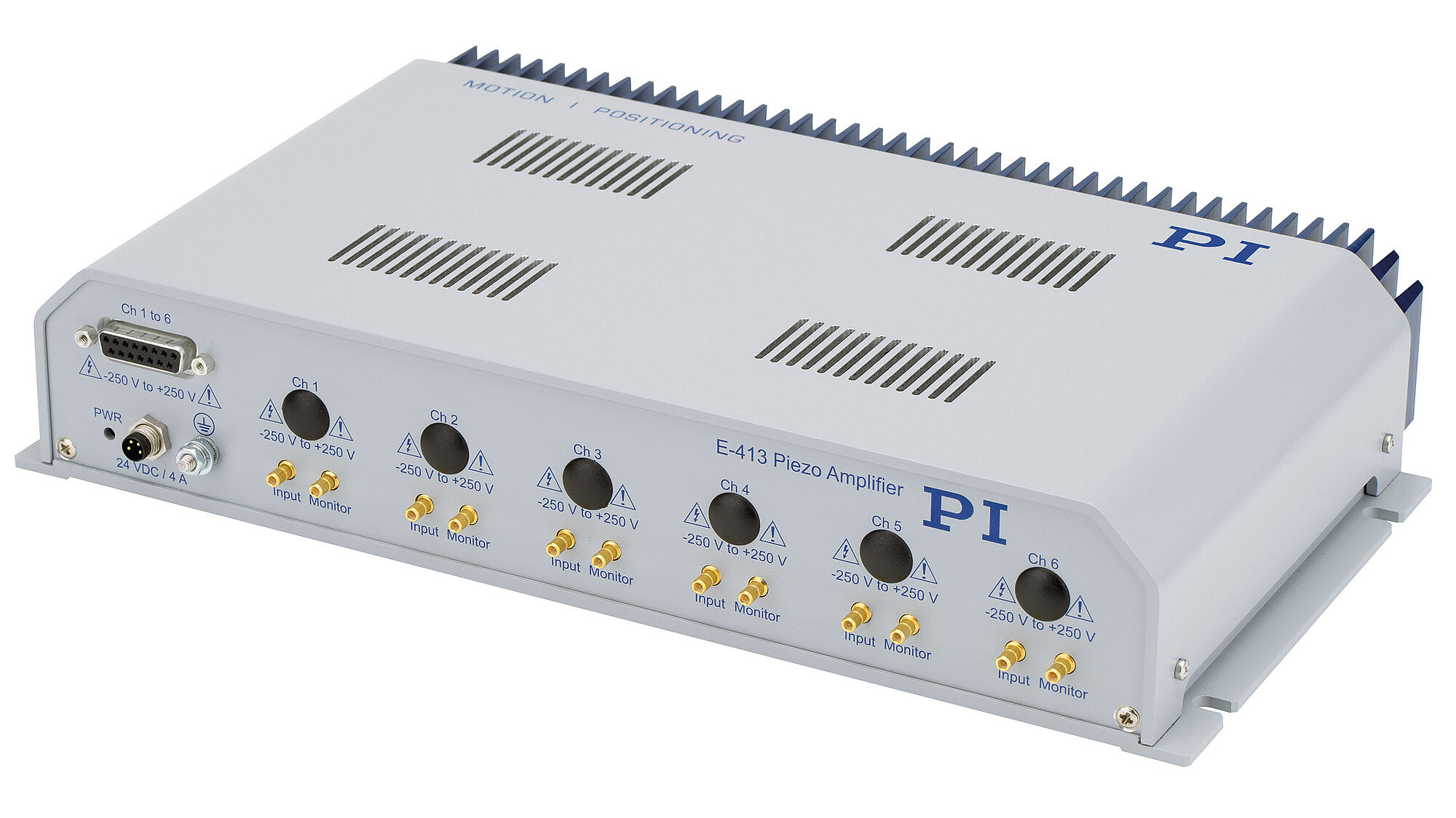

E-413.2 - E-413.6 Multi-Channel Piezo Amplifier

For Piezo Tubes and PICA Shear Actuators

E-413.2 - E-413.6 Multi-Channel Piezo Amplifier
Product Description Specifications Downloads Quote / Order
  • Low-noise piezo amplifier
  • Peak power up to 50 W
  • Bipolar operation
  • Output voltage -250 to 250 V
  • Ideally adapted for scanner tubes
  • Output voltage monitoring

Piezo tube ("scanner tube") control

Depending on the version, the E-413 amplifier can control a piezo tube in two or three directions of motion. The possible directions of motion of a piezo tube depend on the number of its electrode segments.

Control of up to six piezo actuators

The amplifier is also available as a version for controlling up to six individual piezo actuators with bipolar operating voltage such as PICA Shear or Picoactuator®.

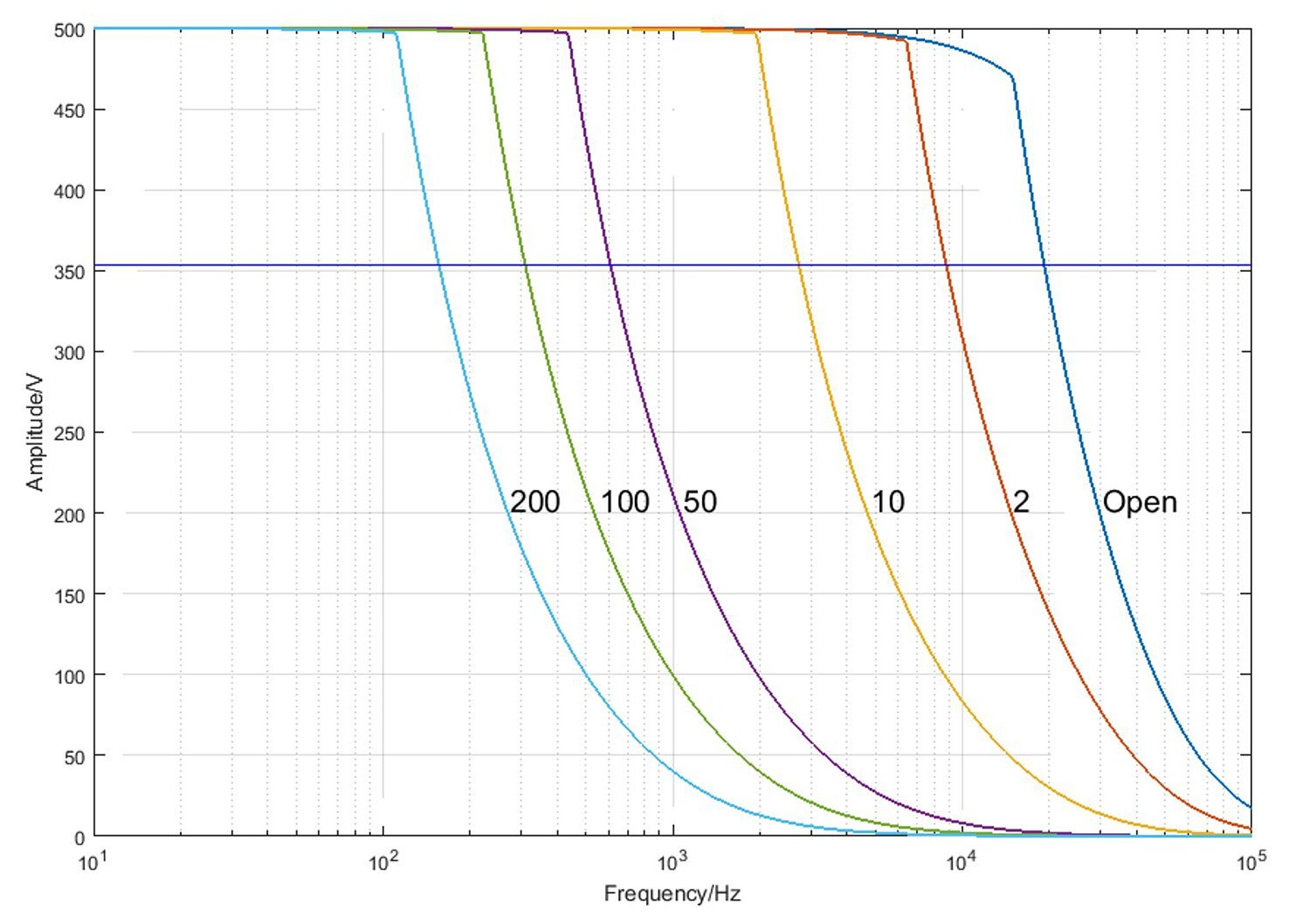

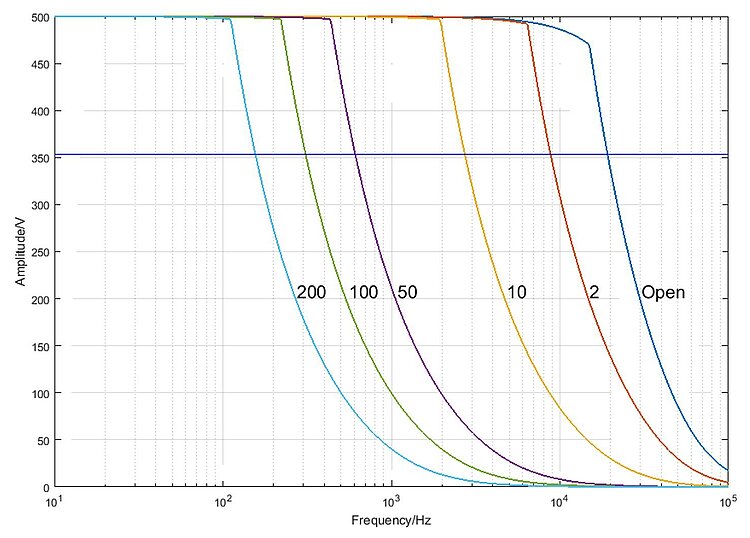

Voltage range and control signal

Low noise and precision in static and dynamic operation. Peak currents up to 100 mA per channel at -250 to +250 V. Output voltage control via analog input signal -10 to +10 V with gain value of 25. Control signal generation possible with PC via D/A converter and PI driver set for use with NI LabVIEW software.

Interfaces

Control signals, monitor signals: SMB. Voltage outputs: D-sub 15 (f)

Scope of delivery

Delivery includes 24 V wide input range power supply.

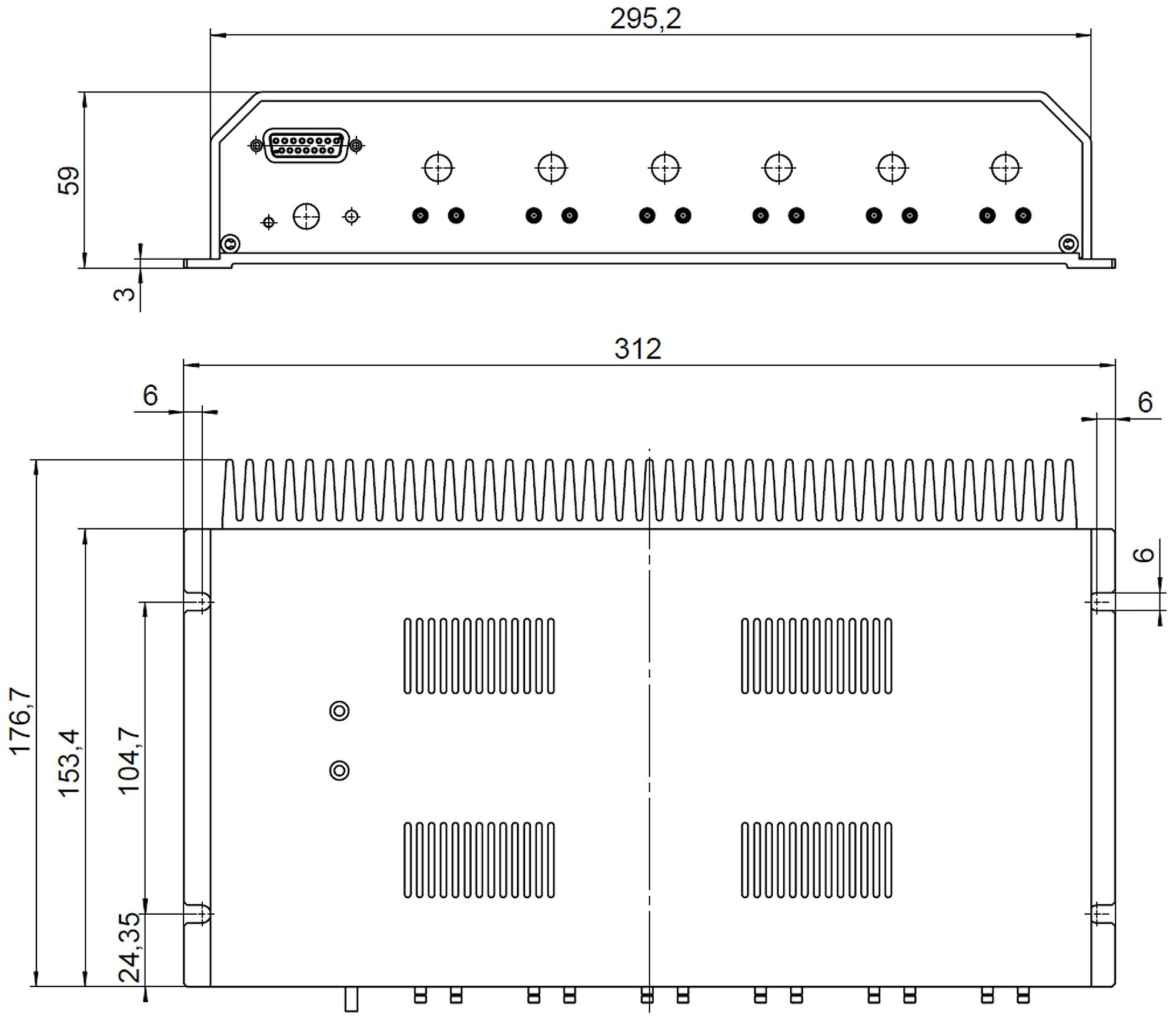

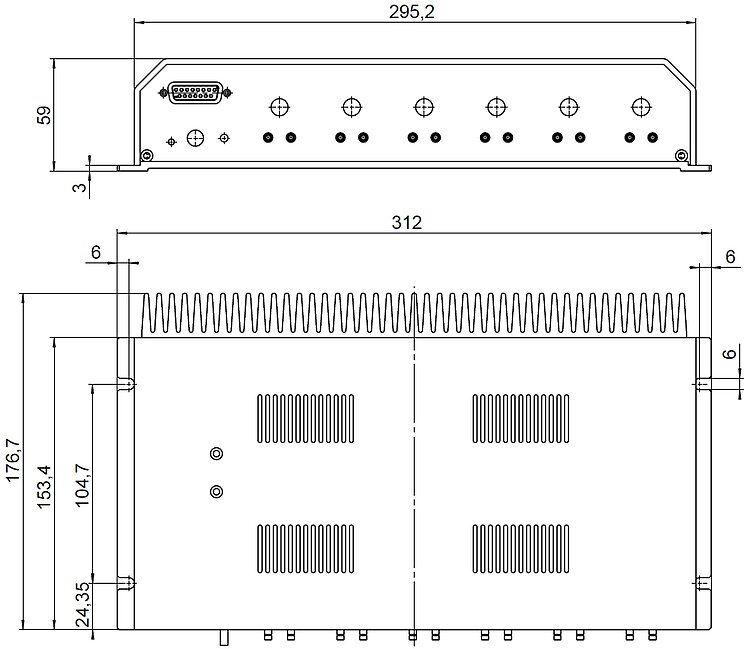

Specifications

Datasheet

Datasheet E-413.2-6

Version / Date
2019-05-08
Version / Date
2019-05-08
Document language
pdf - 337 KB
pdf - 338 KB

Downloads

Datasheet

Datasheet

Datasheet E-413.2-6

Version / Date
2019-05-08
Version / Date
2019-05-08
Document language
pdf - 337 KB
pdf - 338 KB

Documentation

Documentation

User Manual PZ296

E-413.30, .20, .6x, .4x Piezo Amplifier
Version / Date
1.2.0 2019-05-08
Version / Date
1.2.0 2019-05-08
Document language
pdf - 845 KB
pdf - 864 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
