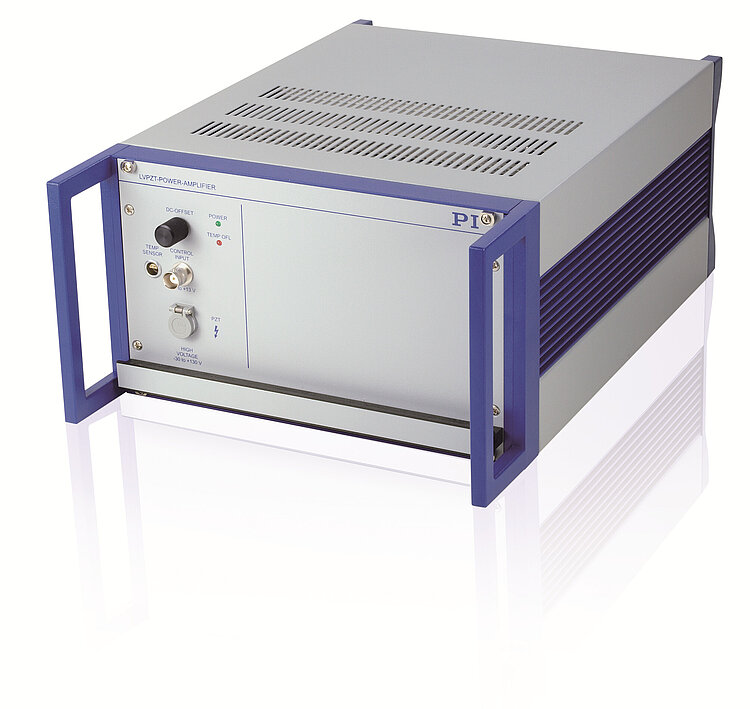

E-618 High-Power Piezo Amplifier / Servo Controller

High Currents, High Dynamics

E-618 High-Power Piezo Amplifier / Servo Controller
Product Description Specifications Downloads Quote / Order
  • Peak current 20 A
  • Rise times in the microsecond range
  • 15 kHz bandwidth for high dynamics applications
  • Overheat protection for piezo actuators with temperature sensor

Piezo amplifier module for particularly fast rise times

High peak current, 0.8 A continuous current. High bandwidth for high dynamics. Suitable for PICMA® piezo actuators with special contacts. Output voltage -30 to 130 V. Analog control. Evaluation of temperature sensor protects the piezo actuator against overheating.

Optional servo controller upgrade

Optional E-509 control module for strain gauge sensors. Optional E-518 interface module with wave generator, data recorder, digital interfaces. Optional accessories: NI LabVIEW driver set E-500.ACD for D/A converter boards from National Instruments

Fields of application

  • Fast switching applications in valves or pumps
  • Microstructure analysis
  • Active vibration absorber

Specifications

Datasheet E-618

Version / Date
2018-06-19
Version / Date
2018-06-19
Version / Date
2018-07-10
Document language
pdf - 353 KB
pdf - 355 KB
pdf - 755 KB

Downloads

Datasheet

Datasheet E-618

Version / Date
2018-06-19
Version / Date
2018-06-19
Version / Date
2018-07-10
Document language
pdf - 353 KB
pdf - 355 KB
pdf - 755 KB

Documentation

User Manual PZ221

E-618 High-Power Piezo Amplifier / Controller
Version / Date
2010-06-23
Document language English
pdf - 629 KB
