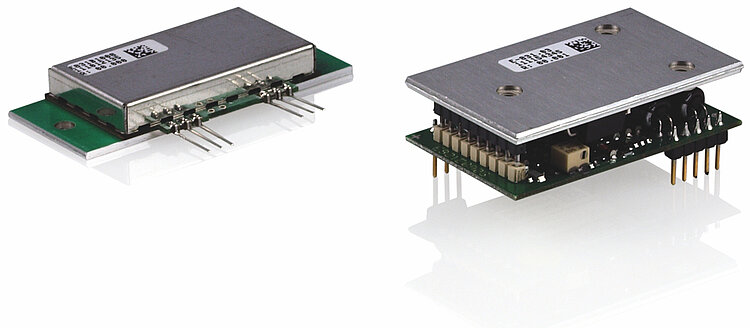

E-831 Piezo Amplifier Module

Low-Cost Module with Separate Power Adapter

  • Compact piezo power amplifier
  • Peak current up to 250 mA
  • Inexpensive
  • Low noise, high stability
  • Easy integration
  • Short-circuit proof, full overcurrent and overtemperature protection
E-831 Piezo Amplifier Module
Product Description Specifications Downloads Quote / Order

Single channel piezo amplifier module

Compact OEM module. Various models for different dynamic requirements. Power supply using external power adapter, also customer's own

Functions

Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V, depending on the power adapter used. Monitor output 1 : 100. Overtemperature protection. Solder pins for PCB mounting

Optional power adapter modules

E-841 and E-842 power adapter modules with varied performance ranges. Suitable for supplying up to three E-831 piezo amplifiers. Custom power adapters on request

Specifications

Datasheet

Datasheet E-831

Version / Date
2019-12-12
pdf - 804 KB
Version / Date
2019-12-12
pdf - 807 KB
Version / Date
2021-01-19
pdf - 533 KB

Downloads

Datasheet

Datasheet

Datasheet E-831

Version / Date
2019-12-12
pdf - 804 KB
Version / Date
2019-12-12
pdf - 807 KB
Version / Date
2021-01-19
pdf - 533 KB

Documentation

Documentation

User Manual PZ143

E-841 / E-842 LVPZT Power Supply Modules

Version / Date
1.3.0 2012-01-16
pdf - 307 KB
English
Documentation

User Manual PZ151

E-831.02 OEM Piezo Amplifier Module, 1 Channel

Version / Date
2007-01-31
pdf - 157 KB
English
Documentation

User Manual PZ191

E-831.03 OEM Piezo Amplifier Module, 1 Channel

Version / Date
2007-01-29
pdf - 161 KB
English
Documentation

User Manual PZ235

E-831.05 Piezo Amplifier, Miniature OEM Module, 1 Channel, -30 to 130 V

Version / Date
2012-03-06
pdf - 224 KB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
