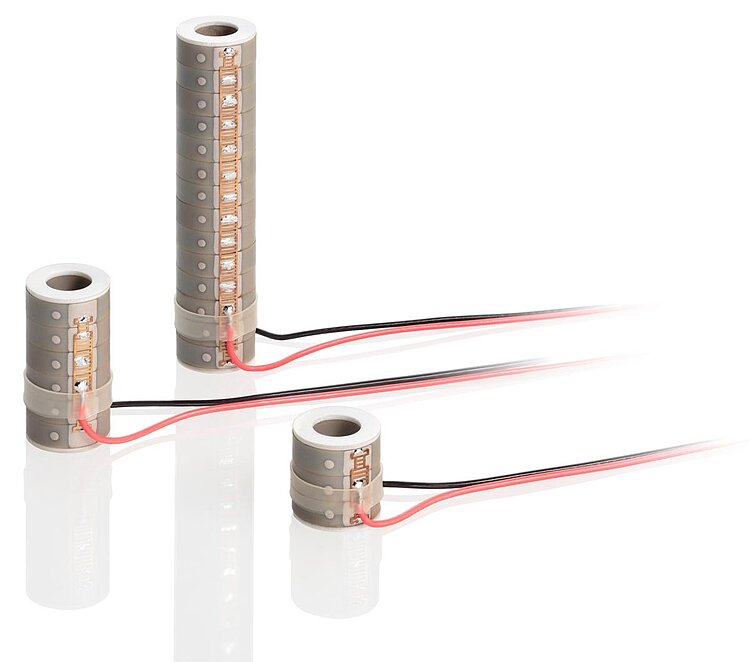

P-080 PICMA® Stack Multilayer Ring Actuator

With Inner Hole

  • Inner hole for preload or as aperture for optical applications
  • Superior lifetime
  • Ideal for dynamic operation
  • Microsecond response
  • Subnanometer resolution
  • UHV-compatible to 10-9 hPa
P-080 PICMA® Stack Multilayer Ring Actuator
Product Description Specifications Downloads Quote / Order

Multilayer stack actuators

Flexible travel range up to 30 µm. Round cross section for easy integration.

UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature.

PICMA® piezo linear actuators

Low operating voltage -20 to 100 V. Ceramic insulation. High reliability, long lifetime.

Possible modifications

Different heights, fast mounting according to customer requirements. Variety of shapes. Precision-ground end plates for reduced tolerances

Fields of application

Industry and research. For laser tuning, microdispensing, life sciences.

Specifications

Datasheet

Datasheet P-080

Version / Date
2023-12-13
pdf - 387 KB
Version / Date
2023-12-13
pdf - 392 KB

Downloads

Datasheet

Datasheet

Datasheet P-080

Version / Date
2023-12-13
pdf - 387 KB
Version / Date
2023-12-13
pdf - 392 KB

Documentation

Documentation

User Manual PZ259

P-882 – P-888 PICMA® Stack multilayer piezo actuators, P-080 PICMA® Stack multilayer ring actuators with inner hole, P-088 PICMA® Stack multilayer piezo actuators, round cross section

Version / Date
1.1.0 2021-09-27
pdf - 3 MB
Version / Date
1.1.0 2021-09-27
pdf - 3 MB
Documentation

Short Instructions PZ264

PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender

Version / Date
3.0.0 04/2020
pdf - 826 KB
Version / Date
3.0.0 04/2020
pdf - 761 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-080.310

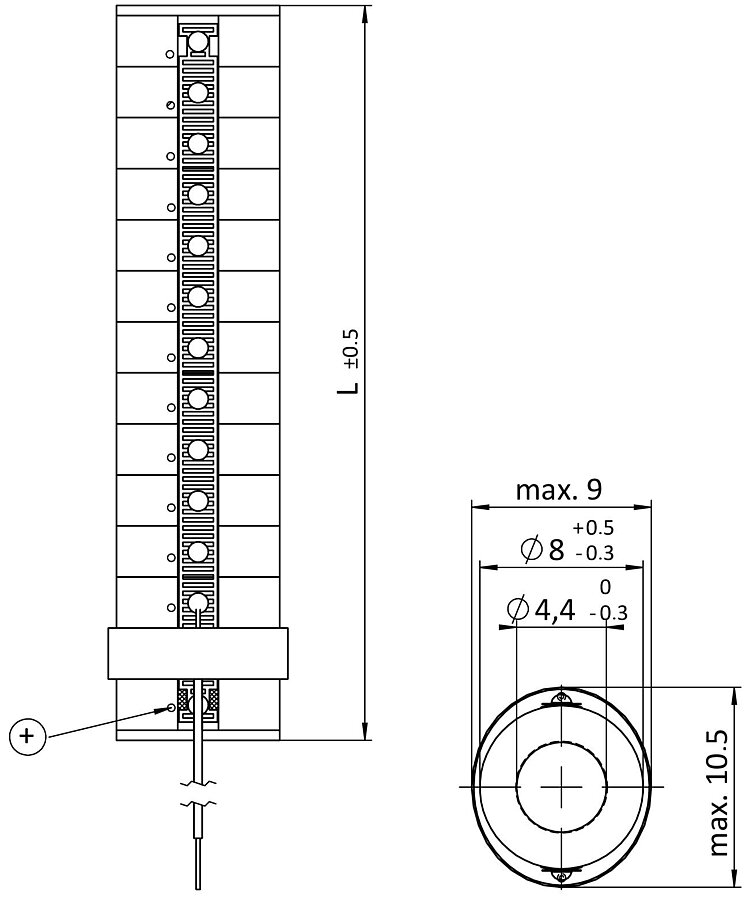

PICMA® Stack multilayer ring actuator; PICMA® piezo actuator drive; 5.5 µm travel range (open loop); 8 mm × 4.4 mm × 8.5 mm (OD × ID × L); 800 N feed force; vacuum-compatible to 10-9 hPa; solderable contacts

P-080.311

PICMA® Stack multilayer ring actuator; PICMA® piezo actuator drive; 5.5 µm travel range (open loop); 8 mm × 4.4 mm × 8.5 mm (OD × ID × L); 800 N feed force; vacuum-compatible to 10-9 hPa; connecting wires, PTFE-insulated, AWG 30, Ø 0.61 mm; cable length 0.1 m

P-080.340

PICMA® Stack multilayer ring actuator; PICMA® piezo actuator drive; 11 µm travel range (open loop); 8 mm × 4.4 mm × 16 mm (OD × ID × L); 825 N feed force; vacuum-compatible to 10-9 hPa; solderable contacts

P-080.341

PICMA® Stack multilayer ring actuator; PICMA® piezo actuator drive; 11 µm travel range (open loop); 8 mm × 4.4 mm × 16 mm (OD × ID × L); 825 N feed force; vacuum-compatible to 10-9 hPa; connecting wires, PTFE-insulated, AWG 30, Ø 0.61 mm; cable length 0.1 m

P-080.390

PICMA® Stack multilayer ring actuator; PICMA® piezo actuator drive; 25 µm travel range (open loop); 8 mm × 4.4 mm × 36 mm (OD × ID × L); 850 N feed force; vacuum-compatible to 10-9 hPa; solderable contacts

P-080.391

PICMA® Stack multilayer ring actuator; PICMA® piezo actuator drive; 25 µm travel range (open loop); 8 mm × 4.4 mm × 36 mm (OD × ID × L); 850 N feed force; vacuum-compatible to 10-9 hPa; connecting wires, PTFE-insulated, AWG 30, Ø 0.61 mm; cable length 0.1 m
