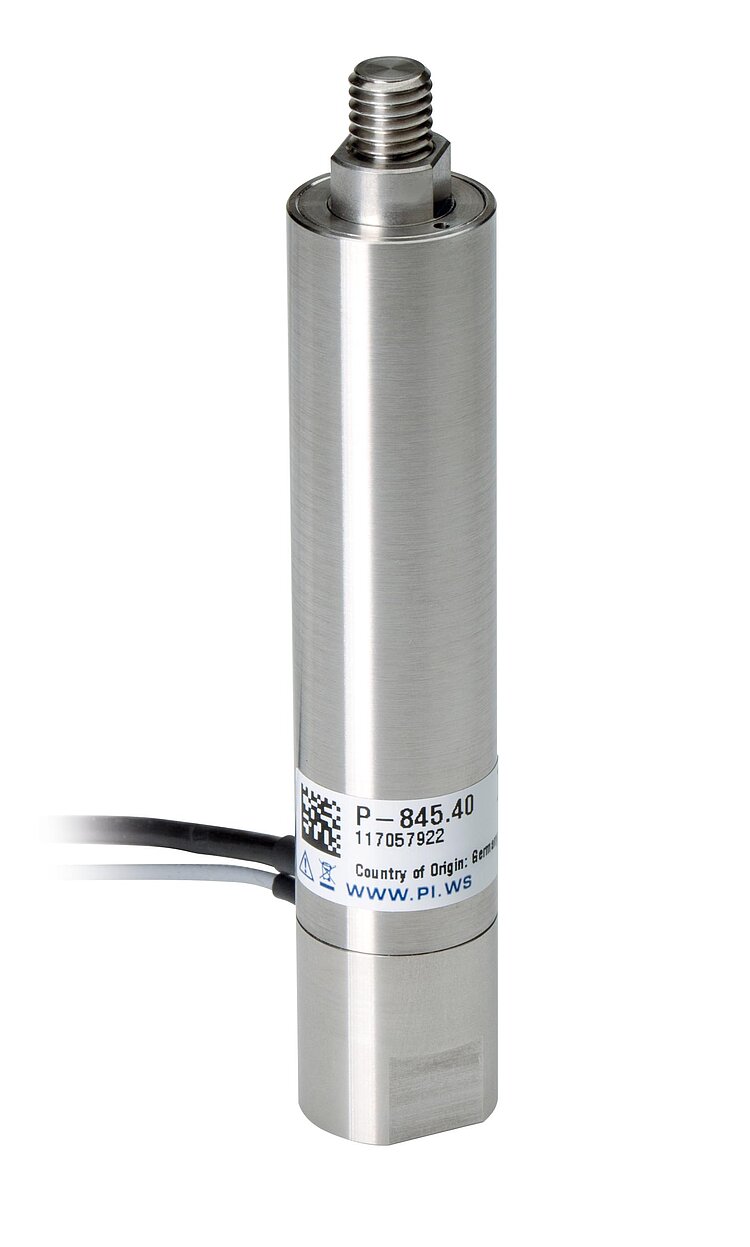

P-845 Preloaded Piezo Actuators

For Very High Loads and Forces, with Position Sensor

  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Push force capacity to 3000 N
  • Pull force capacity to 700 N
  • µs response time
  • Subnanometer resolution
P-845 Preloaded Piezo Actuators
Product Description Specifications Downloads Quote / Order

Application fields

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

Datasheet

Datasheet P-845

Version / Date
2024-01-09
pdf - 521 KB
Version / Date
2024-01-09
pdf - 522 KB
Version / Date
2018-10-15
pdf - 686 KB

Downloads

Product Note

Product Note

Product Change Notification P-8XX.XX

Version / Date
2023-02-22
pdf - 92 KB
Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date
2021-04-19
pdf - 377 KB
English

Datasheet

Datasheet

Datasheet P-845

Version / Date
2024-01-09
pdf - 521 KB
Version / Date
2024-01-09
pdf - 522 KB
Version / Date
2018-10-15
pdf - 686 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

Version / Date
1.2.0 11/2020
pdf - 958 KB
Version / Date
1.2.0 11/2020
pdf - 961 KB
Documentation

User Manual P845M0001

P-845 Preloaded piezo actuators

Version / Date
2021-01-29
pdf - 2 MB
Version / Date
2021-01-29
pdf - 2 MB
Documentation

User Manual P845M0002

P-845.xxV Preloaded piezo actuators (vacuum versions)

Version / Date
2021-02-23
pdf - 3 MB
Version / Date
2021-02-23
pdf - 3 MB

3-D Models

3-D Models

P-845 3D-Model

zip - 92 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

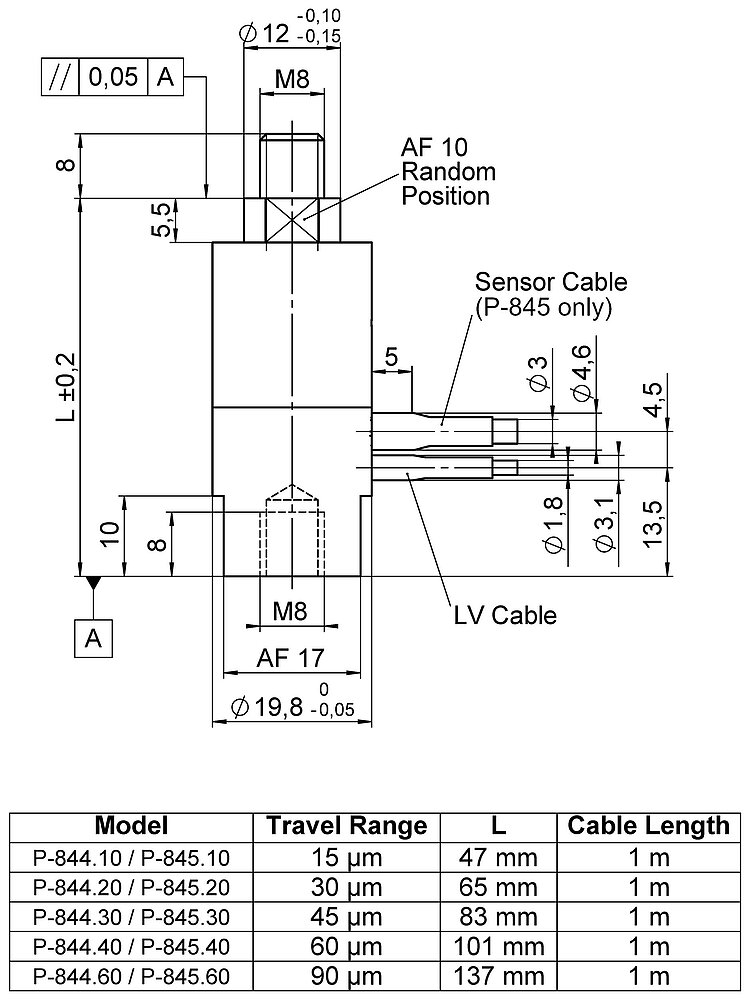

P-845.10

Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range; 47 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-845.20

Preloaded piezo actuator; PICMA® piezo actuator drive; 30 µm travel range; 65 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-845.30

Preloaded piezo actuator; PICMA® piezo actuator drive; 45 µm travel range; 83 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-845.40

Preloaded piezo actuator; PICMA® piezo actuator drive; 60 µm travel range; 101 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-845.60

Preloaded piezo actuator; PICMA® piezo actuator drive; 90 µm travel range; 137 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length
