P-131 PIRest Actuators

Active Shims with Nanometer Resolution and Long-Term Stability

P-131 PIRest Actuators
Product Description Specifications Downloads Quote / Order
  • Long-term stability without permanent power supply
  • Easy readjustment of machines at inaccessible locations
  • Avoids time-consuming manual adjusting processes
  • Nanometer resolution and micrometer displacement
  • Load capacity up to 4000 N per actuator
  • Temperature sensor

Fields of application

  • Set-and-forget applications
  • Adaptive mechanics
  • Drift compensation
  • Alignment of optical components
  • Precision mechanics
  • Static precision positioning
  • Metrology / interferometry

Long-term stable positioning without permanent power supply

Once displaced, actuators with PIRest technology hold their position stable without permanent control voltage. Nanometer precision, maintenance-friendly and inexpensive adjustments are possible even at inaccessible locations.

High user-friendliness due to automatic configuration

Important operating parameters are stored on the mechanic's ID chip and are read out automatically when the electronics are switched on.

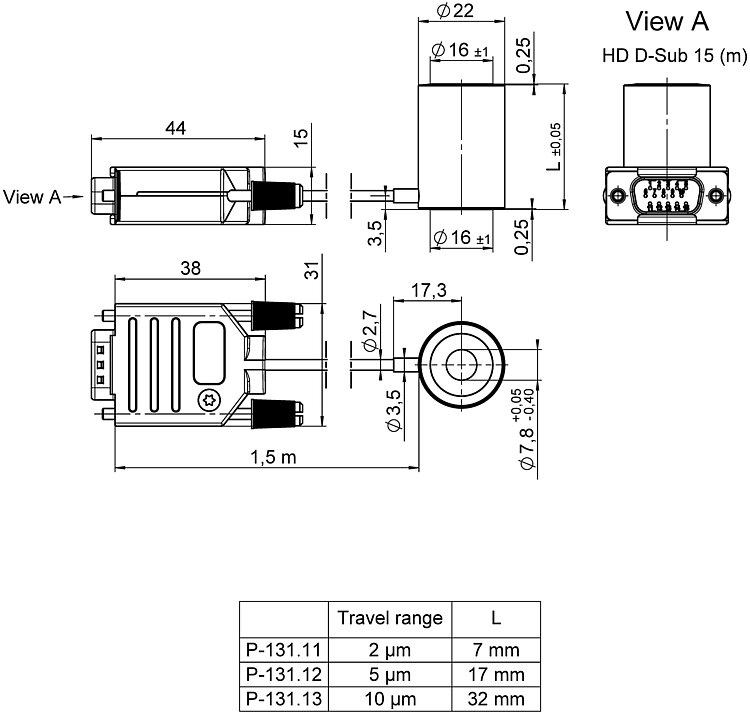

Specifications

Datasheet P-131

Version / Date
2018-08-21
Version / Date
2018-08-21
Version / Date
2018-10-23
Version / Date
2018-10-23
Document language
pdf - 694 KB
pdf - 695 KB
pdf - 624 KB
pdf - 595 KB

Downloads

Datasheet

Datasheet P-131

Version / Date
2018-08-21
Version / Date
2018-08-21
Version / Date
2018-10-23
Version / Date
2018-10-23
Document language
pdf - 694 KB
pdf - 695 KB
pdf - 624 KB
pdf - 595 KB

Documentation

User Manual PZ291

P-131.11 PIRest Active Shim
Version / Date
2018-09-28
Version / Date
2018-09-28
Document language
pdf - 2 MB
pdf - 2 MB

User Manual PZ292

P-131.12 PIRest Active Shim
Version / Date
2018-09-28
Version / Date
2018-09-28
Document language
pdf - 2 MB
pdf - 2 MB

User Manual PZ293

P-131.13 PIRest Active Shim
Version / Date
2018-09-28
Version / Date
2018-09-28
Document language
pdf - 2 MB
pdf - 2 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

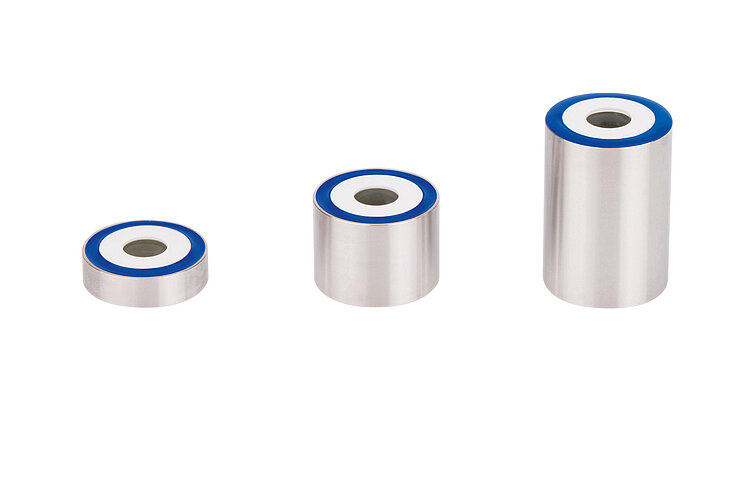

PIRest active shims

Selected product - Immediately available
P-131.11 NEW!
PIRest active shim, 2 µm travel range
Selected product - Immediately available
P-131.12 NEW!
PIRest active shim, 5 µm travel range
Selected product - Immediately available
P-131.13 NEW!
PIRest active shim, 10 µm travel range

Accessories (please order separately)

Selected product - Immediately available
E-815.AK200 NEW!
PIRest adapter cable, 2 channels, 2 × HD Sub-D 15 (f) to HD Sub-D 15 (m), 0.5 m
Selected product - Immediately available
E-815.AK300 NEW!
PIRest adapter cable, 3 channels, 3 × HD Sub-D 15 (f) to HD Sub-D 15 (m), 0.5 m
Selected product - Immediately available
E-815.AK600 NEW!
PIRest adapter cable set, 6 channels, consisting of 2 × E-815.AK300 (channels 1 to 3 and channels 4 to 6)
