6239500057
Precision linear stage; ironless 3-phase linear motor; 304 mm (12 '') travel range; 500 N load capacity; 800 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak
This product has been replaced by the following new product:
Stages with Magnetic Direct-Drive Linear Motor

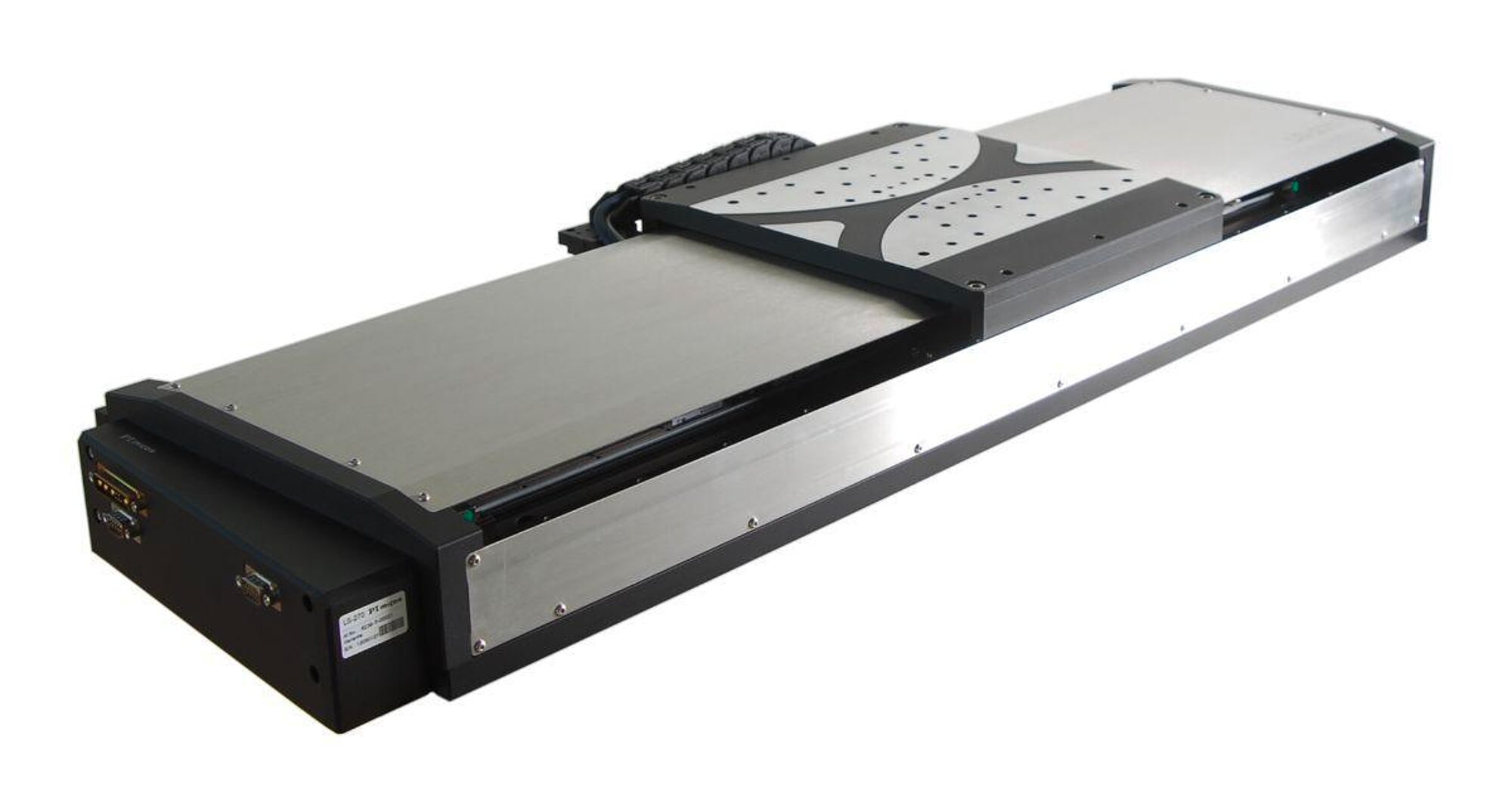

LMS-270 Precision Linear Stage
High Dynamics due to the Magnetic Direct Drive, High Stability
- Travel ranges to 1016 mm (40 '')
- Velocity to 800 mm/s
- Incremental encoder with 15 nm resolution
- 480 N peak force
LMS-270

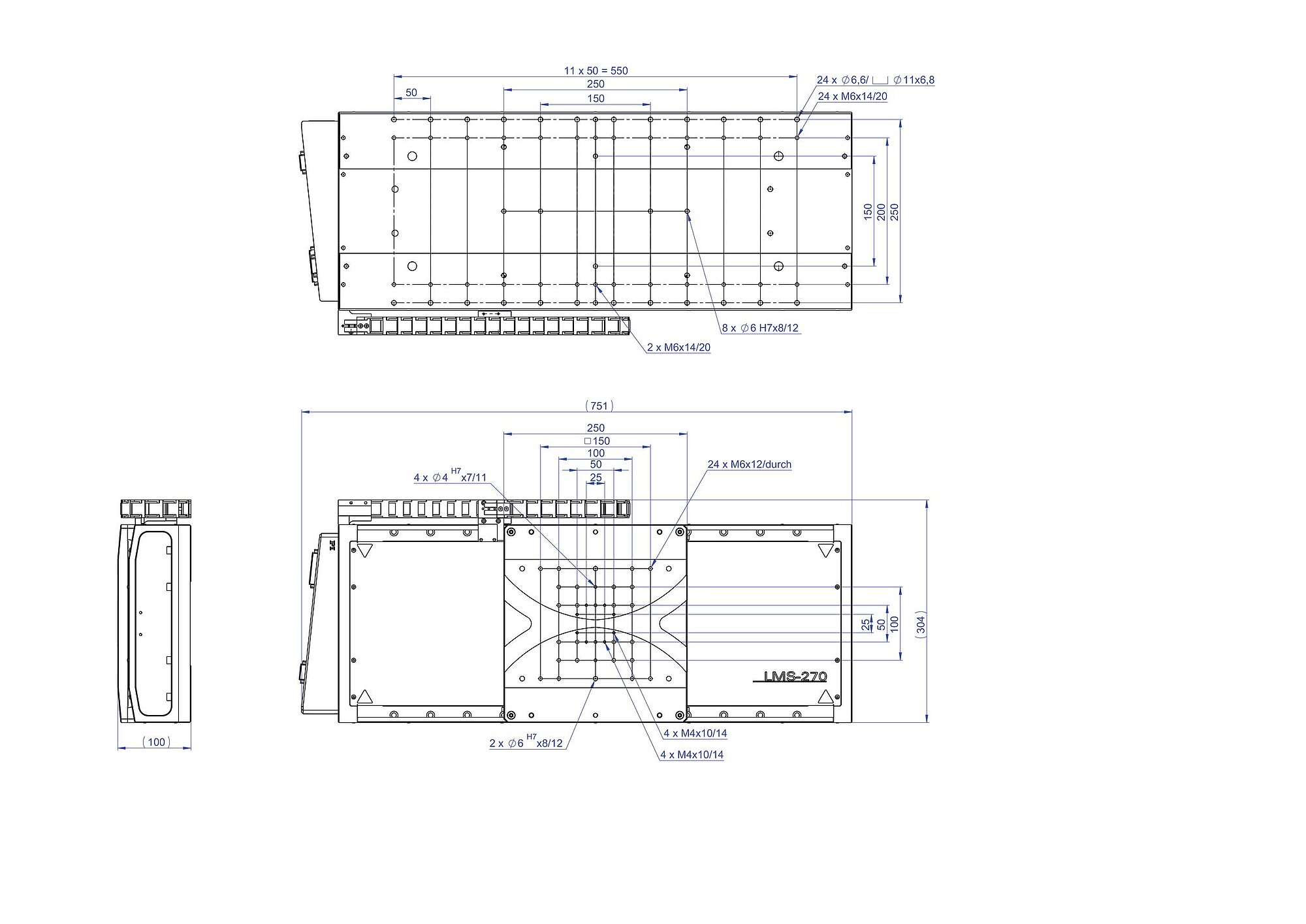

6239500057, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

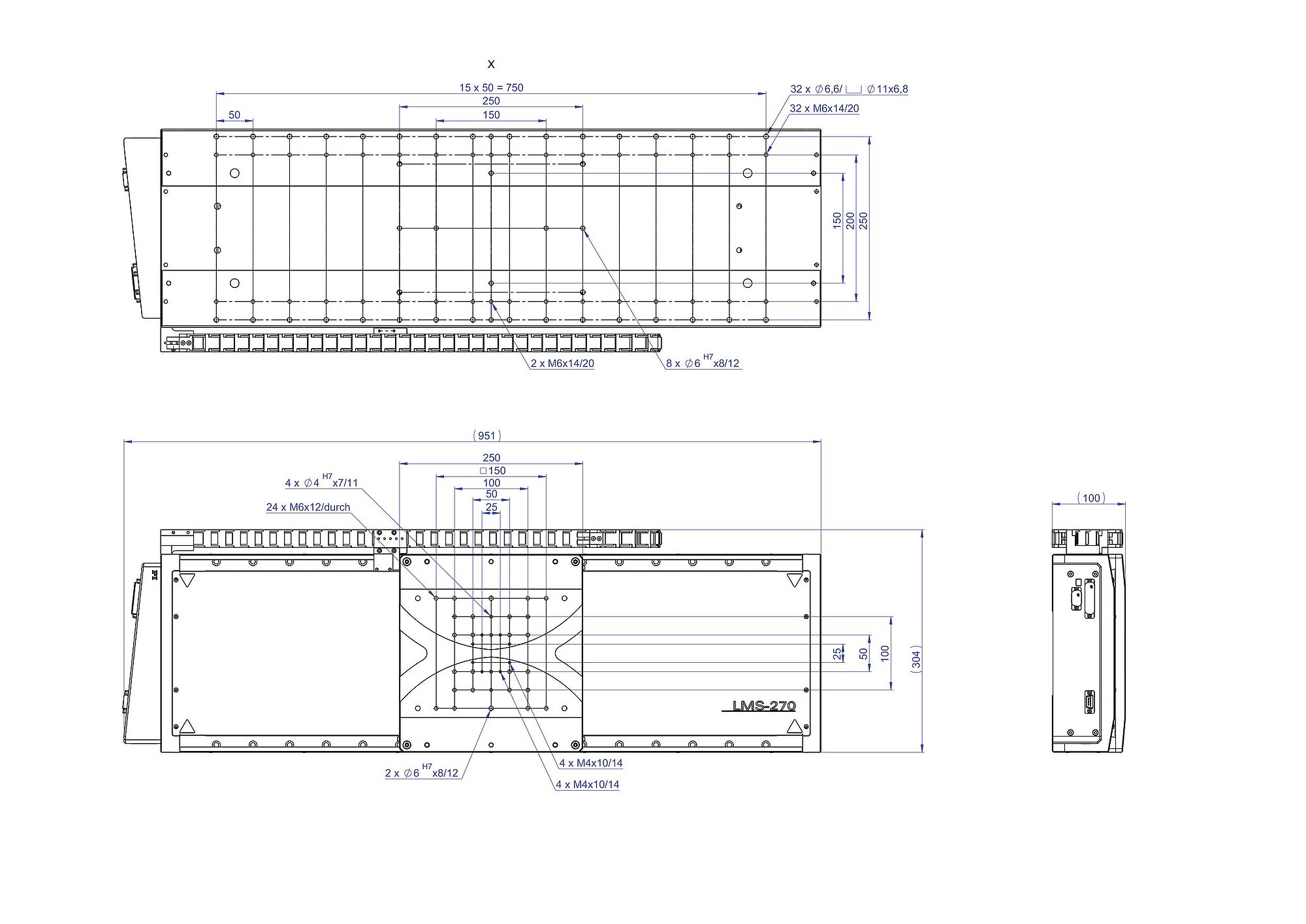

6239500021, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

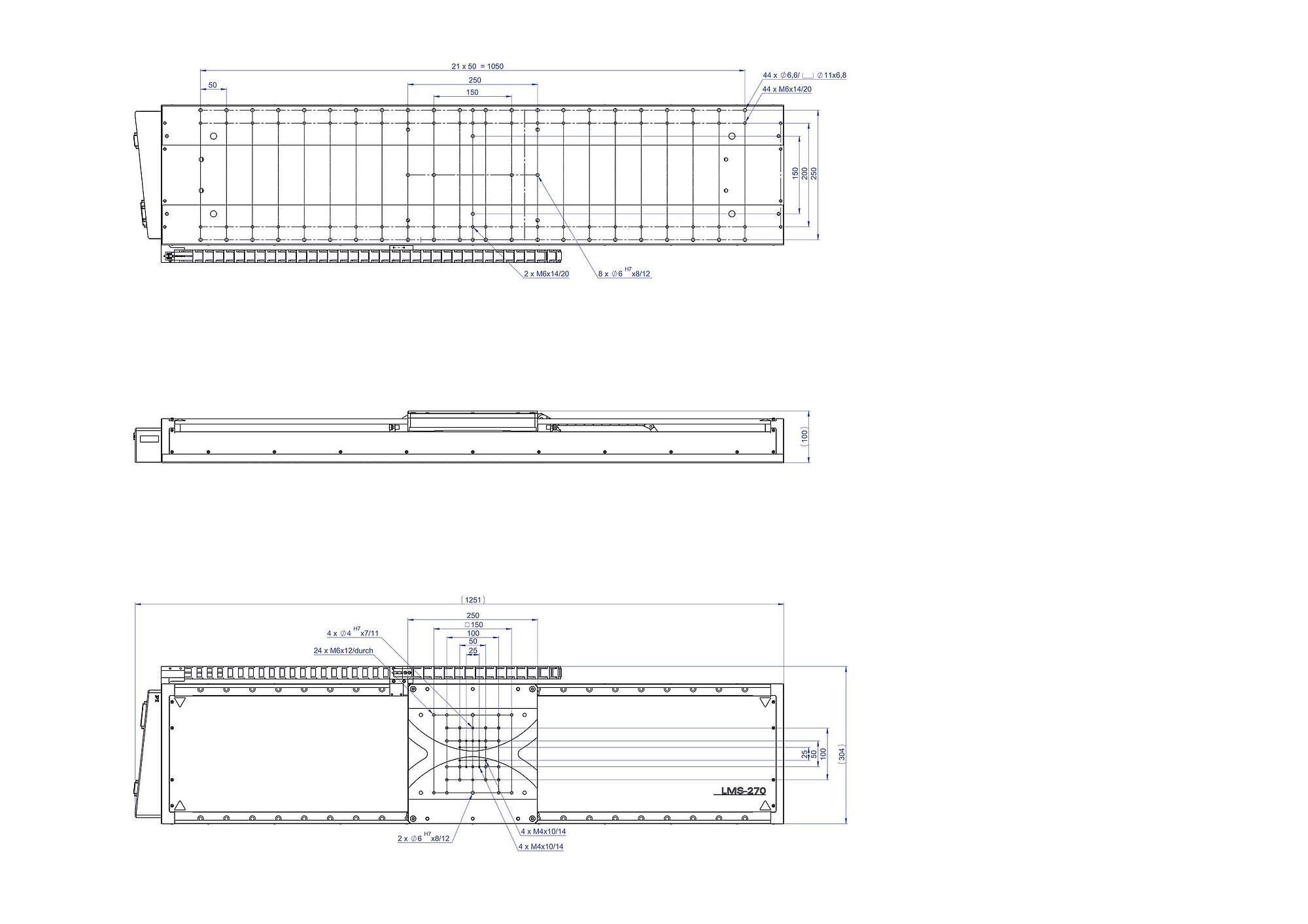

6239500058, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

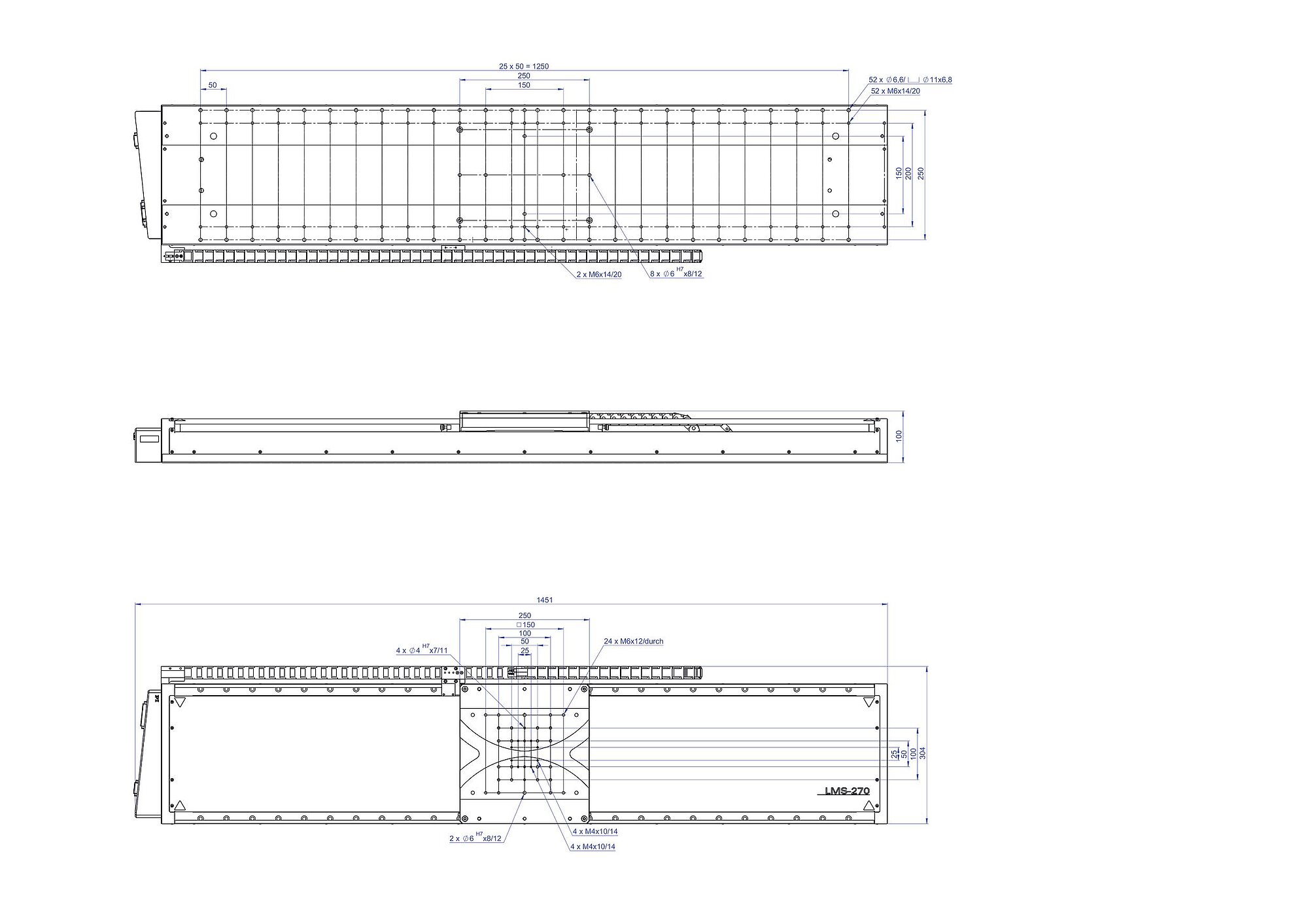

6239500059, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
LMS-270 Precision Linear Stage
Product Description
Specifications
Downloads
Quote / Order
Reference-class linear stage
High travel accuracy. Inductive limit switches. High position resolution due to incremental encoder with analog signal transmission (sin/cos, 1 Vpp).
Versions with DC servo motors or stepper motors are available with the same footprint.
Magnetic direct drive
Ironless magnetic direct drive for high velocity and acceleration. High position resolution.
Application fields
Industry and research. Metrology, precision scanning in in semiconductor or electronics manufacturing.
Specifications
Specifications
Select a travel range:
| Motion | 6239500057 | 6239500021 | 6239500058 | 6239500059 | Tolerance |
|---|---|---|---|---|---|
| Active axes | X | X | X | X | |
| Travel range in X | 304 mm | 508 mm | 813 mm | 1016 mm | |
| Maximum velocity in X, unloaded | 800 mm/s | 800 mm/s | 800 mm/s | 800 mm/s | |
| Straightness (Linear crosstalk in Y with motion in X) | ± 3 µm | ± 4 µm | ± 7 µm | ± 10 µm | typ. |
| Flatness (Linear crosstalk in Z with motion in X) | ± 3 µm | ± 4 µm | ± 7 µm | ± 10 µm | typ. |
| Pitch (Rotational crosstalk in θY with motion in X) | ± 40 µrad | ± 80 µrad | ± 100 µrad | ± 120 µrad | typ. |
| Yaw (Rotational crosstalk in θZ with motion in X) | ± 20 µrad | ± 30 µrad | ± 40 µrad | ± 50 µrad | typ. |
| Positioning | 6239500057 | 6239500021 | 6239500058 | 6239500059 | Tolerance |
| Minimum incremental motion in X | 0.05 µm | 0.05 µm | 0.05 µm | 0.05 µm | typ. |
| Positioning accuracy in X, uncalibrated | ± 70 µm | ± 70 µm | ± 70 µm | ± 70 µm | typ. |
| Unidirectional repeatability in X | ± 0.0375 µm | ± 0.0375 µm | ± 0.0375 µm | ± 0.0375 µm | typ. |
| Bidirectional repeatability in X | 0.3 µm | 0.3 µm | 0.3 µm | 0.3 µm | typ. |
| Limit switches | Inductive | Inductive | Inductive | Inductive | |
| Integrated sensor | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder | |
| Sensor signal | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | |
| Sensor resolution | 15 nm | 15 nm | 15 nm | 15 nm | |
| Drive Properties | 6239500057 | 6239500021 | 6239500058 | 6239500059 | Tolerance |
| Drive type | Ironless 3-phase linear motor | Ironless 3-phase linear motor | Ironless 3-phase linear motor | Ironless 3-phase linear motor | |
| Nominal voltage | 48 V | 48 V | 48 V | 48 V | |
| Nominal current, RMS | 3.7 A | 3.7 A | 3.7 A | 3.7 A | typ. |
| Peak current, RMS | 17.5 A | 17.5 A | 17.5 A | 17.5 A | typ. |
| Drive force in X | 100 N | 100 N | 100 N | 100 N | typ. |
| Peak force in X | 480 N | 480 N | 480 N | 480 N | |
| Force constant | 27.5 N/A | 27.5 N/A | 27.5 N/A | 27.5 N/A | |
| Resistance phase-phase | 1.28 Ω | 1.28 Ω | 1.28 Ω | 1.28 Ω | typ. |
| Inductance phase-phase | 1 mH | 1 mH | 1 mH | 1 mH | |
| Back EMF phase-phase | 22.5 V·s/m | 22.5 V·s/m | 22.5 V·s/m | 22.5 V·s/m | max. |
| Pole pitch N-N | 42 mm | 42 mm | 42 mm | 42 mm | |
| Mechanical Properties | 6239500057 | 6239500021 | 6239500058 | 6239500059 | Tolerance |
| Permissible push force in Y | 500 N | 500 N | 500 N | 500 N | max. |
| Permissible push force in Z | 500 N | 500 N | 500 N | 500 N | max. |
| Moved mass in X, unloaded | 2500 g | 2500 g | 2500 g | 2500 g | |
| Guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | |
| Overall mass | 35000 g | 42000 g | 51000 g | 61000 g | |
| Material | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | |
| Miscellaneous | 6239500057 | 6239500021 | 6239500058 | 6239500059 | Tolerance |
| Operating temperature range | 10 to 50 °C | 10 to 50 °C | 10 to 50 °C | 10 to 50 °C | |
| Connector | D-sub 9W4 (m) | D-sub 9W4 (m) | D-sub 9W4 (m) | D-sub 9W4 (m) | |
| Sensor connector | D-sub 9-pin (m) | D-sub 9-pin (m) | D-sub 9-pin (m) | D-sub 9-pin (m) | |
| Recommended controllers / drivers | ACS modular controller | ACS modular controller | ACS modular controller | ACS modular controller | |
| Connector for temperature sensor | HD D-sub 15-pin (m) | HD D-sub 15-pin (m) | HD D-sub 15-pin (m) | HD D-sub 15-pin (m) |
Downloads
Datasheet
Documentation
Documentation
User Manual LMS270UM0001
LMS-270 Linear stage with direct drive
Version / Date
2023-12-05
pdf - 3 MB
Version / Date
2023-12-05
pdf - 3 MB
3D Models
3D Models
62395000xx 3D Model
Version / Date
2023-04-05
zip - 9 MB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
6239500021
Precision linear stage; ironless 3-phase linear motor; 508 mm (20 '') travel range; 500 N load capacity; 800 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak
6239500058
Precision linear stage; ironless 3-phase linear motor; 813 mm (32 '') travel range; 500 N load capacity; 800 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak
6239500059
Precision linear stage; ironless 3-phase linear motor; 1016 mm (40 '') travel range; 500 N load capacity; 800 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak
