L-812 High-Load Linear Stage

Stepper or Servo Motor • Spindle Drive • Cost Effective

  • Width 114 mm, travel range to 610 mm
  • Precision ball screw, load capacity to 50 kg
  • Stepper or servo motor
  • Compact design thanks to models with folded drivetrain
  • Models with holding brake for vertical mounting

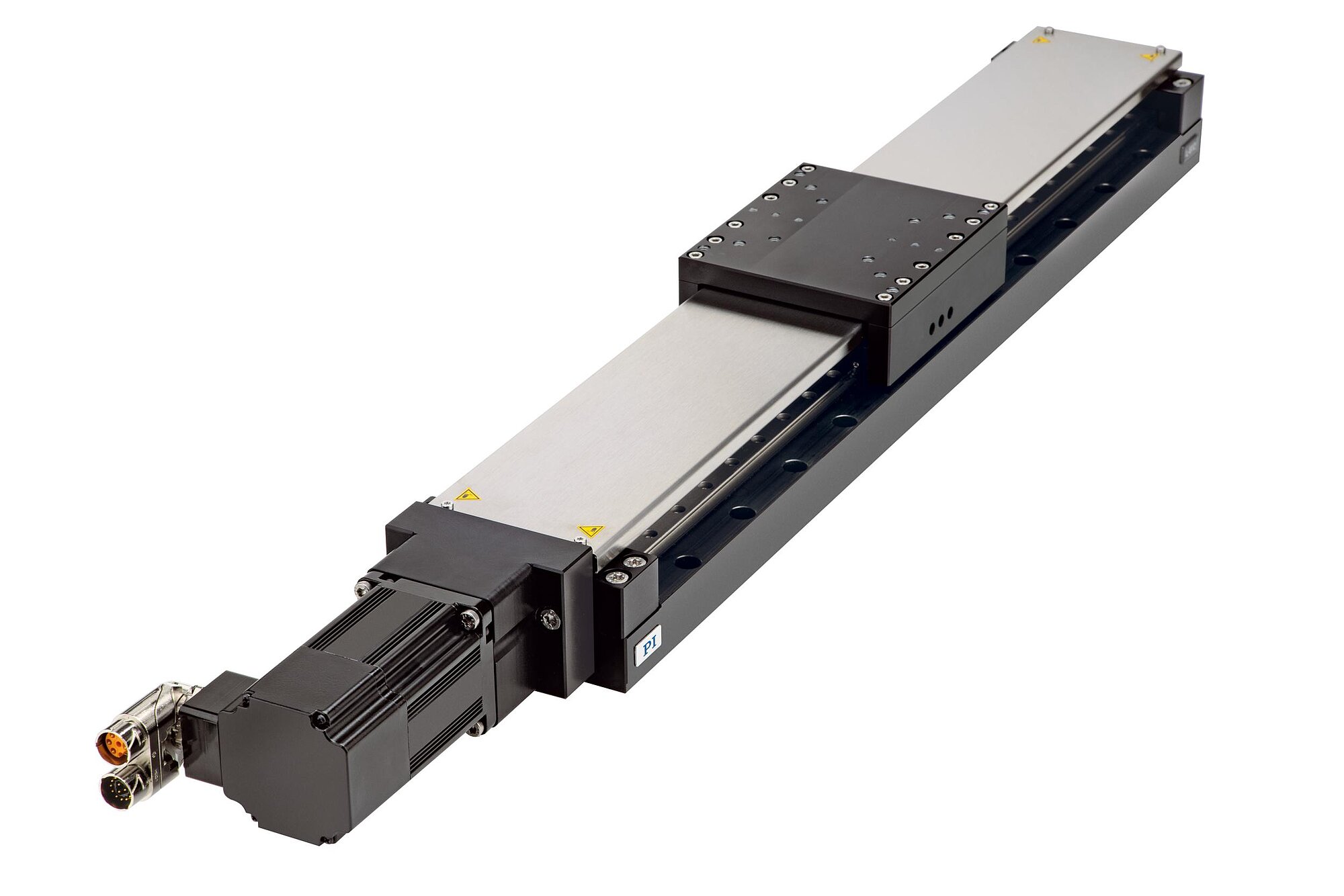

L-812 High-Load Linear Stage
Product Description Specifications Downloads Quote / Order

Powerful linear stage for use in demanding industrial applications

Precision ball screws, high-performance stepper or synchronous servo motors, heavy-duty recirculating ball bearings, and precision rotary encoders enable continuous and reliable operation under high load. The optional holding brake allows use as Z axis. The ball screw can be relubricated from the outside without disassembling to ensure high reliability and long lifetimes.

Pioneering design

The recirculating ball bearing guides of the L-812 series are designed for high load capacity and dynamics. The high resolution of the motors allows improved tracking performance, smaller tracking errors, and improved settling times.

Synchronous servo motor

These motors have high positioning accuracy and high overload capacity over a large rotation speed range. High torque and low inertia ensure the high dynamics of the drives. The long lifetime, high performance, and robustness of these motors allow excellent results in industrial automation applications.

Stepper motor

Powerful and low-vibration 2-phase stepper motors allow for accurate positioning even without position control.

Options

  • Stepper or synchronous servo motor
  • holding brake
  • Rotary encoder, incremental or absolute-measuring

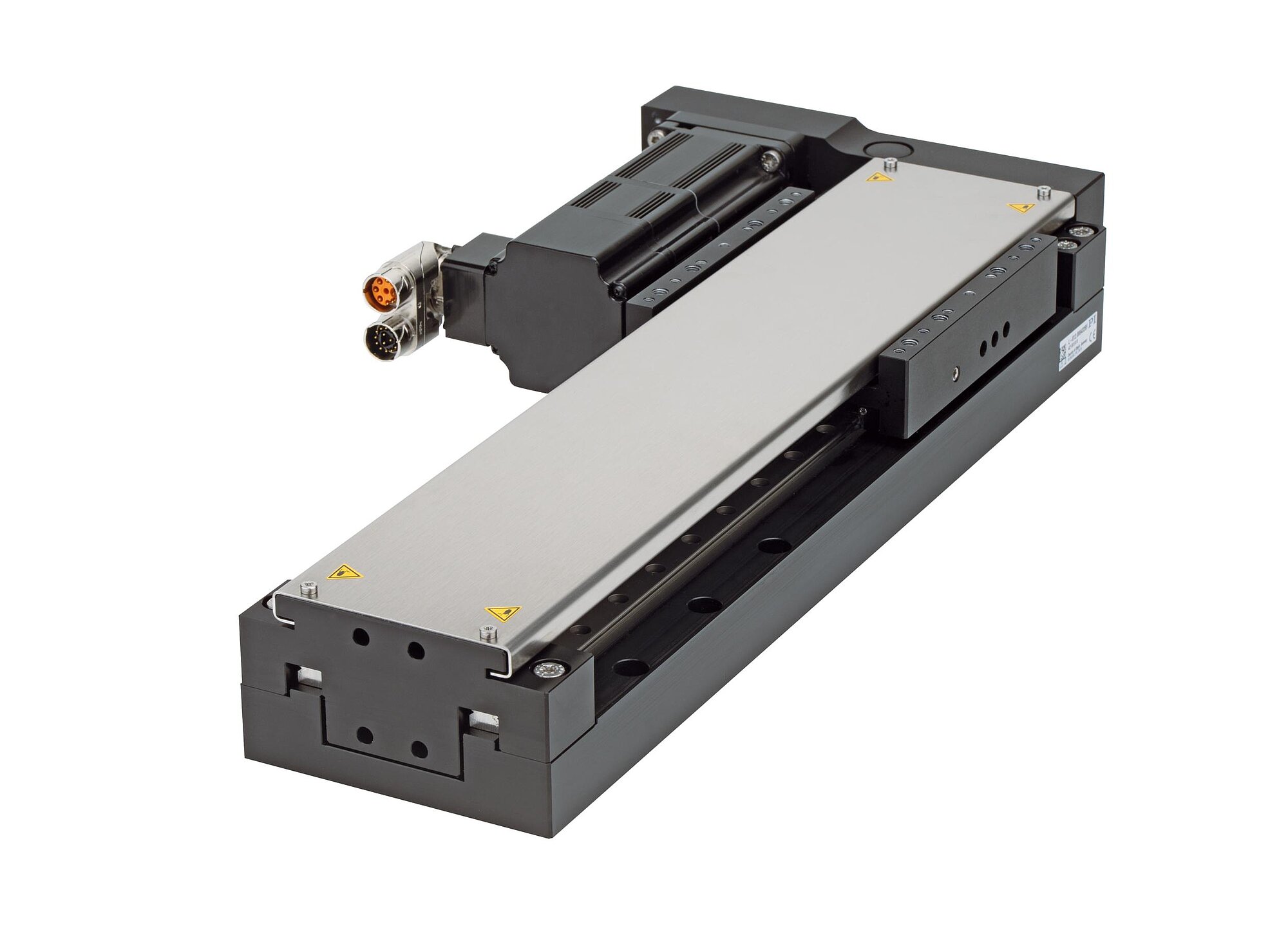

  • Folded drivetrain for reducing the overall length

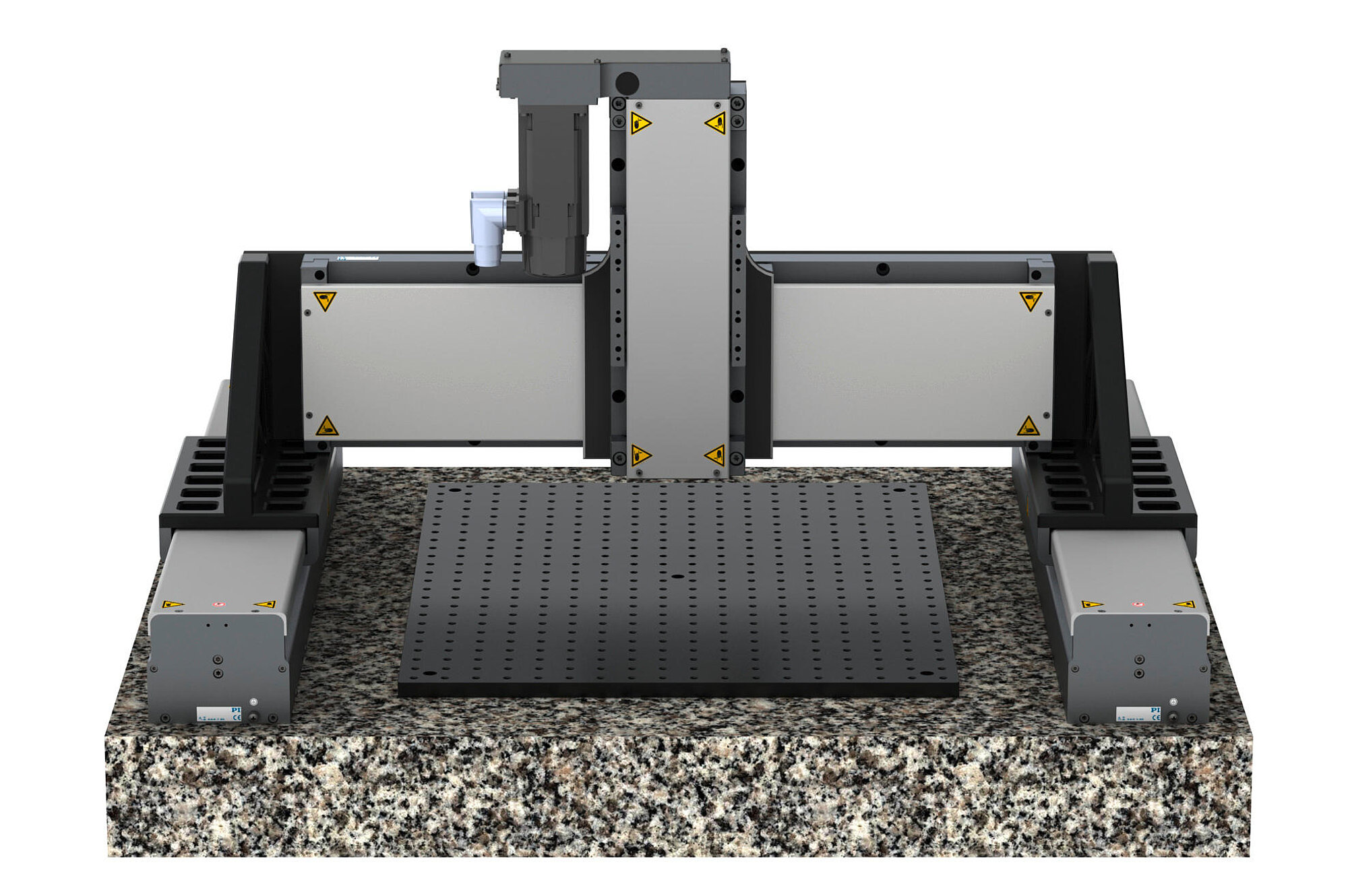

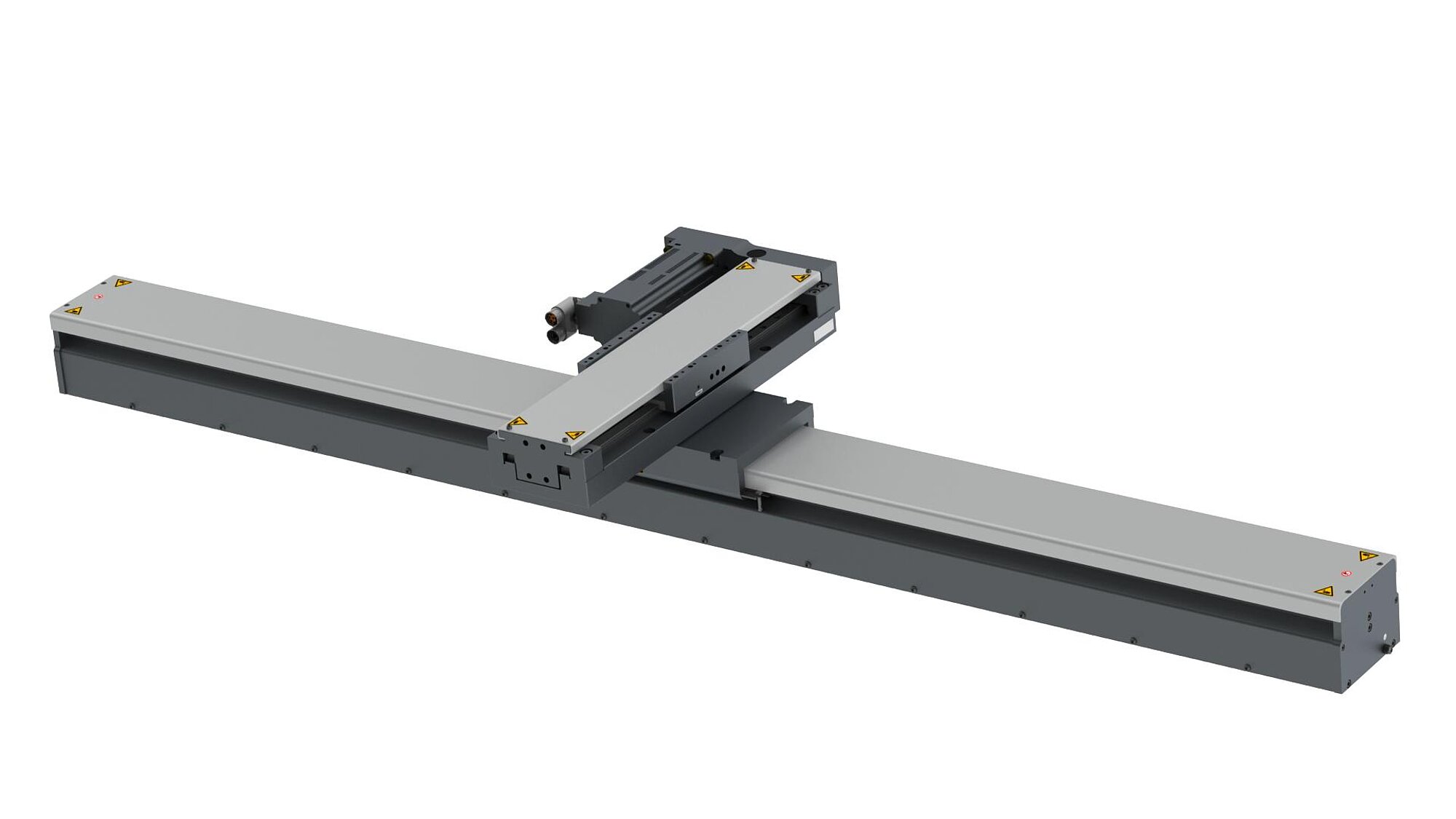

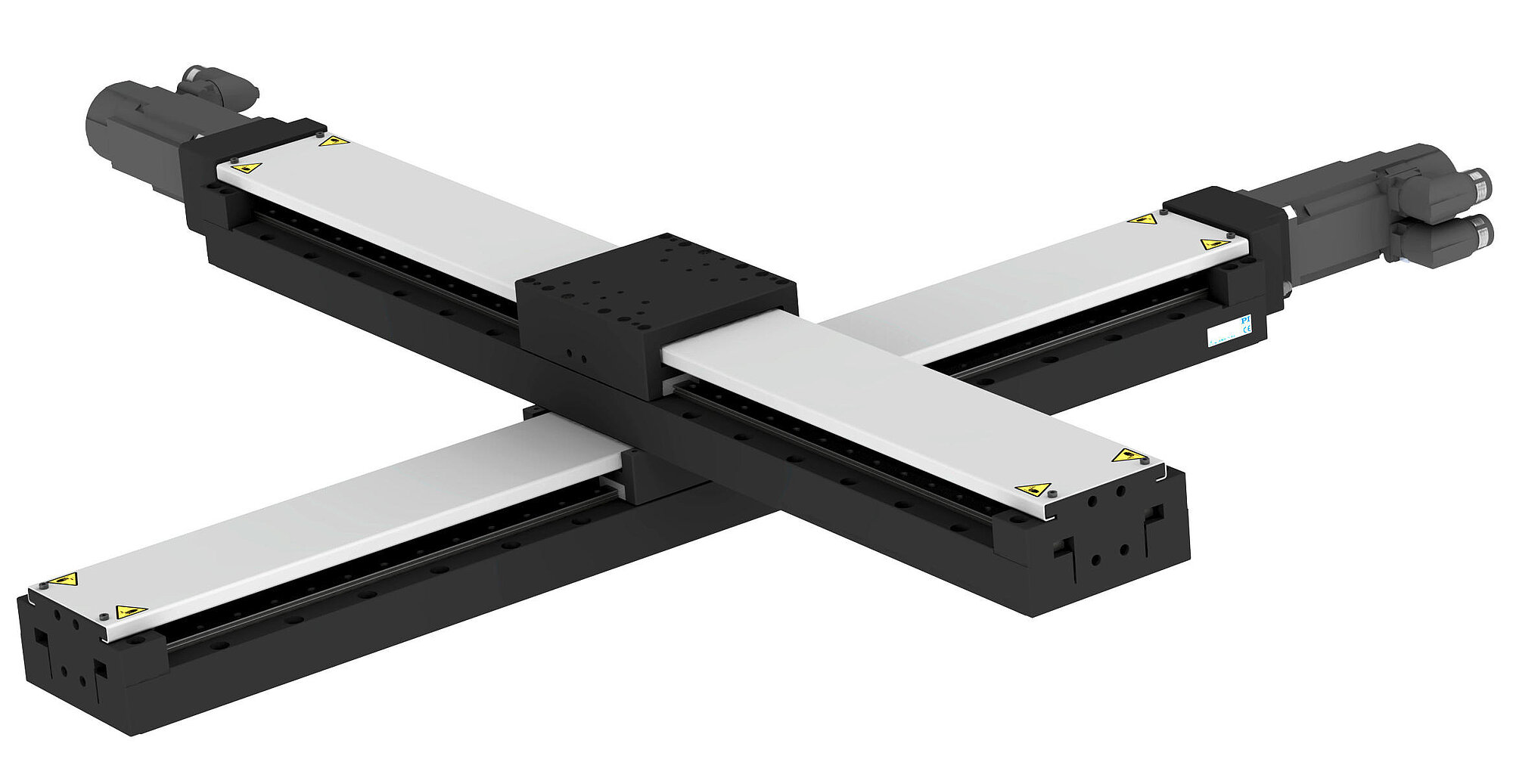

  • Optional accessory: L-812.TT1 motion platform

Application fields

  • Electronics production: Microassembly. Sensor / camera placement.
  • Laser materials processing: Laser micromachining.
  • Industrial inkjet printing. Matrix plate and printed circuit board production.
  • Test & inspection.
  • Manufacturing of medical equipment: Hermetic welding. Robotic systems for gene laboratories.

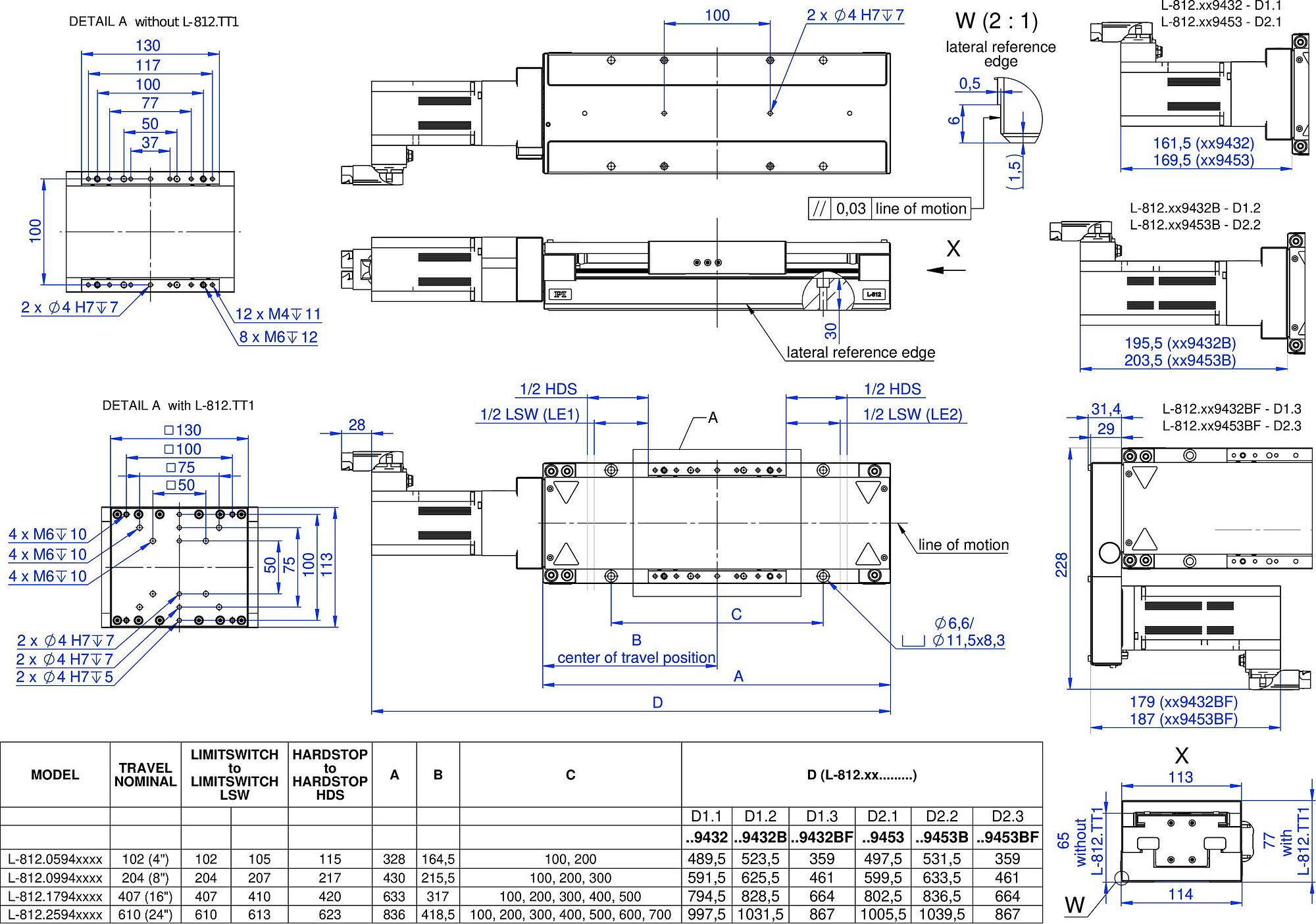

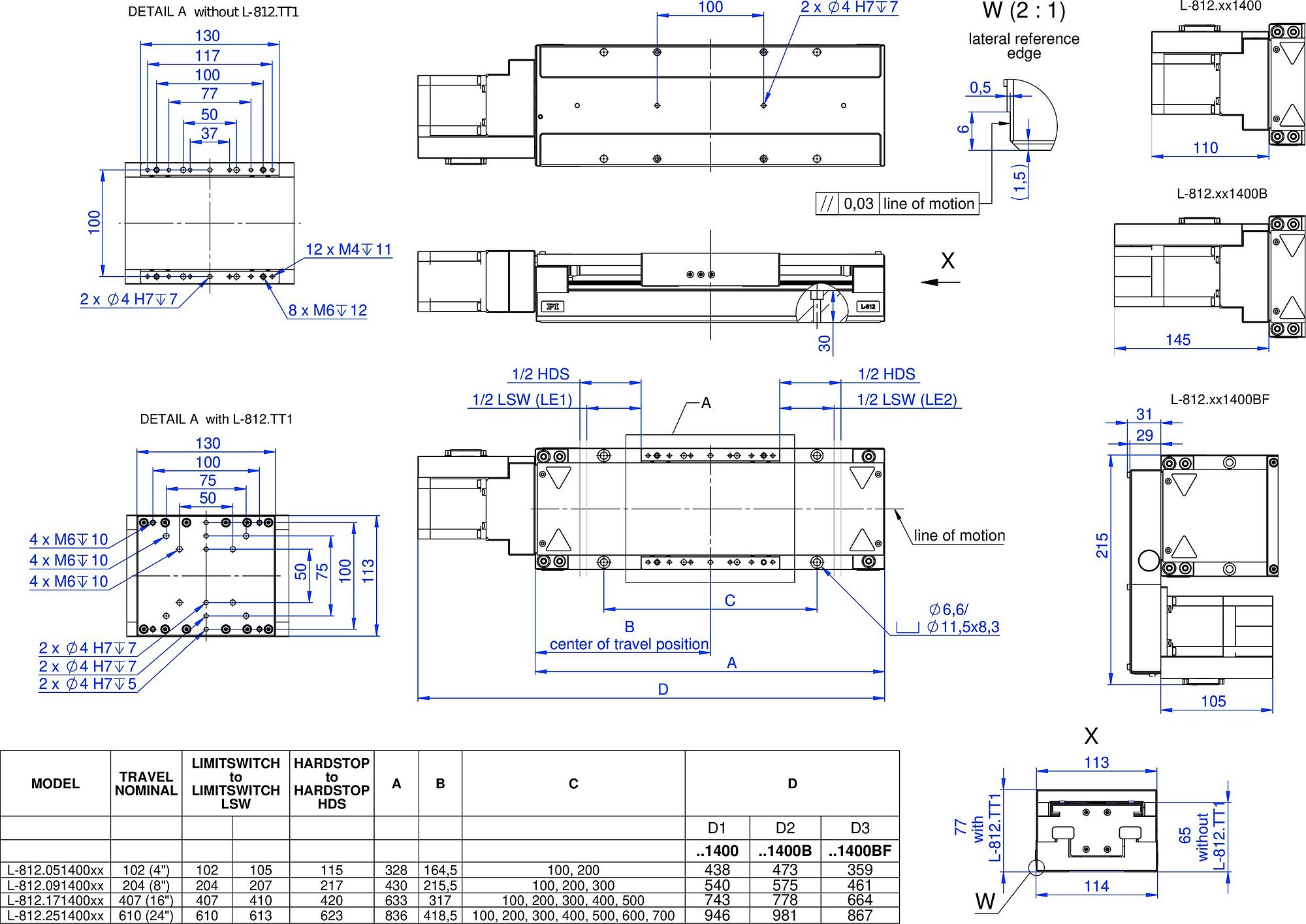

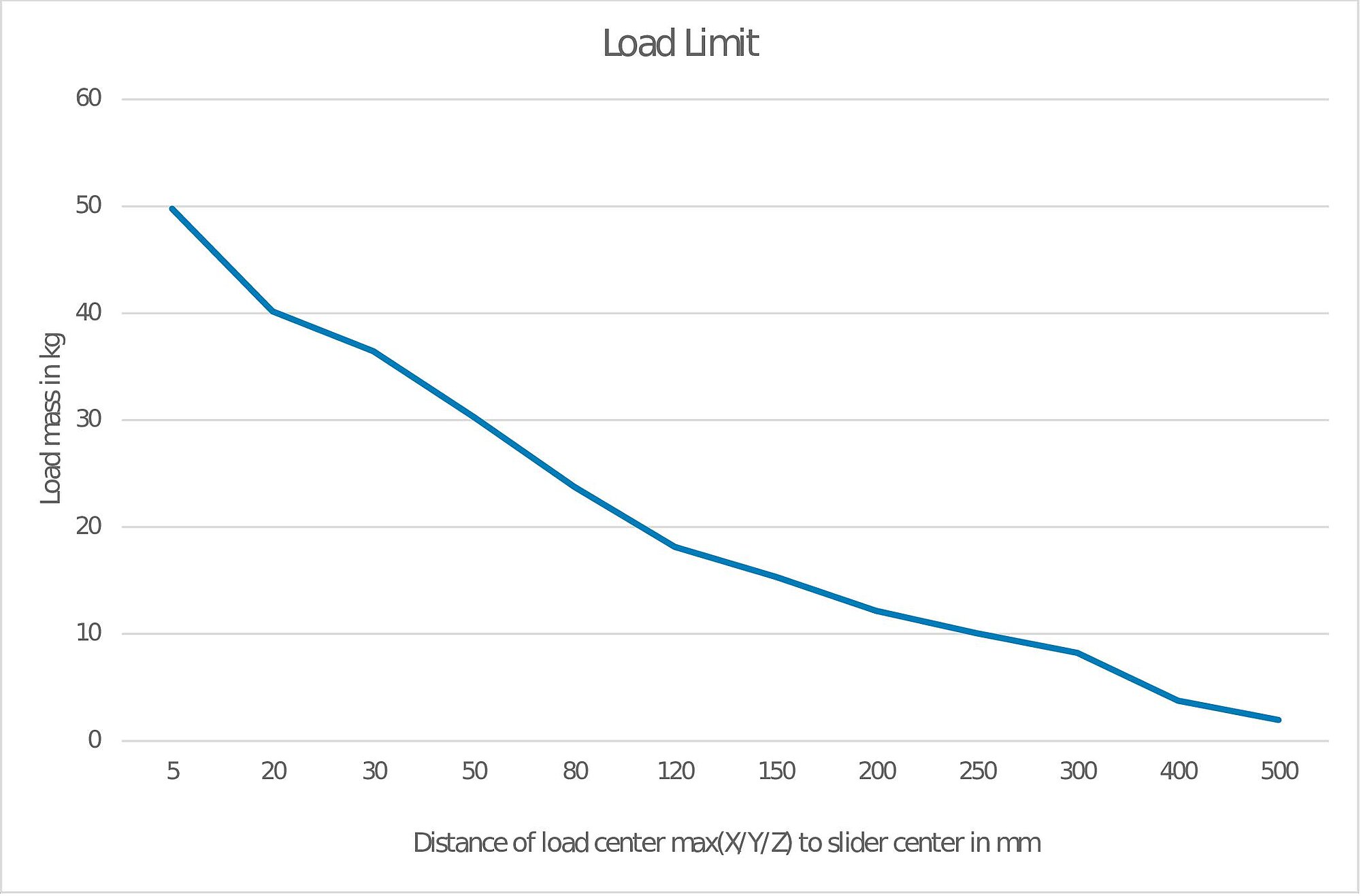

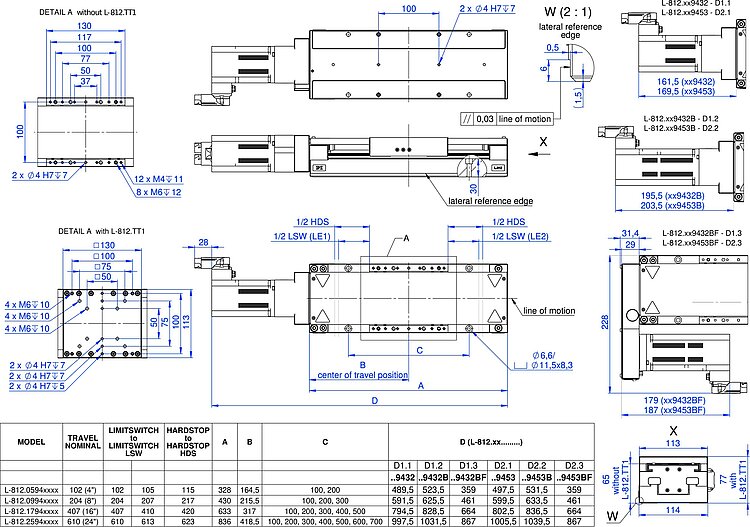

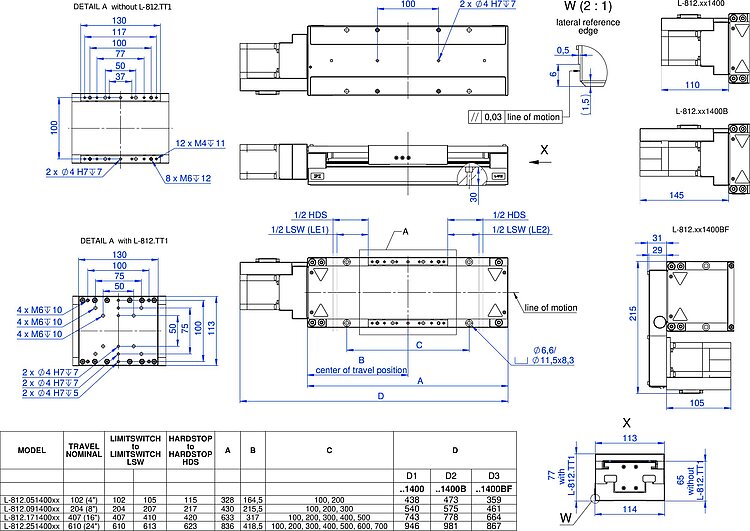

Specifications

Datasheet

Datasheet L-812

Version / Date
2023-05-08
pdf - 5 MB
Version / Date
2023-05-08
pdf - 5 MB

Downloads

Datasheet

Datasheet

Datasheet L-812

Version / Date
2023-05-08
pdf - 5 MB
Version / Date
2023-05-08
pdf - 5 MB

Documentation

Documentation

User Manual L812UM0002

L-812.xx9432 High-Load Linear Stage

Version / Date
2022-10-24
pdf - 10 MB
Version / Date
2022-10-24
pdf - 10 MB
Documentation

User Manual L812UM0001

L-812.xx1400 Linear Stage with Stepper Motor

Version / Date
2022-10-24
pdf - 5 MB
Version / Date
2022-10-24
pdf - 5 MB
Documentation

User Manual L812UM0003

L-812.xx9453 High-Load Linear Stage

Version / Date
2022-10-24
pdf - 3 MB
Version / Date
2022-10-24
pdf - 10 MB

3-D Models

3-D Models

3-D model L-812.xx9432B

Version / Date
2021-03-18
zip - 11 MB
3-D Models

3-D model L-812.xx9453BF

Version / Date
2021-03-18
zip - 11 MB
3-D Models

3-D model L-812.xx9432BF

Version / Date
2021-03-18
zip - 12 MB
3-D Models

3-D model L-812.xx1400BF

Version / Date
2021-07-15
zip - 8 MB
3-D Models

3-D model L-812.xx1400B

Version / Date
2021-07-15
zip - 6 MB
3-D Models

3-D model L-812.xx1400

Version / Date
2021-07-14
zip - 6 MB
3-D Models

3-D model L-812.xx9453B

Version / Date
2021-04-22
zip - 10 MB
3-D Models

3-D model L-812.xx9453

Version / Date
2021-04-22
zip - 10 MB
3-D Models

3-D model L-812.xx9432

Version / Date
2021-04-22
zip - 12 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-812.051400B NEW!

High-load linear stage; 2-phase stepper motor; 102 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; electromagnetic holding brake

L-812.051400BF NEW!

High-load linear stage; 2-phase stepper motor; 102 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; electromagnetic holding brake; folded drivetrain

L-812.091400B NEW!

High-load linear stage; 2-phase stepper motor; 204 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; electromagnetic holding brake

L-812.091400BF NEW!

High-load linear stage; 2-phase stepper motor; 204 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; electromagnetic holding brake; folded drivetrain

L-812.171400B NEW!

High-load linear stage; 2-phase stepper motor; 407 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; electromagnetic holding brake

L-812.171400BF NEW!

High-load linear stage; 2-phase stepper motor; 407 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; electromagnetic holding brake; folded drivetrain

L-812.251400B NEW!

High-load linear stage; 2-phase stepper motor; 610 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; electromagnetic holding brake

L-812.251400BF NEW!

High-load linear stage; 2-phase stepper motor; 610 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; electromagnetic holding brake; folded drivetrain

L-812.059432 NEW!

High-load linear stage; synchronous servo motor to 310 V; 102 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder

L-812.059432B NEW!

High-load linear stage; synchronous servo motor to 310 V; 102 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder; electromagnetic holding brake

L-812.059432BF NEW!

High-load linear stage; synchronous servo motor to 310 V; 102 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder; electromagnetic holding brake; folded drivetrain

L-812.099432 NEW!

High-load linear stage; synchronous servo motor to 310 V; 204 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder

L-812.099432B NEW!

High-load linear stage; synchronous servo motor to 310 V; 204 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder; electromagnetic holding brake

L-812.099432BF NEW!

High-load linear stage; synchronous servo motor to 310 V; 204 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder; electromagnetic holding brake; folded drivetrain

L-812.139432

High-load linear stage; synchronous servo motor to 310 V; 304 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder

L-812.179432 NEW!

High-load linear stage; synchronous servo motor to 310 V; 407 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder

L-812.179432B NEW!

High-load linear stage; synchronous servo motor to 310 V; 407 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder; electromagnetic holding brake

L-812.179432BF NEW!

High-load linear stage; synchronous servo motor to 310 V; 407 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder; electromagnetic holding brake; folded drivetrain

L-812.259432 NEW!

High-load linear stage; synchronous servo motor to 310 V; 610 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder

L-812.259432B NEW!

High-load linear stage; synchronous servo motor to 310 V; 610 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder; electromagnetic holding brake

L-812.259432BF NEW!

High-load linear stage; synchronous servo motor to 310 V; 610 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder; electromagnetic holding brake; folded drivetrain

L-812.059453 NEW!

High-load linear stage; synchronous servo motor to 310 V; 102 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn

L-812.059453B NEW!

High-load linear stage; synchronous servo motor to 310 V; 102 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn; electromagnetic holding brake

L-812.059453BF NEW!

High-load linear stage; synchronous servo motor to 310 V; 102 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn; electromagnetic holding brake; folded drivetrain

L-812.099453 NEW!

High-load linear stage; synchronous servo motor to 310 V; 204 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn

L-812.099453B NEW!

High-load linear stage; synchronous servo motor to 310 V; 204 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn; electromagnetic holding brake

L-812.099453BF NEW!

High-load linear stage; synchronous servo motor to 310 V; 204 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn; electromagnetic holding brake; folded drivetrain

L-812.179453 NEW!

High-load linear stage; synchronous servo motor to 310 V; 407 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn

L-812.179453B NEW!

High-load linear stage; synchronous servo motor to 310 V; 407 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn; electromagnetic holding brake

L-812.179453BF NEW!

High-load linear stage; synchronous servo motor to 310 V; 407 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn; electromagnetic holding brake; folded drivetrain

L-812.259453 NEW!

High-load linear stage; synchronous servo motor to 310 V; 610 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn

L-812.259453B NEW!

High-load linear stage; synchronous servo motor to 310 V; 610 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn; electromagnetic holding brake

L-812.259453BF NEW!

High-load linear stage; synchronous servo motor to 310 V; 610 mm travel range; 500 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn; electromagnetic holding brake; folded drivetrain
