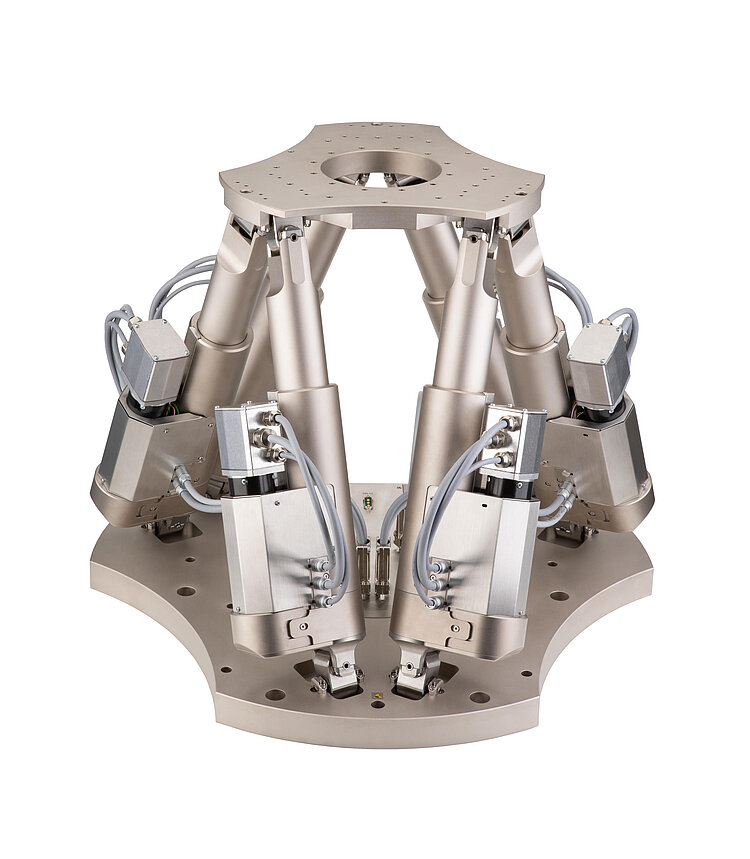

H-900KSCO Fast 6-Axis Hexapod

For Loads to 60 kg

  • Low-wear, brushless DC motors
  • Travel ranges to 300 mm in X and Y and up to 170 mm in Z
  • Tilt and rotation angle to 100°
  • High velocities
H-900KSCO Fast 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order

Reference-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Powerful digital controller, open software architecture

Optional: Software for avoiding collisions in restricted workspace

Fields of application

Motion simulation, industrial production, tool machines, automotive industry, shipping

Specifications

Datasheet

Datasheet H-900KSCO

Version / Date
2022-08-23
pdf - 2 MB
Version / Date
2022-08-23
pdf - 2 MB

Downloads

Datasheet

Datasheet

Datasheet H-900KSCO

Version / Date
2022-08-23
pdf - 2 MB
Version / Date
2022-08-23
pdf - 2 MB

3-D Models

3-D Models

3-D model H-900KSCO

Version / Date
2022-03-29
zip - 8 MB

White Paper

White Paper

Industrial Safety Device for Hexapods

How to Connect a Safety Light Barrier to a Hexapod System

Version / Date
WP4025E 2020-02
pdf - 1 MB
Version / Date
WP4025D 2020-01
pdf - 1 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

H-900KSCO

Motion hexapod for 60 kg load, 300 mm maximum travel range, 80 mm/s maximum velocity

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
