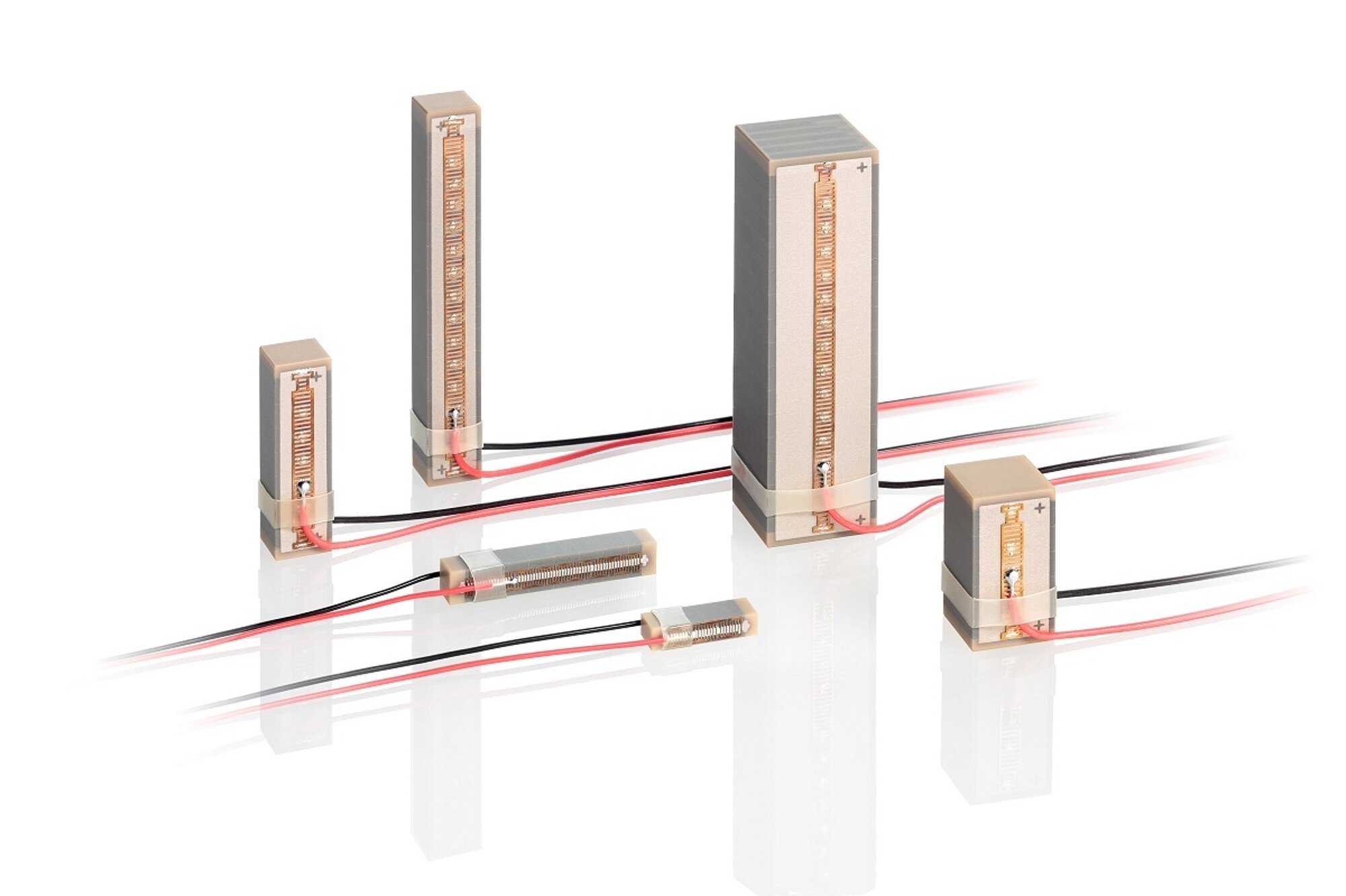

P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators

Ceramic-Insulated High-Power Actuators

P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators

Product Description Specifications Downloads Quote / Order

Superior lifetime
High stiffness
Microsecond response
Subnanometer resolution
UHV-compatible to 10^-9 hPa

Operating voltage -20 to 120 V. Ceramic insulation, polymer free. Humidity resistance. Excellent temperature stability. UHV-compatible to 10^-9 hPa, no outgassing, high bakeout temperature. Ideal for dynamic operation.

Flexible thanks to numerous designs. Encapsulated versions for operation in splash water or oil.

For high operating temperature up to 200 °C
Special electrodes for currents of up to 20 A

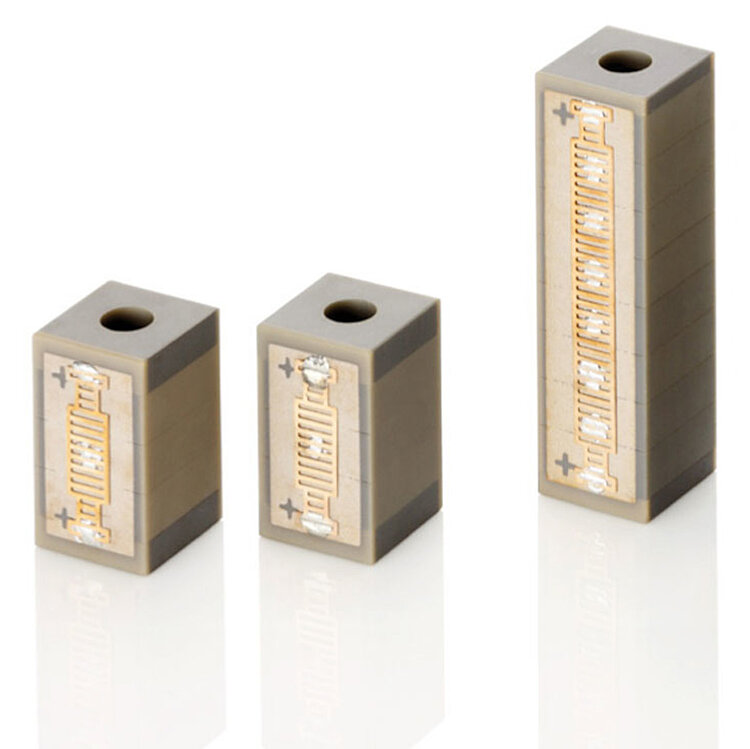

Variable geometry: Inner hole, round, rectangular

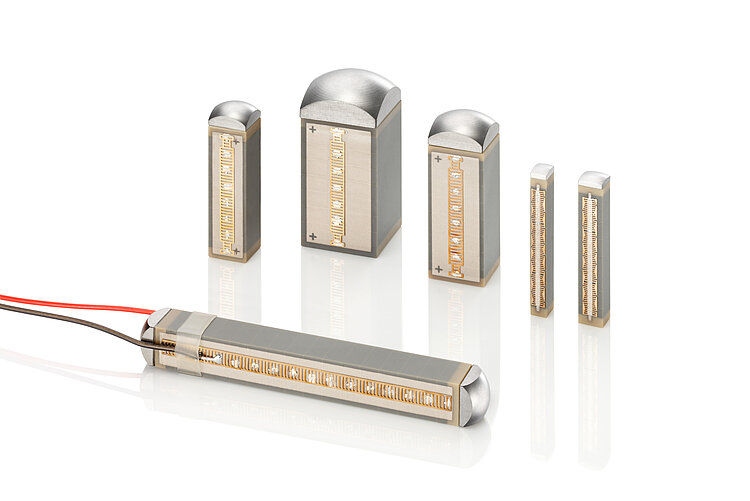

Ceramic or metal tips in many versions
Applied SGS sensors for positional stability

Industry and research. Cryogenic environment with reduced displacement. For high-speed switching, precision positioning, active and adaptive systems.

Download datasheet Go to specifications

Datasheet

Datasheet P-882 – P-888

Version / Date

2017-11-30

Version / Date

2017-11-30

Document language

Download

pdf - 1 MB

Download

pdf - 1 MB

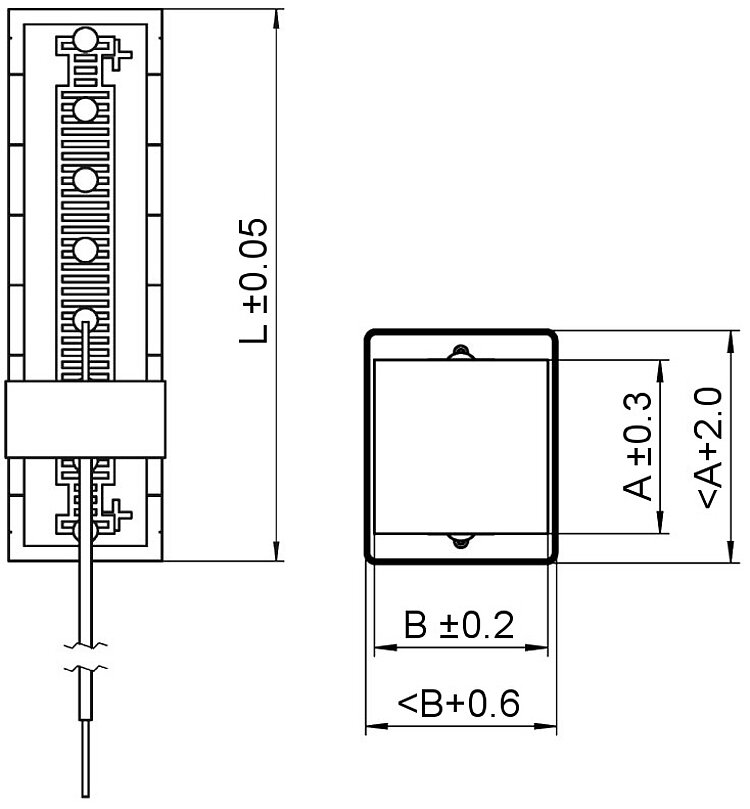

	Dimensions A × B × L	Nominal travel range	Max. travel range	Blocking force	Stiffness	Electrical capacitance	Resonant frequency
		µm	µm	N	N/µm	µF	kHz
P-882.11	3 mm × 2 mm × 9 mm	6.5	8	190	24	0.15	135
P-882.31	3 mm × 2 mm × 13.5 mm	11	13	210	16	0.27	90
P-882.51	3 mm × 2 mm × 18 mm	15*	18*	210	12	0.31	70
P-883.11	3 mm × 3 mm × 9 mm	6.5	8	290	36	0.21	135
P-883.31	3 mm × 3 mm × 13.5 mm	11	13	310	24	0.35	90
P-883.51	3 mm × 3 mm × 18 mm	15*	18*	310	18	0.48	70
P-885.11	5 mm × 5 mm × 9 mm	6.5	8	800	100	0.6	135
P-885.31	5 mm × 5 mm × 13.5 mm	11	13	870	67	1.1	90
P-885.51	5 mm × 5 mm × 18 mm	15*	18*	900	50	1.5	70
P-885.91	5 mm × 5 mm × 36 mm	32*	38*	950	25	3.1	40
P-887.31	7 mm × 7 mm × 13.5 mm	11	13	1700	130	2.2	90
P-887.51	7 mm × 7 mm × 18 mm	15*	18*	1750	100	3.1	70
P-887.91	7 mm × 7 mm × 36 mm	32*	38*	1850	50	6.4	40
P-888.31	10 mm × 10 mm × 13.5 mm	11	13	3500	267	4.3	90
P-888.51	10 mm × 10 mm × 18 mm	15*	18*	3600	200	6.0	70
P-888.91	10 mm × 10 mm × 36 mm	32*	38*	3800	100	13.0	40

Nominal travel range: At 0 to 100 V, tolerance ±20 %, * ±10 %.

Maximum travel range: At 0 to 120 V, tolerance ±20 %, * ±10 %.

Blocking force: At 0 to 120 V.

Electrical capacitance: Measured at 1 V_pp, 1 kHz, RT, tolerance ±20 %

Resonant frequency: Measured at 1 V_pp, unloaded, unclamped. The value is halved for unilateral clamping, tolerance ±20 %.

Piezo ceramic type: PIC252.

Standard connections: P-882, P-883: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 32, Ø 0.49 mm. P-885, P-887, P-888: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 30, Ø 0.61 mm. For optional solderable contacts without stranded wires, change the last digit of the product number to 0 (e.g., P-882.10).

Operating voltage range: -20 to 120 V.

Operating temperature range: -40 to 150 °C.

Recommended preload for dynamic operation: 15 MPa.

Maximum preload for constant force: 30 MPa.

Custom designs or different specifications on request.
