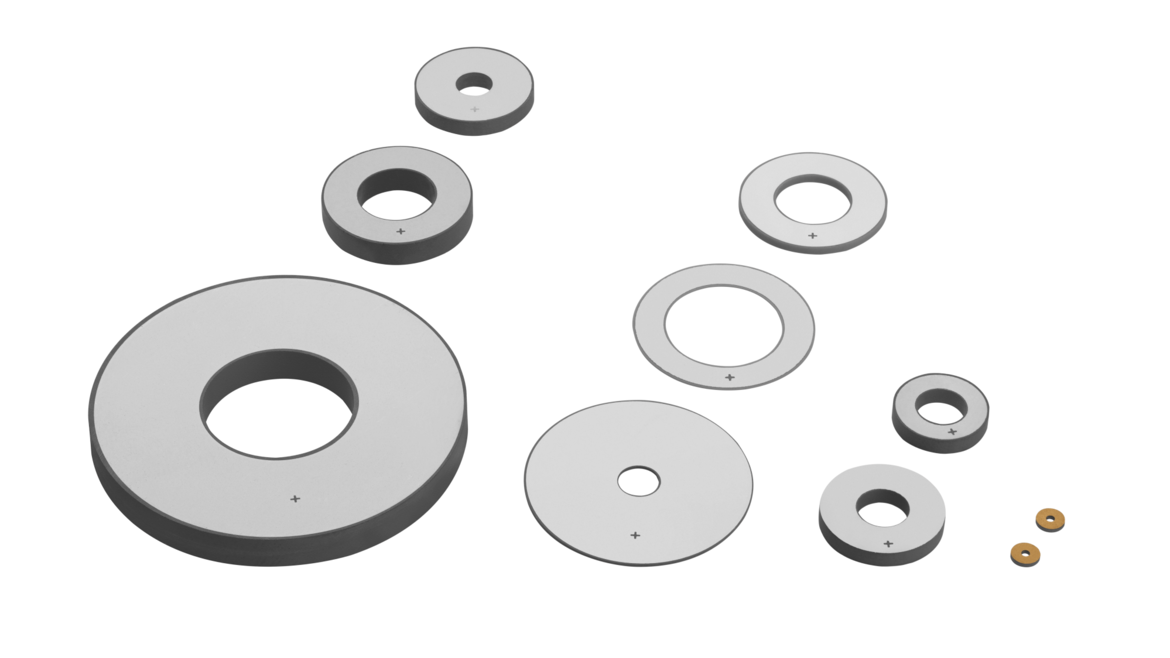

Rings

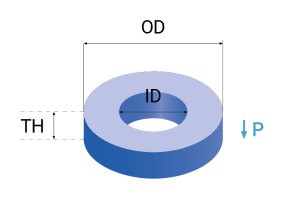

OD   Outer diameter
ID     Inner diameter
TH    Thickness
P      Polarization direction

Outer Diameter OD
2 to 80 mm
Inner Diameter ID
0.8 to 74 mm
Thickness TH
0.15 to 30 mm

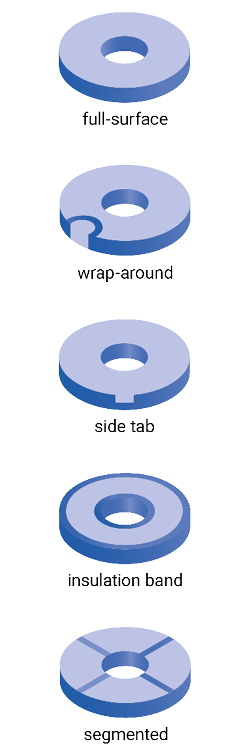

Electrodes
Silver (thick film) or PVD thin film (CuNi, Au, etc.)

Downloads

User Manual A000T0047

Handling and Electrical Contacting of Piezo Components
Version / Date
2019-02-12
Version / Date
2019-02-12
Document language
pdf - 718 KB
pdf - 725 KB
