Flexible tip for mounting on P-842 / P-843
- Flexible tips for compensating bend forces
- Flat or ball tips for different load couplings
- Can be screwed on or screwed in

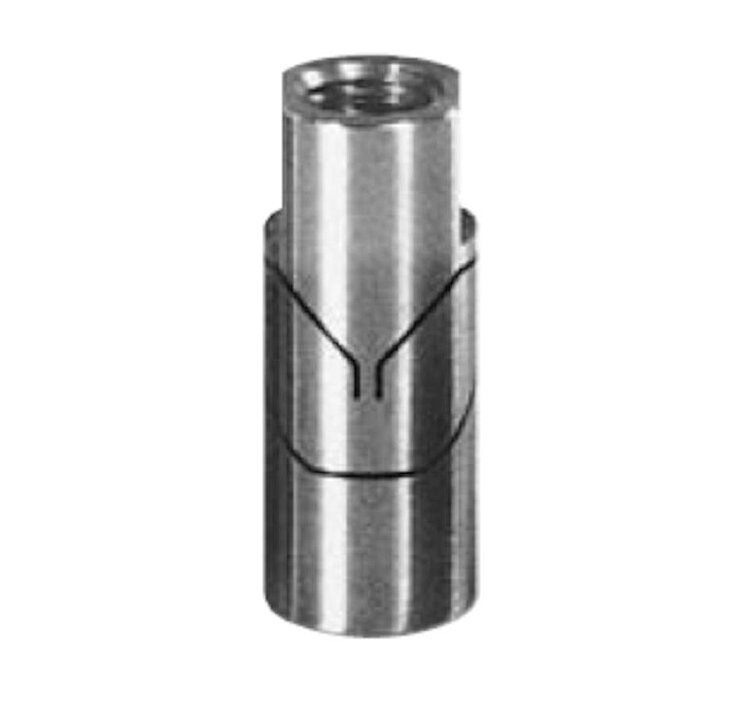

P-176.50 and P-176.60 flexible tips
Piezo ceramic is sensitive to bend forces. The P-176.50 and P-176.60 flexible tips are recommended for applications where bend forces are unavoidable. They can be screwed onto the tips of P-842 / P-843 respectively P-844 / P-845 piezo actuators.

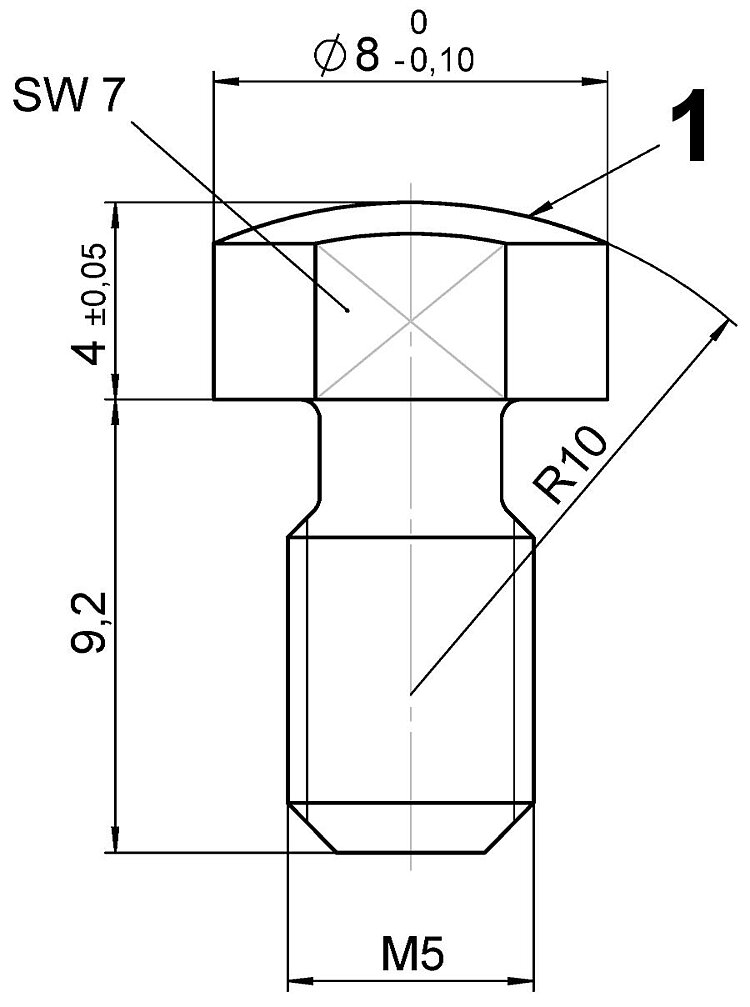

P-176.Bxx ball tips
We recommend the use of ball tips to keep bend and shear forces away from the piezo ceramic. They are available for a series of piezo actuators and can be screwed into the tip of the respective piezo actuator.
Note: The stiffness of the overall system is reduced by point contact of the ball tip.
P-176.Fxx flat tips
Flat tips are available as an accessory for a series of piezo actuators and can be screwed into the tip of the respective piezo actuator.
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
