C-867.Lxx Firmware Feature for C-867 Controllers
NEW

C-867.Lxx Firmware Feature for C-867 Controllers

System Tuning for PILine® Ultrasonic Drives

  • Simple unlocking in the controller
  • "Slow motion drive": Optimizes slow motion with simultaneous high velocity constancy
to content
C-867.Lxx Firmware Feature for C-867 Controllers
Product Description Specifications Downloads Quote / Order

Overview

PILine® positioners have been designed for a wide application area. Firmware features are available for optimizing the individual areas. These can be obtained as a license and, using this, activated in the controller.

Slow motion drive

The firmware feature C-867.L01, slow motion drive, can be used together with the C-867.2U2 controller for optimizing slow motion. The standard speed range for PILine® ultrasonic drives is specified up to a minimum speed of 2 mm/s. Using C-867.L01 enables constant slow motion in the range of 2 mm/s to 100 nm/s (depending on the mechanics selected) with simultaneous high velocity constancy during operation.

Compatibility

The C-867.L01 firmware feature is compatible with the following PI controllers:

  • C-867.2U2
Download datasheet specifications

Downloads

Datasheet

Datasheet

Datasheet C-867.Lxx

Version / Date
2022-08-18
pdf - 140 KB
Version / Date
2022-08-18
pdf - 142 KB
Download
Download

Documentation

Documentation

User Manual C867UM0001

C-867.L01 Firmware Feature for PILine® Controllers

Version / Date
2021-03-05
pdf - 208 KB
Version / Date
2021-03-05
pdf - 318 KB
quote / order

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask for custom design quote list

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

0049 721 4846 0info@pi.ws
Contact us!
Compatible Electronics Related Products

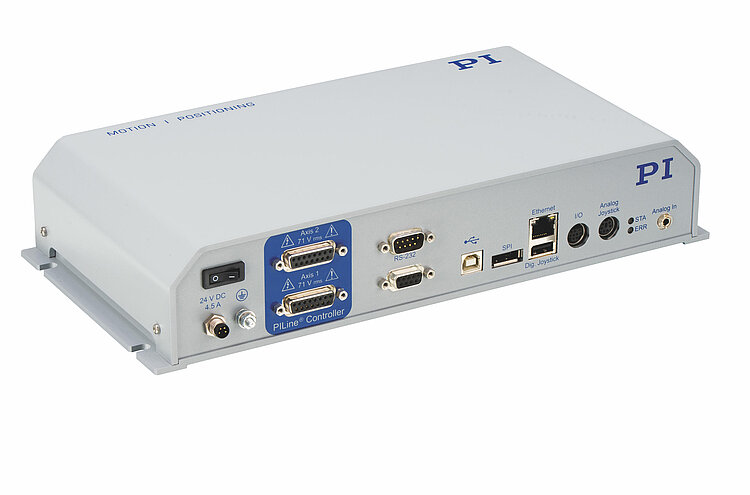

C-867.2U2 PILine® Motion Controller
