- Customized control algorithms for PICMAWalk walking drives
- Plug-and-play, thanks to PI proprietary controller technology
- Flexible interfaces: TCP/IP, USB, RS-232, SPI
- Compatible with GCS (PI General Command Set)
- Wave generator
- Data recorder

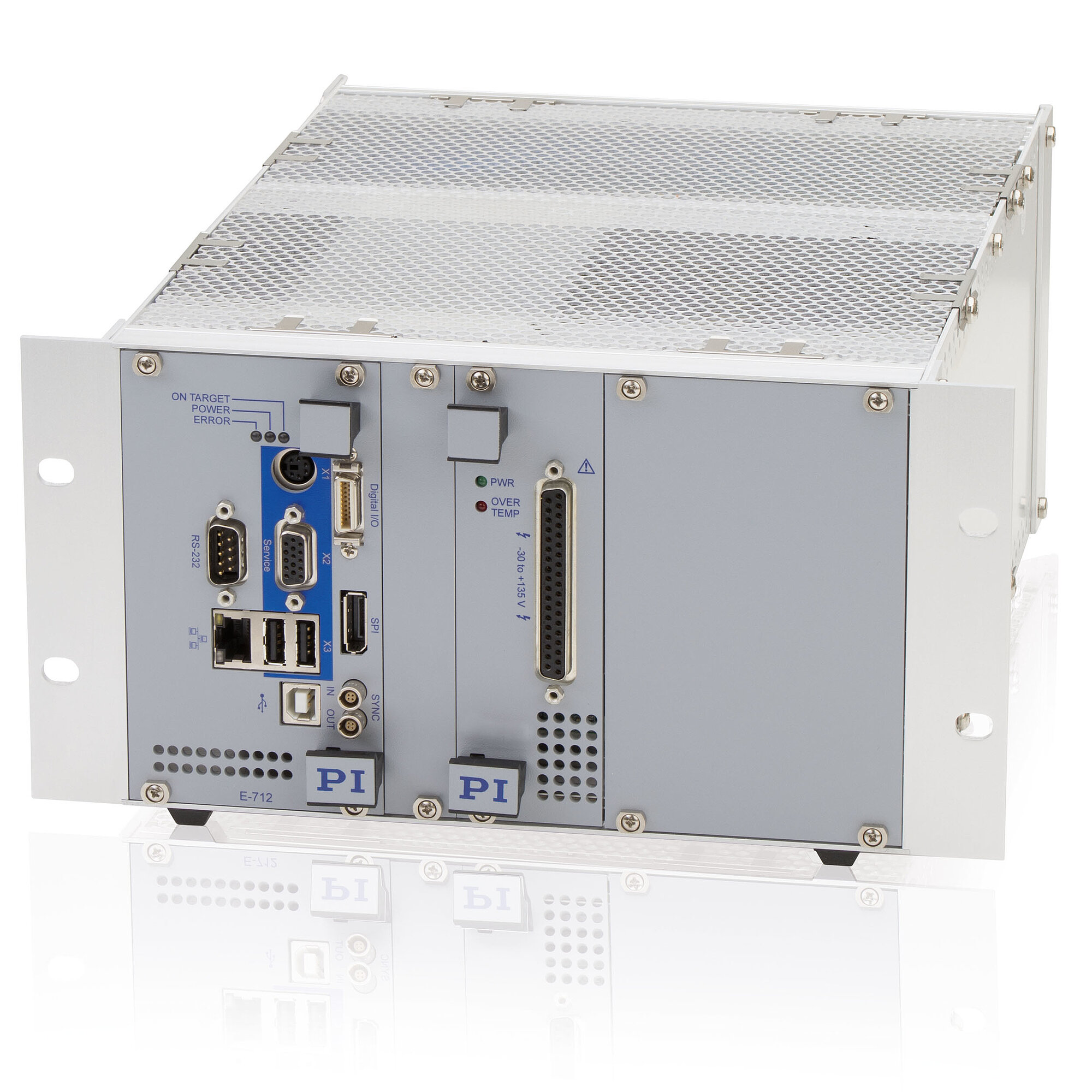

Digital controller for PICMAWalk walking drives
1 to 3 axes with integrated power amplifiers and interpolator. Supports all motion modes of PiezoWalk® technology. 20-bit digital/analog converter resolution. Linearization based on fourth-order polynomials.
Interfaces and communication
TCP/IP, USB, RS-232 and SPI for commanding. Differential signal transmission for analog (sin/cos) encoder signals. TTL signal inputs for reference point switch.
Extensive functions, software support
Wave generator. Trigger inputs and outputs. Data recorder. Various control algorithms can be selected, including PID position control with secondary velocity control or PID velocity control. Parameter changing during operation. Extensive software support, e.g., for LabVIEW.
Fields of application
Microscopy. Automation technology. Positioning tasks in photonics applications and permanent image inspection tasks.
User Manual PZ195
E-711, E-712 Modular Digital Multi-Channel Piezo Controller System
Commands Manual PZ233
GCS Commands for E-711, E-712 Modular Digital Multi-Channel Piezo Controller System
Technical Note E712T0010
E-712 Digital Piezo Controller System for PiezoWalk® Drives
General Software Documentation
Software Manual SM159
Software Manual SM157
PIPython - Programming PI Controllers with Python
User Manual A000T0028
Updating PI Software with PIUpdateFinder
Software Manual SM146
GCS Array Data Format
Software Manual SM148
Software Manual SM151E
PI GCS2 DLL
Software Manual SM155
PI MATLAB Driver GCS 2.0
