This product has been replaced by the following new product: E-518 Digital Interfaces and Function Unit

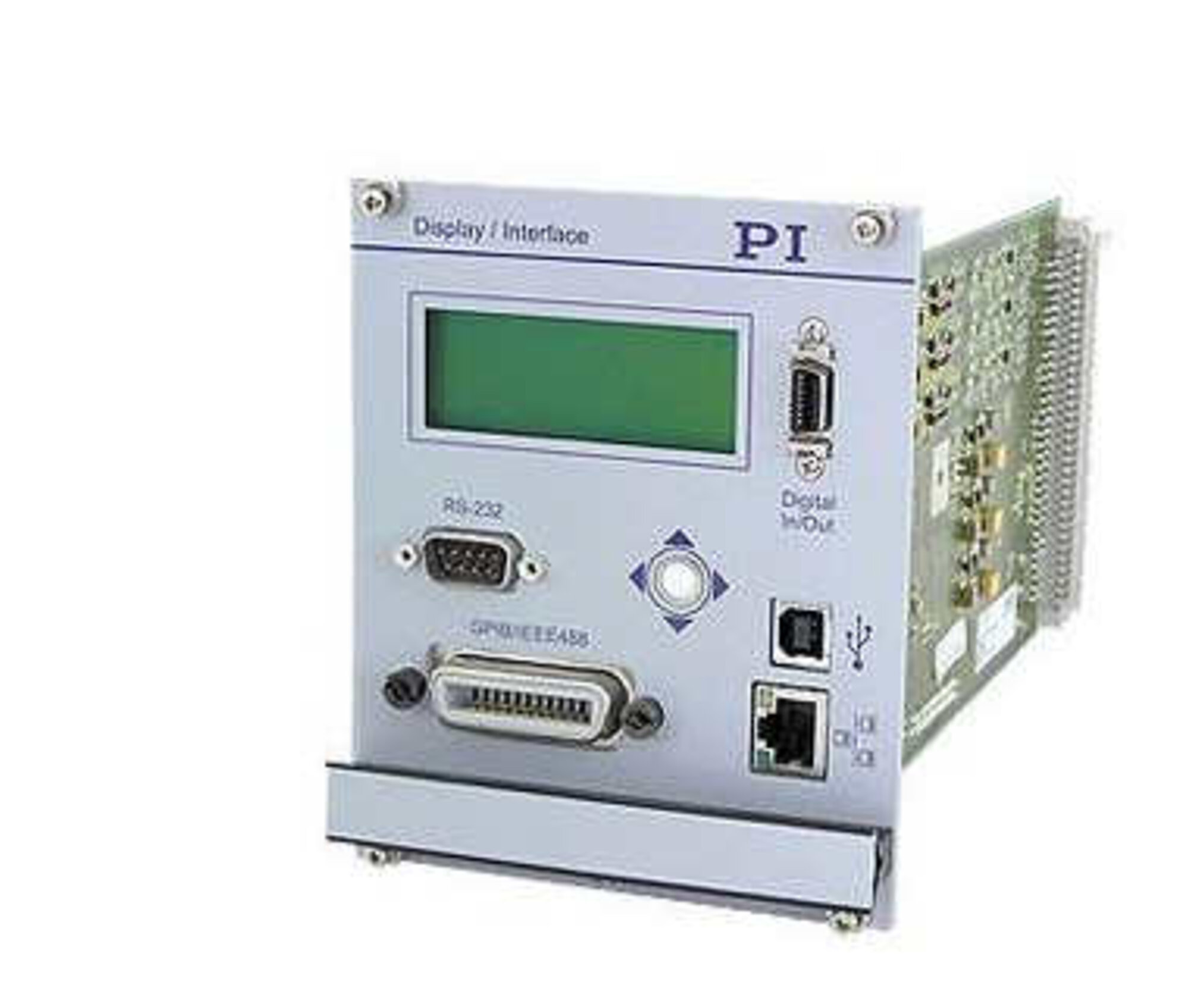

E-517 Digital Piezo Controller Operation Module

Wave Generator, Data Recorder, Display, Multiple Interfaces, for E-500 System

E-517 Digital Piezo Controller Operation Module
Product Description Specifications Downloads Quote / Order
  • Low-noise 24-bit D/A converter
  • Sampling rate 25 kHz
  • TCP/IP, USB, IEEE 488 and RS-232 interfaces
  • 6-digit display for voltage and position
  • 1- & 3-channel versions
  • Wave generator with programmable trigger-I/O
  • Module for E-500 piezo controller rack

Specifications

This content is only available on tablets or desktop devices.

Downloads

Documentation

Documentation

User Manual PZ214

E-517 Interface / Display Module
Version / Date
2008-12-08
Document language English
Documentation

User Manual PZ62

E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).
Version / Date
2013-07-11
Document language English

General Software Documentation

General Software Documentation

Software Manual SM151E

PI GCS2 DLL
Version / Date
2.10.0 2019-08-26
Document language English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0
Version / Date
1.1.0 2016-02-29
Version / Date
1.1.0 2016-02-29
Document language
General Software Documentation

Software Manual PZ181

GCS Driver Set for use with NI LabVIEW Software, for Controllers with Analog Inputs
Version / Date
6.3.1
Document language English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

E-517.i3

Interface/Display Module, 24 Bit D/A, TCP/IP, USB, RS-232, IEEE488, 3 Channels

E-517.i1

Interface / Display Module, 24 Bit D/A, TCP/IP, USB, RS-232, IEEE488, 1 Channel

E-517.i30

Interface / Display Module, 24 Bit D/A, TCP/IP, USB, RS-232, 3 Channels

E-517.i10

Interface / Display Module, 24 Bit D/A, TCP/IP, USB, RS-232, 1 Channel
