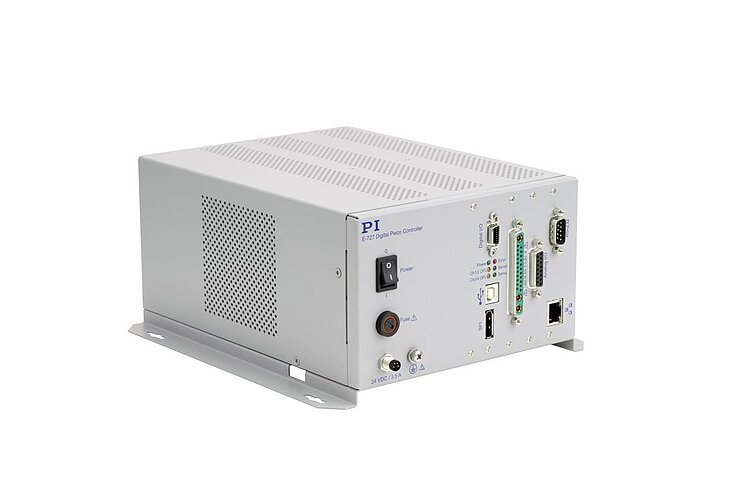

E-727.x • E-727.xAP Digital Multi-Channel Piezo Controller

For Nanopositioning Systems with Capacitive, Piezoresistive or Strain Gauge Sensors

  • 20 kHz sampling rate control
  • Option for increased output current
  • Interfaces: TCP/IP, USB and RS-232
  • Optional analog inputs and outputs
  • Autoloading of calibration data from stage ID chip for interchangeability of controller and mechanics
  • 4th order polynomial linearization for mechanics and electronics
E-727.x • E-727.xAP Digital Multi-Channel Piezo Controller
Product Description Specifications Downloads Quote / Order

Digital controller for piezo-based nanopositioning systems

Integrated low-noise power amplifiers for PICMA® piezo actuators. Output voltage -30 to +130 V. Supports nanopositioning systems with strain gauge sensors, capacitive sensors or piezoresistive sensors. P-I controller with 2 notch filters. Linearization based on 4th-order polynomials. Optional Dynamic Digital Linearization (DDL). Delivery includes wide input range power supply, USB and RS-232 cable.

High dynamics

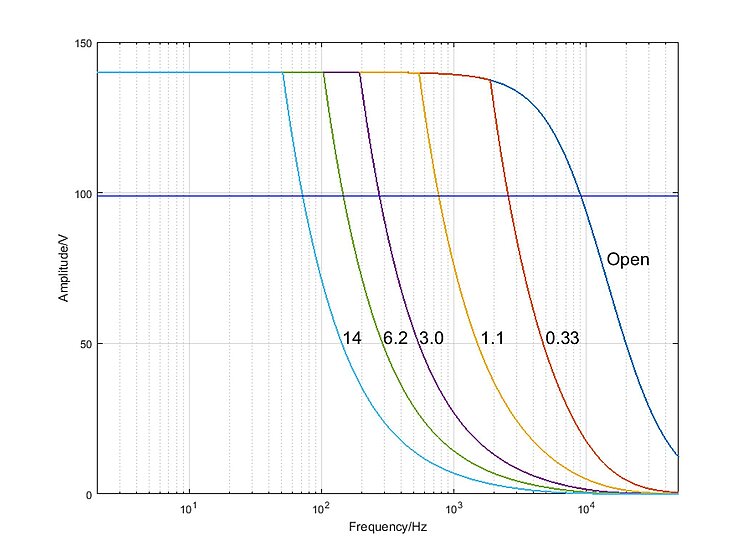

Increased output current (optional) for dynamic applications that require a high peak current.

Extensive functionality

ID chip for fast startup and quick exchange of system components. Data recorder, wave generator, macros. Extensive software support, e.g., for NI LabVIEW, dynamic libraries for Windows and Linux.

Interfaces

TCP/IP, USB, RS-232, SPI. 4 analog inputs and outputs each (optional) for external sensors, target values or external amplifiers. 4 digital inputs and outputs respectively.

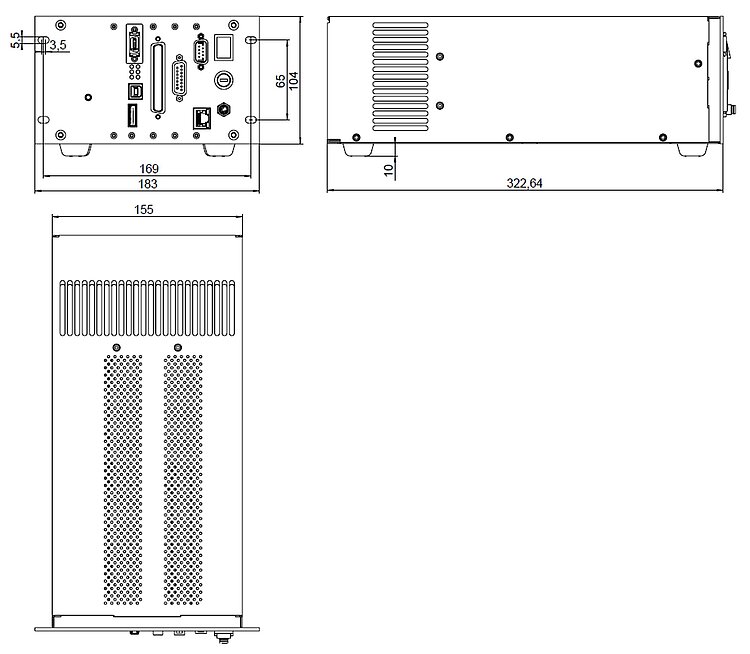

Specifications

Datasheet

Datasheet E-727.xAP

Version / Date
2022-12-08
pdf - 1 MB
Version / Date
2022-12-08
pdf - 1 MB
Version / Date
2022-12-08
pdf - 1 MB

Downloads

Datasheet

Datasheet

Datasheet E-727.xAP

Version / Date
2022-12-08
pdf - 1 MB
Version / Date
2022-12-08
pdf - 1 MB
Version / Date
2022-12-08
pdf - 1 MB

Documentation

Documentation

Short Instructions PZ289

Digital Piezo Controllers E-709.xxG / E-727 / E-754

Version / Date
2.1.0 03/2024
pdf - 1 MB
Version / Date
2.1.0 03/2024
pdf - 1 MB
Documentation

Technical Note A000T0074

Guide to Grounding and Shielding

Version / Date
2018-11-22
pdf - 120 KB
Version / Date
2018-11-22
pdf - 125 KB
Documentation

User Manual E727T0005

E-727 Digital Multi-Channel Piezo Controller

Version / Date
2022-06-29
pdf - 15 MB
English
Documentation

User Manual E727T0012

E-727.AS Digital Multi-Channel Piezo Controller With Area Scan Routines for Fast Optical Alignment in Silicon Photonics Production

Version / Date
2018-08-16
pdf - 656 KB
English
Documentation

Commands Manual PZ281

GCS Commands for E-727 Digital Multi-Channel Piezo Controller

Version / Date
1.3.0 2022-06-29
pdf - 1 MB
English

Software Files

Software Files

PI Software Suite C-990.CD1

Version / Date
2.7.0, 2024-01
zip - 801 MB
Software Files

C-990.CD1 Releasenews

Version / Date
2.7.0, 2024-01
pdf - 311 KB
English

General Software Documentation

General Software Documentation

Software Manual SM159

PIFRF-Analyzer

Version / Date
2021-09-07
pdf - 923 KB
Version / Date
2021-09-07
pdf - 947 KB
General Software Documentation

Software Manual SM157

PIPython - Programming PI Controllers with Python

Version / Date
2021-08-17
pdf - 866 KB
Version / Date
2021-08-17
pdf - 874 KB
General Software Documentation

Software Manual SM146

GCS Array Data Format

Version / Date
1.2.1
pdf - 153 KB
English
General Software Documentation

Software Manual SM148

PIMikroMove

Version / Date
2.14.1 2022-02-28
pdf - 4 MB
English
General Software Documentation

Software Manual SM151E

PI GCS2 DLL

Version / Date
2.10.0 2019-08-26
pdf - 1 MB
English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0

Version / Date
1.2.0 2019-03-22
pdf - 1 MB
Version / Date
1.2.0 2019-03-22
pdf - 1 MB
General Software Documentation

Technical Note A000T0089

PI Software on ARM-Based Platforms

Version / Date
2023-05-08
pdf - 276 KB
General Software Documentation

User Manual SM164E

Updating controller firmware with PIFirmwareManager

Version / Date
12.12.2023 1.0.0
pdf - 819 KB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Accessories

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Products Compatible Accessories Related Controllers
