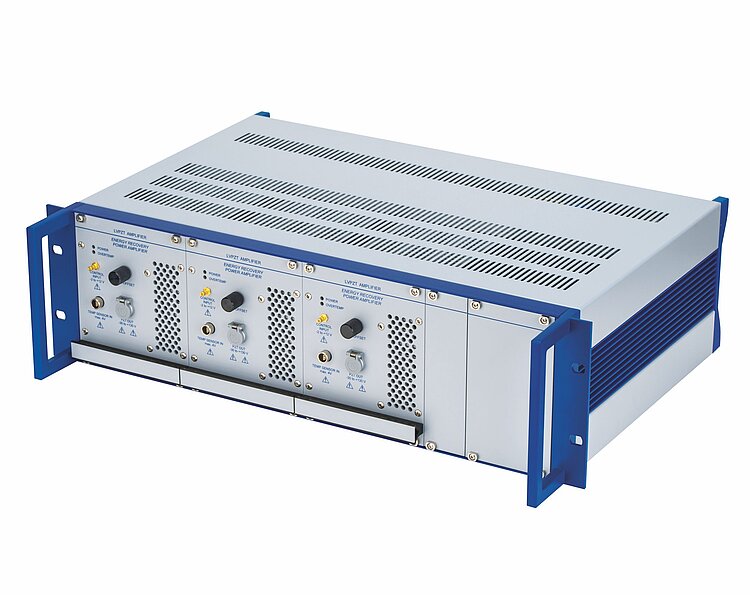

E-619 High-Power Amplifier for Piezo Actuators

Modular System for Continuous Dynamic Applications

  • Peak power up to 1200 W
  • High currents to 10 A
  • Low power consumption due to integrated energy recovery
  • Bandwidth to 20 kHz for high dynamics applications
  • Overheat protection for piezo actuators with temperature sensor
  • Optional upgrade for control and digital interfaces
E-619 High-Power Amplifier for Piezo Actuators
Product Description Specifications Downloads Quote / Order

High-power amplifier for piezo actuators

High peak current, >5 A continuous current. High bandwidth for high dynamics. Suitable for PICMA® piezo actuators with special electrodes. Output voltage -30 to 130 V. Analog control. Evaluation of temperature sensor protects the piezo actuator against overheating

High degree of efficiency

Class-D switched amplifier with capacitor for energy recovery. Low influence of the application thanks to reduced heat dissipation

Optional servo controller upgrade

Optional control module for nanopositioning systems with integrated position sensors (SGS, capacitive). Optional interface module with wave generator, data recorder, digital interfaces (TCP/IP, USB, RS-232, SPI). Optional driver set for use with D/A converter boards from National Instruments and NI LabVIEW software

Application fields

Mechanical engineering: High dynamics placement, vibration absorber, noncircular grinding, valve control, materials testing, test equipment

High dynamics tip/tilt mirror applications

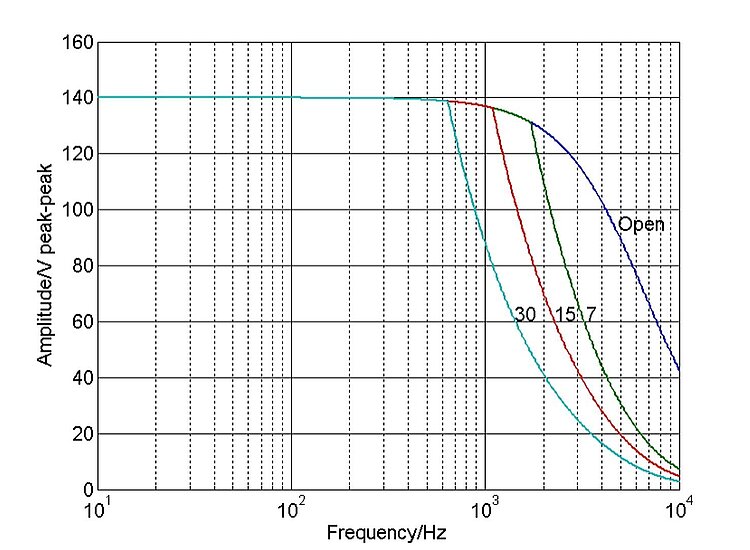

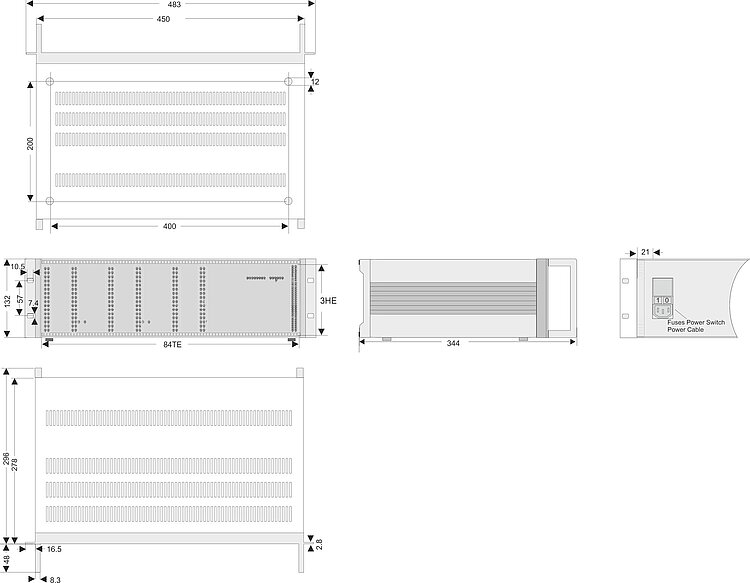

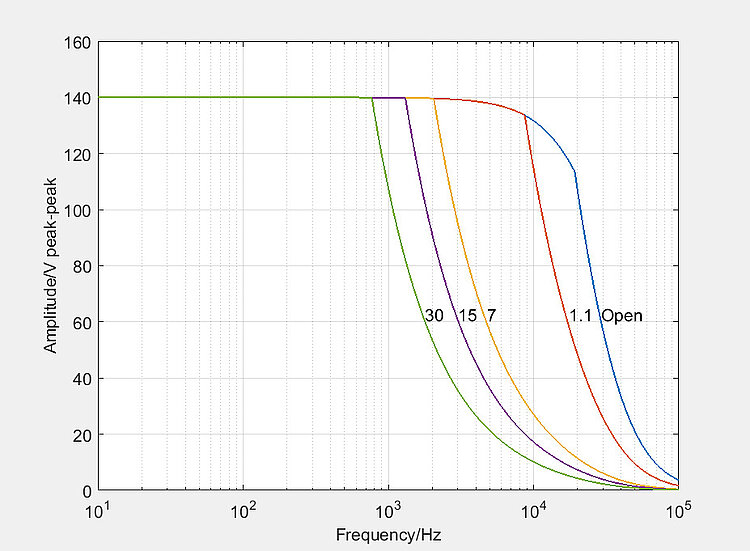

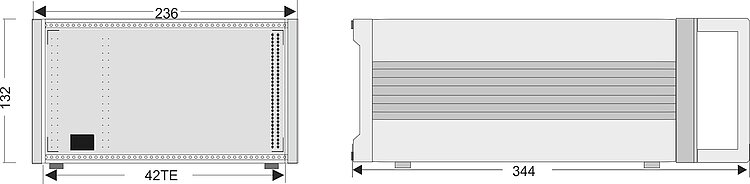

Specifications

Datasheet

Datasheet E-619

Version / Date
2023-11-20
pdf - 766 KB
Version / Date
2023-11-20
pdf - 768 KB
Version / Date
2023-11-20
pdf - 925 KB
Version / Date
2023-11-20
pdf - 851 KB

Downloads

Datasheet

Datasheet

Datasheet E-619

Version / Date
2023-11-20
pdf - 766 KB
Version / Date
2023-11-20
pdf - 768 KB
Version / Date
2023-11-20
pdf - 925 KB
Version / Date
2023-11-20
pdf - 851 KB

Documentation

Documentation

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

Version / Date
1.2.0 03/2024
pdf - 754 KB
Version / Date
1.2.0 03/2024
pdf - 791 KB
Documentation

User Manual PZ288

E-619 Modular High-Power Amplifier System for Dynamic Continuous Applications

Version / Date
2.0.0 2021-10-06
pdf - 1 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Optional upgrades

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Products Related Controllers
