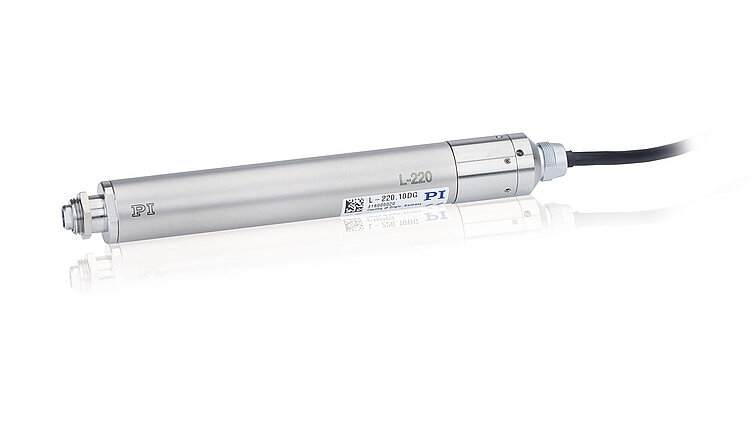

L-220 High-Resolution Linear Actuator

Suitable for a High Number of Cycles

L-220 High-Resolution Linear Actuator
Product Description Specifications Downloads Quote / Order

Reference-class linear drive

Combines high precision, high forces, and high dynamics. Versions available for vacuum environments to 10-9 hPa.

High-quality components

Ball screw for smooth feed. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.

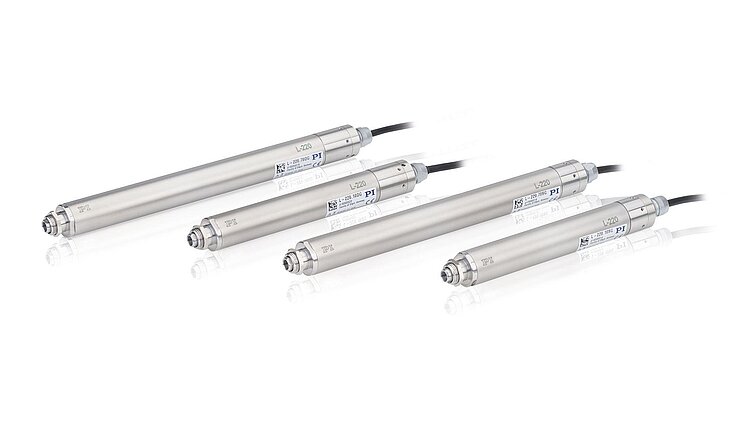

Motor variants

  • Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion of just 100 nm
  • High-performance and low-vibration 2-phase stepper motors with gear ratio allow precision positioning even without position control

Application fields

Research. Automation. Optical alignment.

Specifications

Datasheet

Datasheet L-220

Version / Date
2021-07-08
pdf - 871 KB
Version / Date
2021-07-08
pdf - 822 KB
Version / Date
2021-01-26
pdf - 472 KB

Downloads

Datasheet

Datasheet

Datasheet L-220

Version / Date
2021-07-08
pdf - 871 KB
Version / Date
2021-07-08
pdf - 822 KB
Version / Date
2021-01-26
pdf - 472 KB

Documentation

Documentation

User Manual MP149

L-220 High-Resolution Linear Actuator

Version / Date
1.4 2021-01-27
pdf - 1,018 KB
Version / Date
1.4 2021-01-27
pdf - 1 MB
Documentation

Short Instructions MP159EK

Linear Actuators: L-2xx

Version / Date
2.0.0 01/2021
pdf - 1 MB
Version / Date
2.0.0 01/2021
pdf - 818 KB

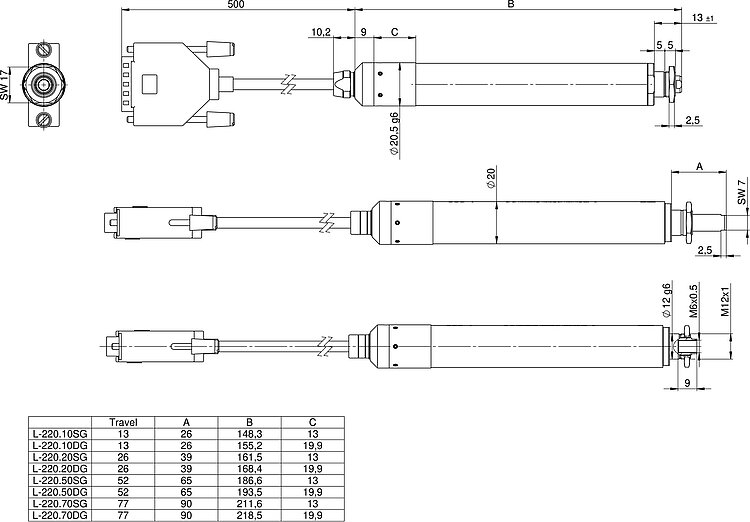

3-D Models

3-D Models

L-220 3-D model

zip - 16 MB
Separate connection cable required for motor and sensor connection respectively.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
