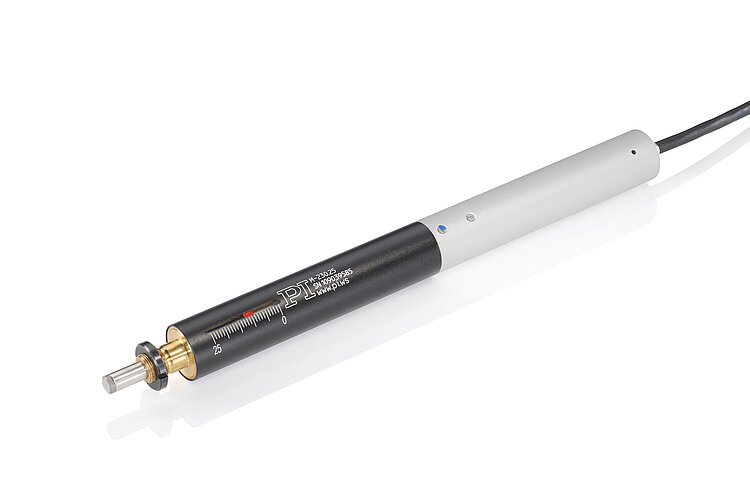

M-230 High-Resolution Linear Actuator with DC and Stepper Motor

Nonrotating Tip, Limit Switches

M-230 High-Resolution Linear Actuator with DC and Stepper Motor
Product Description Specifications Downloads Quote / Order
  • Min. incremental motion 0.05 µm
  • Travel ranges 10 and 25 mm
  • Nonrotating end piece
  • Velocity to 1.2 mm/s
  • MTBF >20000 h

Precision-class linear drive

High-resolution linear actuator. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm. Low-vibration 2-phase stepper motors with gearhead allow for smooth and accurate open-loop positioning.

High-quality components

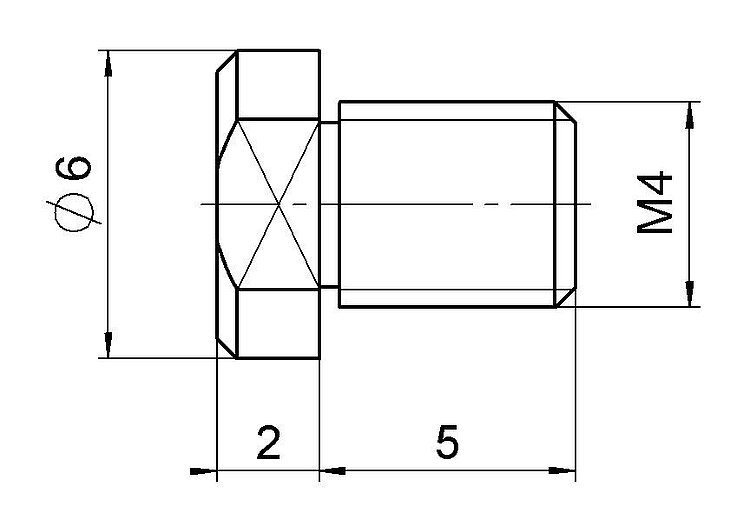

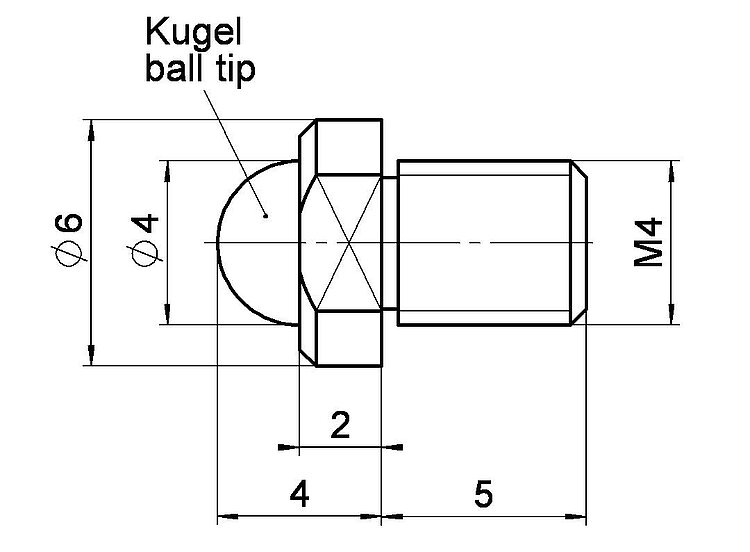

Extremely low-friction and backlash-free construction. Nonrotating end piece for uniform motion prevents wobble, torque, and wear at the point of contact. Includes flat and spherical end piece for decoupling of lateral and tilt forces. Noncontact limit switches protect the mechanical system. Closed-loop variants with differential encoder driver for a safe position signal transmission at distances up to 10 m.

Application fields

Precision alignment, motorized alternative for micrometer screws.

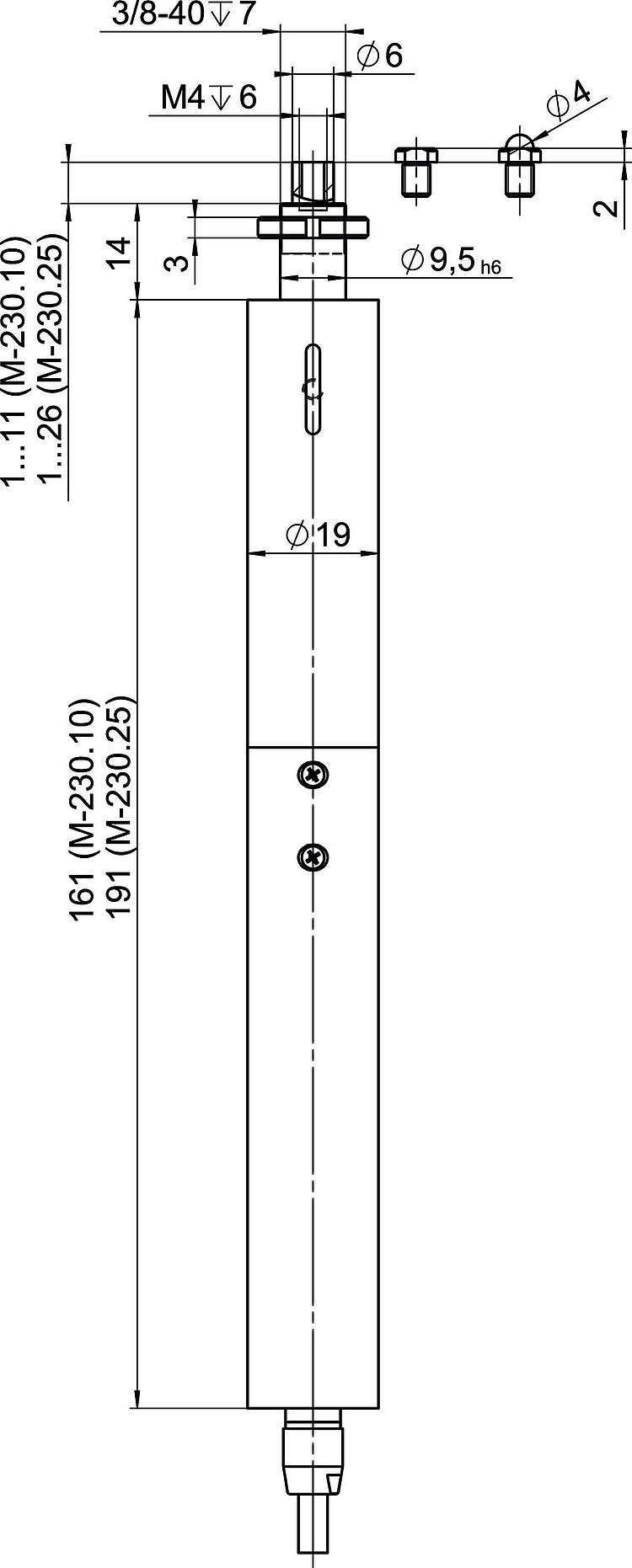

Specifications

Datasheet

Datasheet M-230

Version / Date
2019-05-07
Version / Date
2019-05-07
Version / Date
2019-07-31
Document language
pdf - 388 KB
pdf - 391 KB
pdf - 751 KB

Downloads

Product Note

Product Note

Product Change Notification Lable Change M-products

Version / Date
2019-10-01
Document language English
pdf - 230 KB
Product Note

Product Change Notification M-Portfolio Streamlining 2

M-227.10S, M-230.10V, M-230.25V, M-232.17S, M-235.22S, M-235.2VD, M-235.2VG, M-235.52S, M-235.5VD, M-235.5VG
Version / Date
2019-04-05
Document language English
pdf - 71 KB

Datasheet

Datasheet

Datasheet M-230

Version / Date
2019-05-07
Version / Date
2019-05-07
Version / Date
2019-07-31
Document language
pdf - 388 KB
pdf - 391 KB
pdf - 751 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x
Version / Date
2.2.0 02/2018
Document language English
pdf - 375 KB
Documentation

User Manual MP102

M-230 High-Resolution Linear Actuator
Version / Date
2013-12-09
Version / Date
2013-12-09
Document language
pdf - 859 KB
pdf - 894 KB

3-D Models

3-D Models

M-230 3-D model
