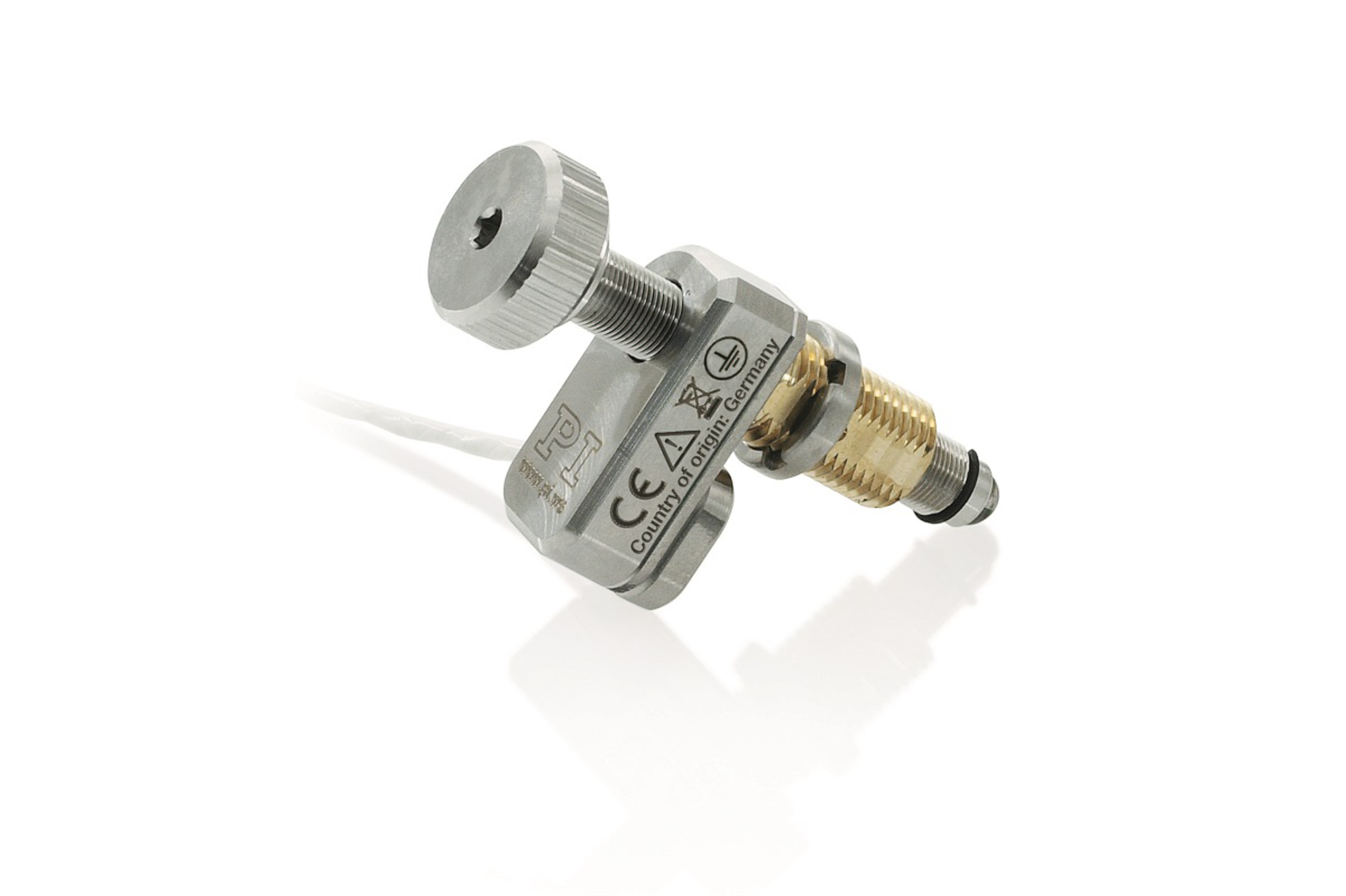

N-470.V PiezoMike Linear Actuator

Minimum Dimensions, High Forces, Stable Positioning, Vacuum to 10-6 hPa

N-470.V PiezoMike Linear Actuator
Product Description Specifications Downloads Quote / Order
  • Holding force 100 N
  • Step size 20 nm
  • Travel range 7 mm to 26 mm
  • Compact design
  • Feed force 22 N
  • Lifetime >1,000,000,000 steps

Linear actuator with piezo motors

Linear screw-type actuator with piezo inertia drive for high-resolution and stable positioning. Open-loop operation in full-step mode.

Piezo motors

Compact, inexpensive inertia drive principle (stick-slip). The drive is self-locking at rest, requires no current, and does not generate any heat. It holds the position with maximum force.

Alignment of mechanical and optomechanical components

Stable adjustment in optical paths. Long-term positioning: High stability at target position, reliable startup even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanical thread translation. Vacuum-compatible to 10-6 hPa.
