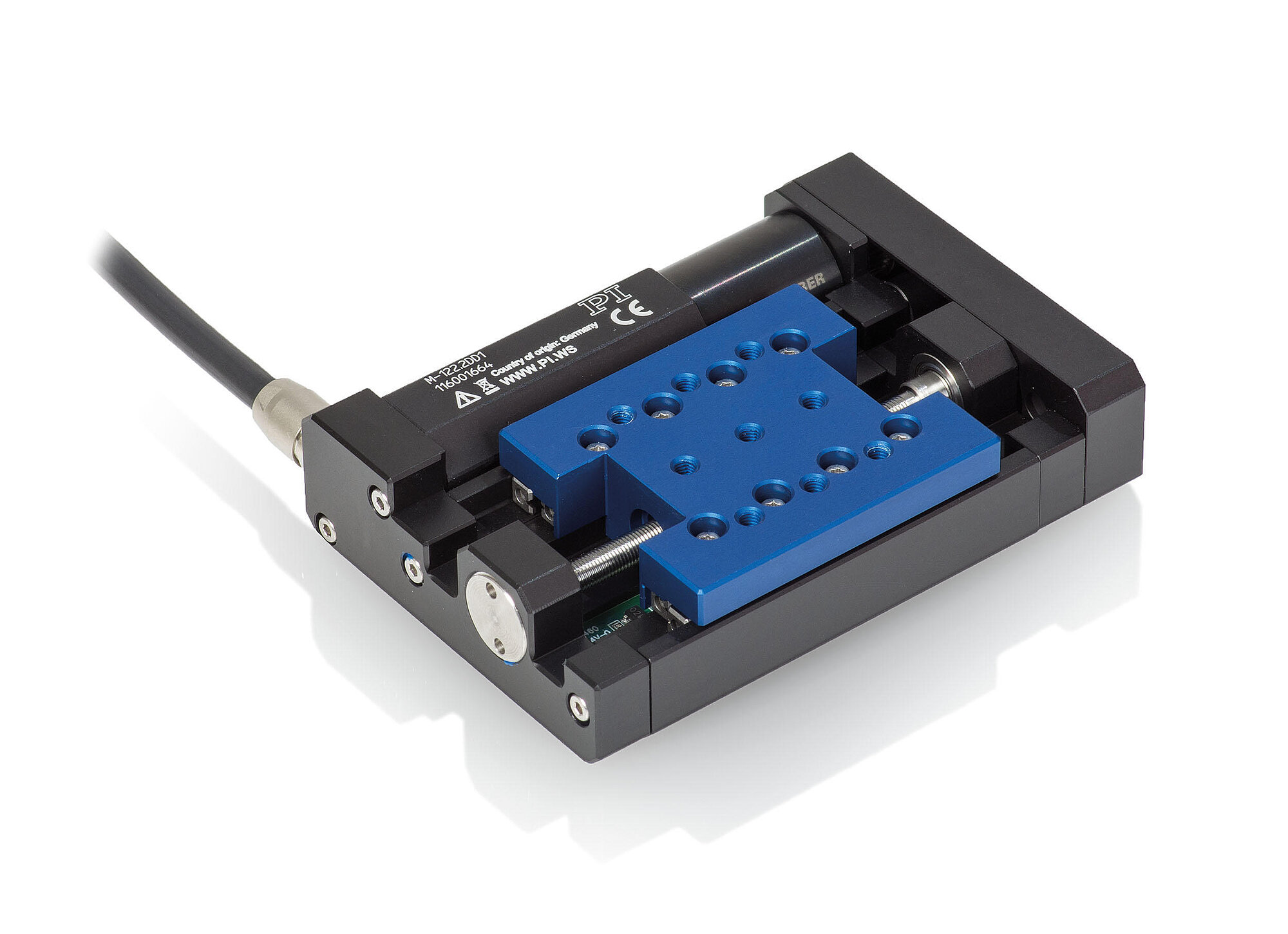

Microtranslation stage; DC motor; 25 mm travel range; 50 N load capacity; 20 mm/s maximum velocity; ball screw; incremental linear encoder, 100 nm sensor resolution, A/B quadrature, RS-422; 0.5 m cable length
- Travel range 25 mm
- Integrated linear encoder for maximum accuracy with 0.1 µm resolution
- Minimum incremental motion 0.2 µm
- Max. Velocity 20 mm/s
- Recirculating ball screw provides high velocity and long lifetime
Highly accurate position measuring with incremental linear encoder
Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.
