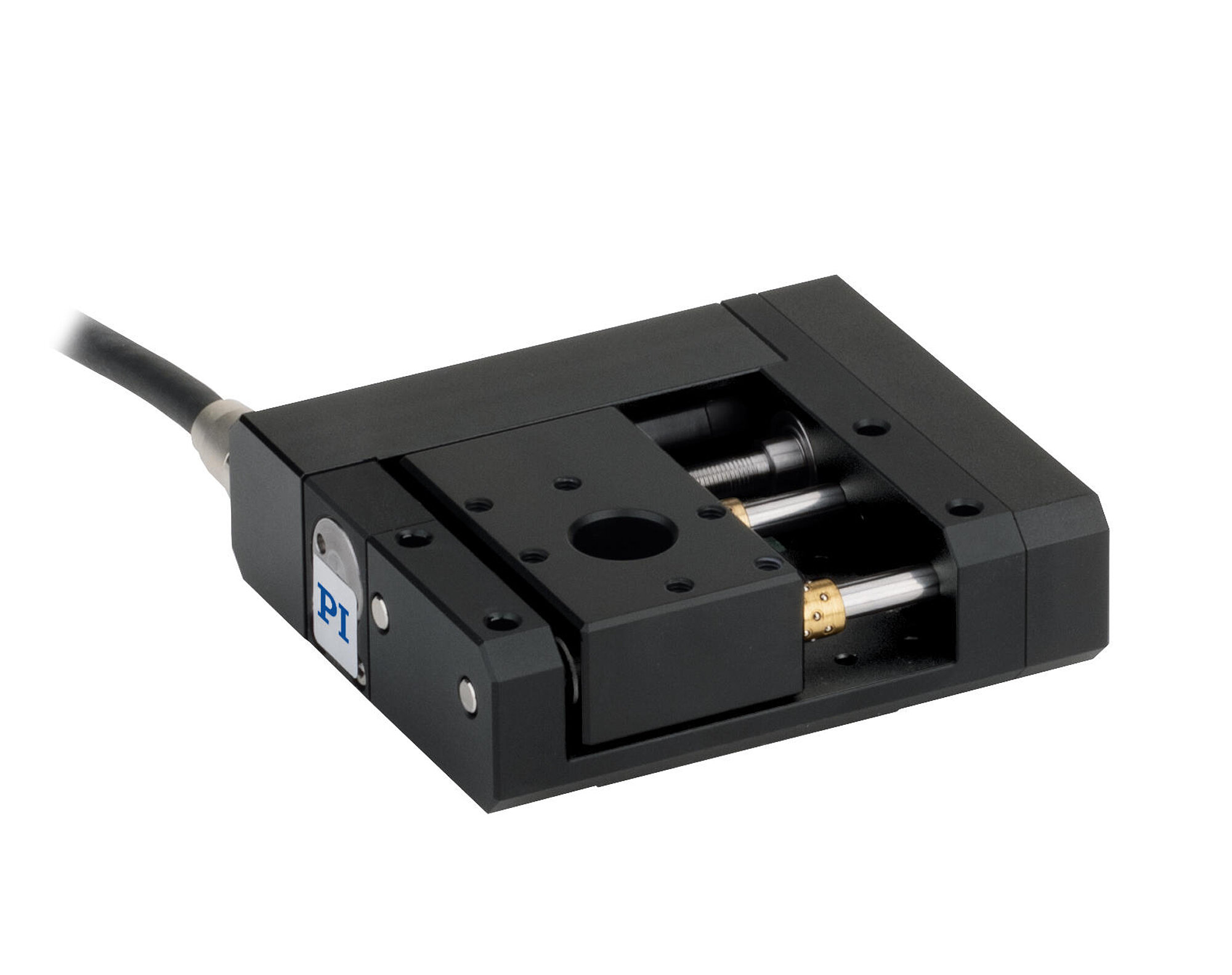

Compact linear stage, versatile in use

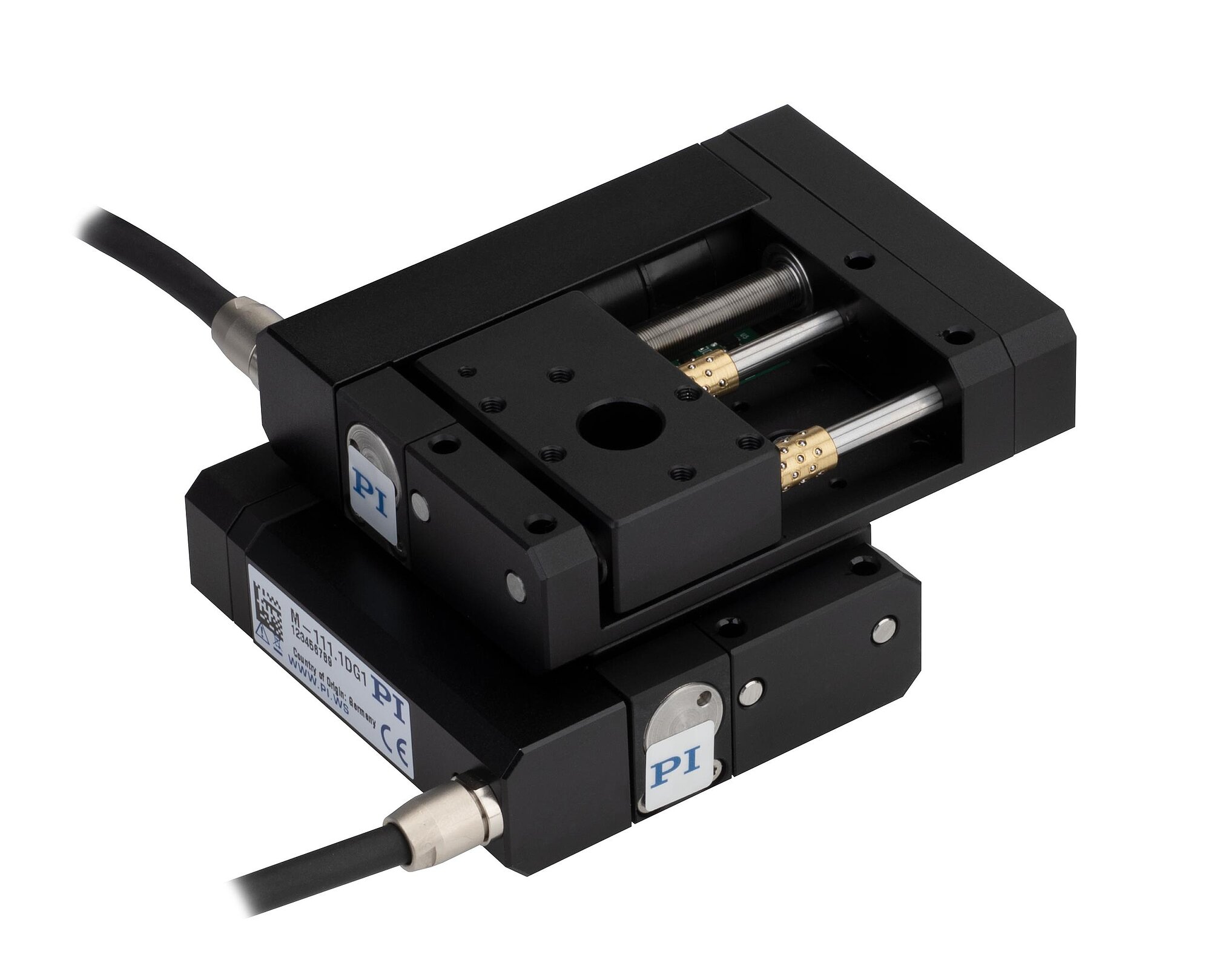

Linear stage with compact size due to folded drive with belt drive. Clear aperture with 10 mm Ø. XY setups can be mounted directly without adapter plate.
- 2-phase stepper motor or closed-loop DC gear motor
- Backlash-compensated leadscrew or ball screw
- Variants with DC gear motor: Rotary encoder on the motor shaft
- Noncontact Hall effect reference and limit switches
Precision microassembly. Research. Laser marking. Automation. Optical alignment.
Product Change Notification M-110.xxx, M-111.xxx, M-112.xxx
Short Instructions MP119EK
Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx
User Manual M110T0032
M-110.xxx1 / M-111.xxx1 / M-112.xxx1 Microtranslation Stage
PI Mounting Adapters for Micropositioning
Overview of all possible combinations of PI linear, rotary and tilt stages
M-11x.xxx1 3-D model
Animated 3-D Models
Animated 3-D Model M-112.xxx1
Animated 3-D Model M-110.xxx1
Animated 3-D Model M-111.xxx1
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
