M-110.C86311 Linear Stage System

Compact Linear Stage, DC Gear Motor, 5 mm Travel Range, with Controller

M-110.C86311 Linear Stage System
Product Description Specifications Downloads Quote / Order

Compact linear stage

Linear stage with compact size due to folded drive with belt drive. Clear aperture with 10 mm Ø. XY setups can be mounted directly without adapter plate.

Drive

  • Closed-loop DC gear motor
  • Backlash-compensated leadscrew

Position measuring

  • Rotary encoder on the motor shaft
  • Noncontact Hall effect reference and limit switches

Application fields

Precision microassembly. Research. Laser marking. Automation. Optical alignment.

Specifications

Datasheet

Datasheet M-110.C86311

Version / Date
2020-08-04
Version / Date
2020-08-04
Document language
pdf - 845 KB
pdf - 849 KB

Downloads

Datasheet

Datasheet

Datasheet M-110.C86311

Version / Date
2020-08-04
Version / Date
2020-08-04
Document language
pdf - 845 KB
pdf - 849 KB

Documentation

Documentation

Technical Note M110T0034

M-110.C86311 Compact precision linear stage system
Version / Date
2020-08-06
Document language English
Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

M-110.C86311

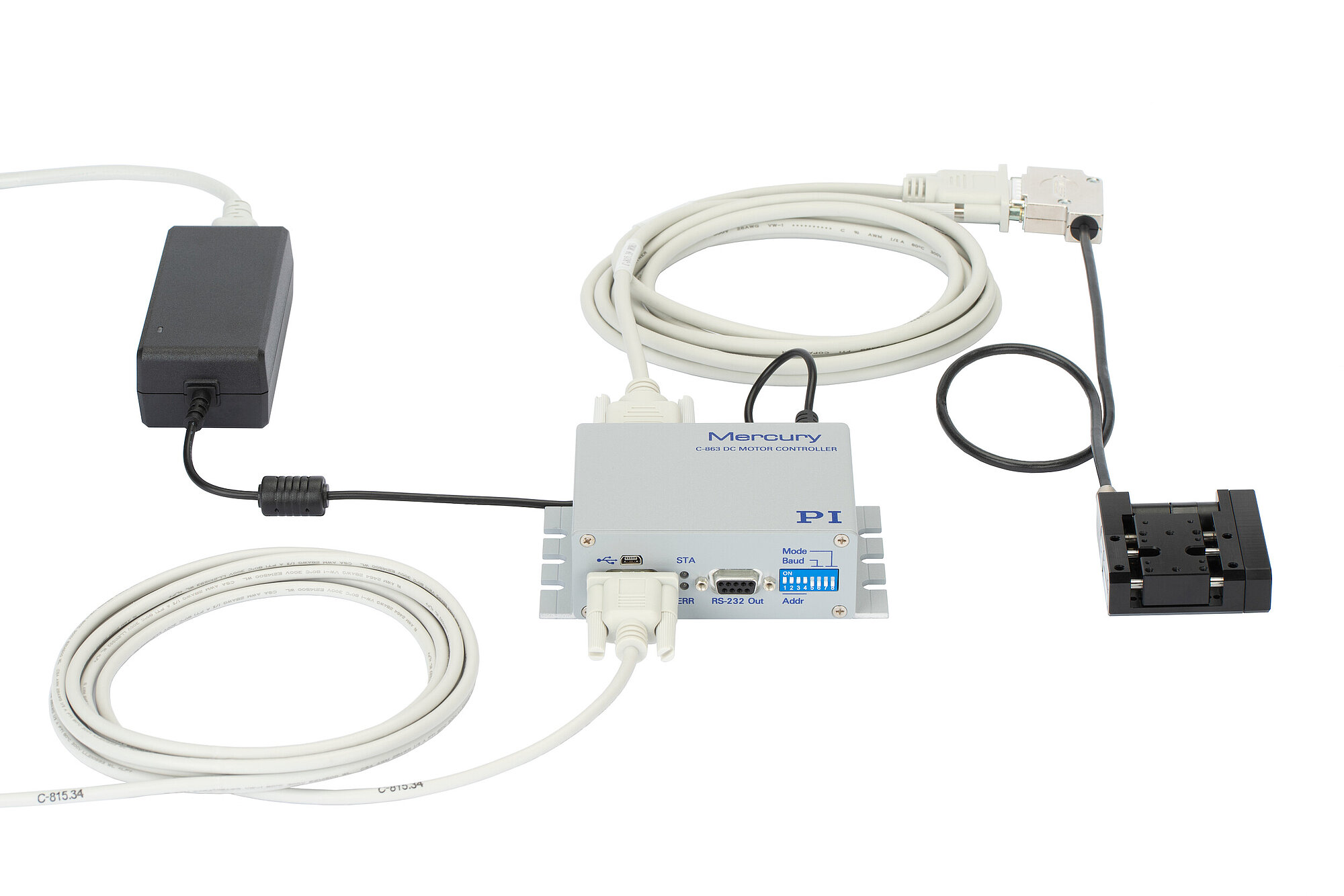

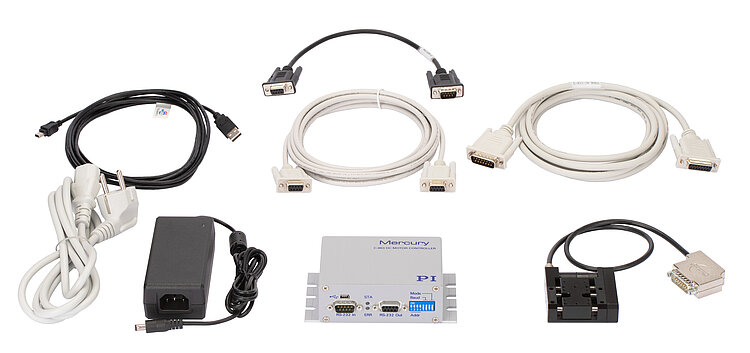

System of compact M-110 linear stage, 5 mm travel range, 30 N load capacity, DC gear motor, rotary encoder, leadscrew, and C-863.11 Mercury DC motor controller, incl. connection cable, interface cables, and power adapter with power cord
