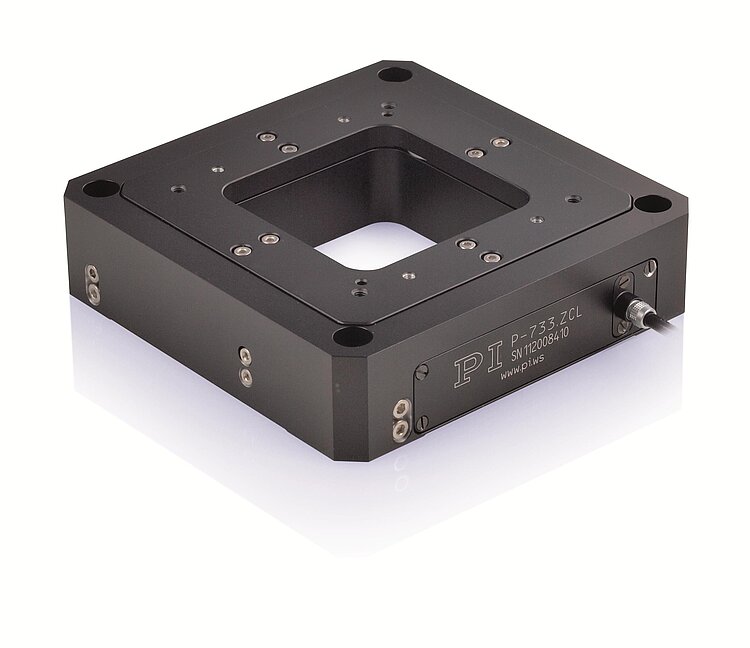

P-733.Z High Dynamics Z Nanopositioning Stage

Direct Position Measuring and Clear Aperture

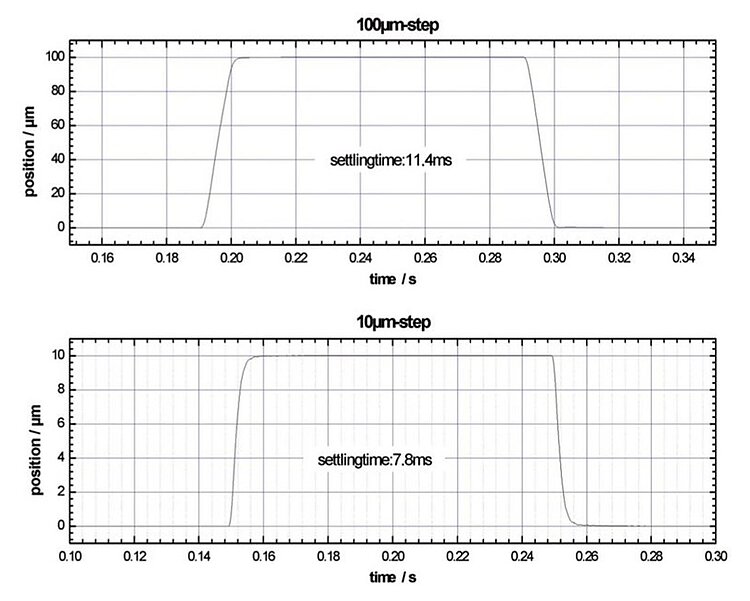

  • Travel range 100 µm
  • Direct position measuring with capacitive sensors
  • Resolution to 0.3 nm, closed loop

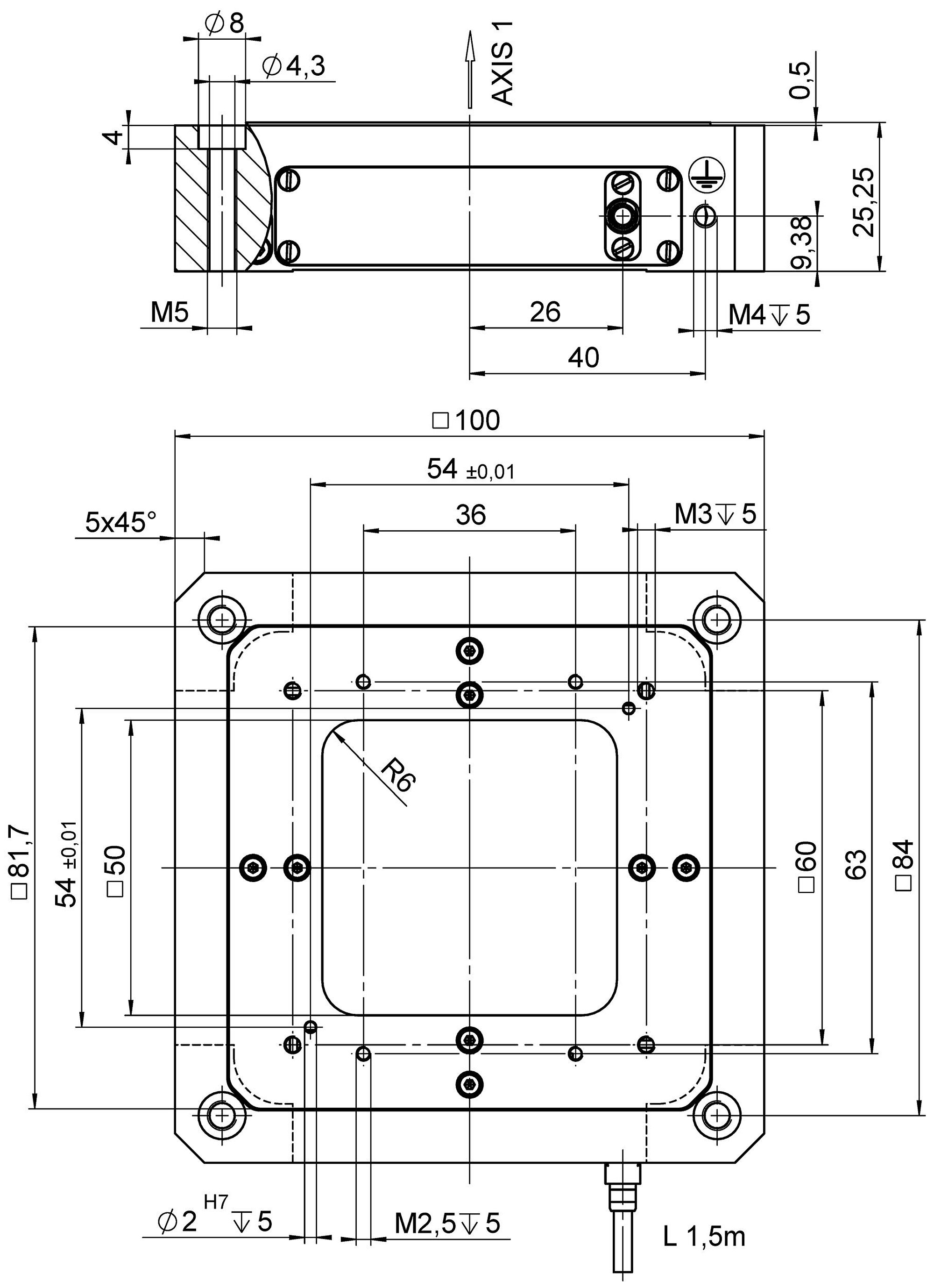

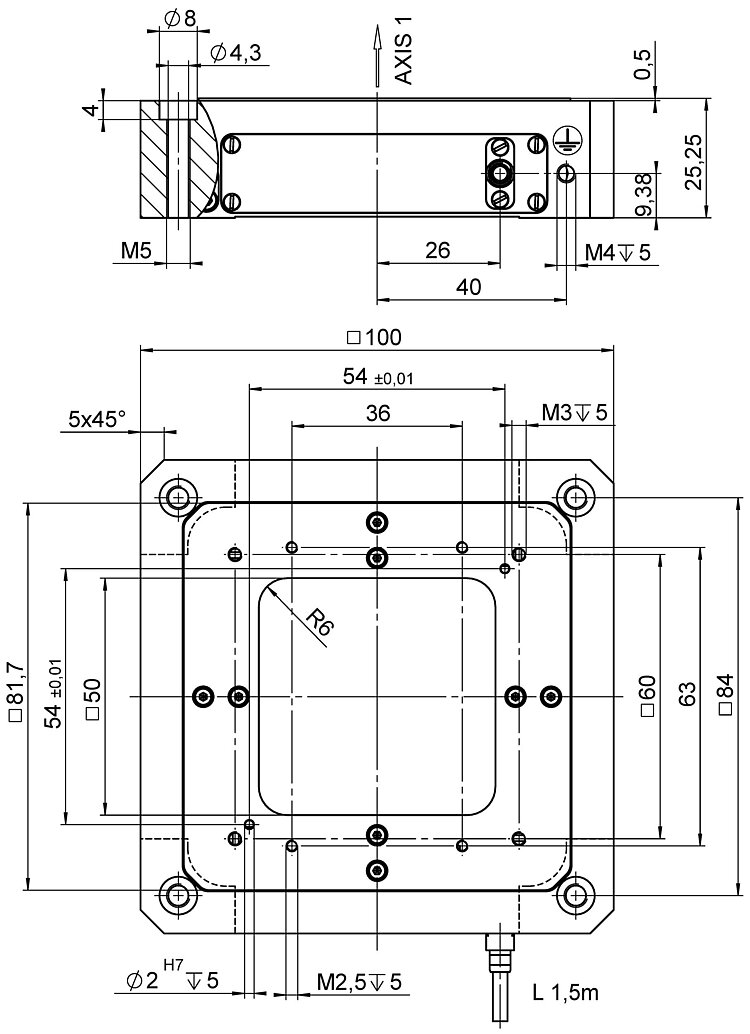

  • Clear aperture 50 mm × 50 mm
  • Other versions available with additional degrees of freedom
  • XY and XYZ versions available
  • Vacuum-compatible versions on request
P-733.Z High Dynamics Z Nanopositioning Stage
Product Description Specifications Downloads Quote / Order

Application fields

  • Scanning microscopy
  • Confocal microscopy
  • Mask/wafer positioning
  • Surface measuring technology
  • Nanoimprinting
  • Micromanipulation
  • Image processing / stabilization
  • Nanopositioning with high flatness and straightness of motion

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

Automatic configuration and fast component exchange

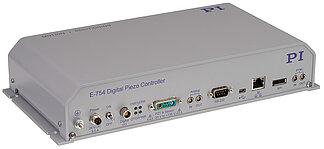

Mechanics and controllers can be combined as required and exchanged quickly. All servo and linearization parameters are stored in the ID chip of the D-sub connector of the mechanics. The autocalibration function of the digital controllers uses this data each time the controller is switched on.

Maximum accuracy due to direct position measuring

Motion is measured directly at the motion platform without any influence from the drive or guide elements. This allows optimum repeatability, outstanding stability, and stiff, fast-responding control.

Specifications

Datasheet

Datasheet P-733.Z

Version / Date
2023-12-11
pdf - 789 KB
Version / Date
2023-12-11
pdf - 794 KB

Downloads

Datasheet

Datasheet

Datasheet P-733.Z

Version / Date
2023-12-11
pdf - 789 KB
Version / Date
2023-12-11
pdf - 794 KB

Documentation

Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date
6.2.0 03/2024
pdf - 561 KB
Version / Date
6.2.0 03/2024
pdf - 595 KB
Documentation

User Manual PZ103

P-733, P-734 Piezo Nanopositioning Systems with Capacitive Sensors

Version / Date
1.1.0 2020-10-26
pdf - 2 MB
Version / Date
1.1.0 2020-10-26
pdf - 2 MB

3-D Models

3-D Models

P-733.Z 3-D model

zip - 370 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
