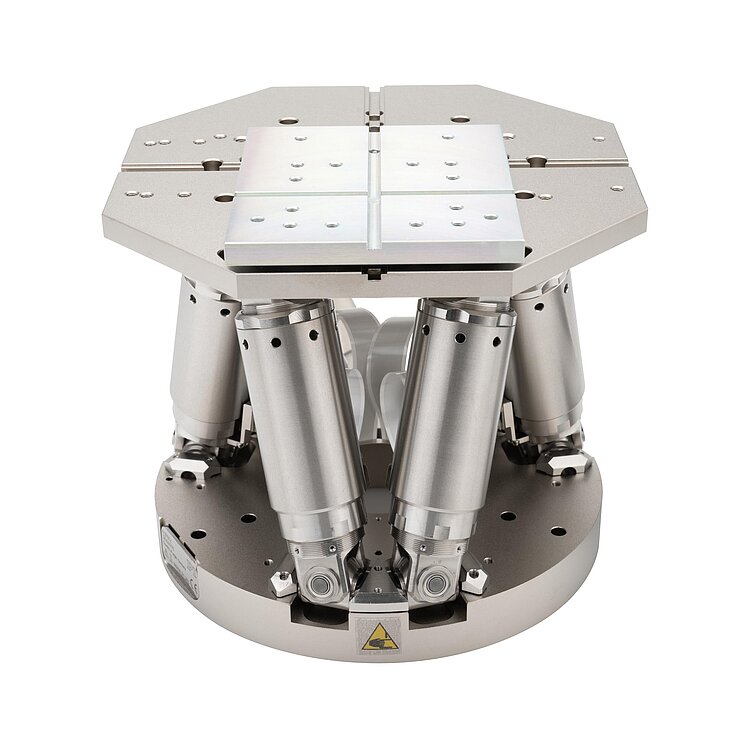

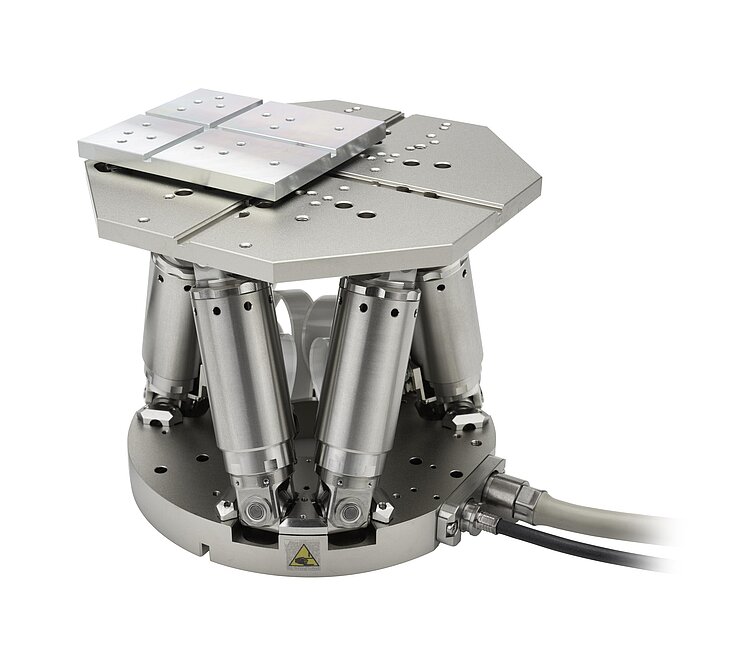

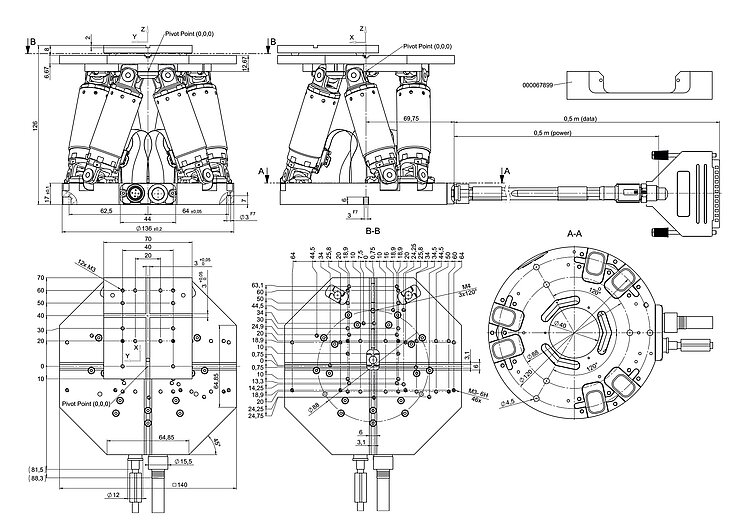

H-811.F2 6-Axis Miniature Hexapod

Ideal for Fiber Alignment

H-811.F2 6-Axis Miniature Hexapod
Product Description Specifications Downloads Quote / Order
  • Travel ranges to ±17 mm / ±21°
  • Compact design
  • Removable magnetic plate
  • High dynamics and precision
  • Freely programmable, virtual pivot point
  • Superior lifetime

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Extensive Software Package

The software package supplied in the scope of delivery allows integration of the system into virtually any environment. All common operating systems such as Windows, Linux, and macOS as well as a large number of common programming languages are supported including Python, MATLAB and NI LabVIEW. Thanks to sophisticated program examples and the use of software tools such as PIMikroMove, the time between starting integrating and productive operation is shortened considerably.

Brushless DC motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

Removable magnetic plate

Accelerate your workflows. The next workpiece can be prepared parallel to our automated process step. The removable magnetic plate can be disassembled quickly without tools and subsequently reassembled accurately each time.

PI Hexapod Simulation Tool

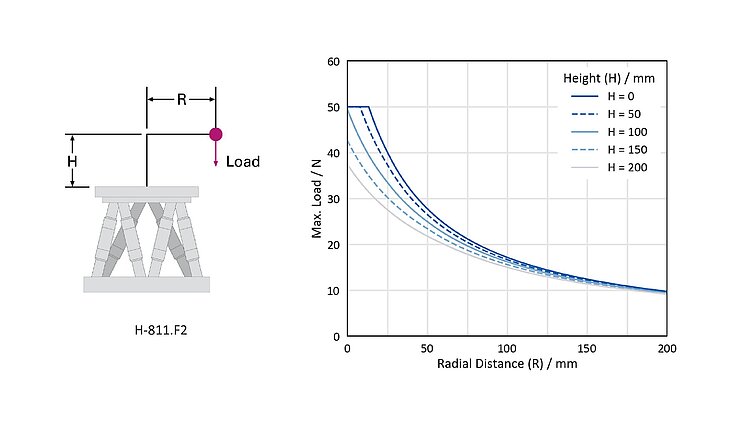

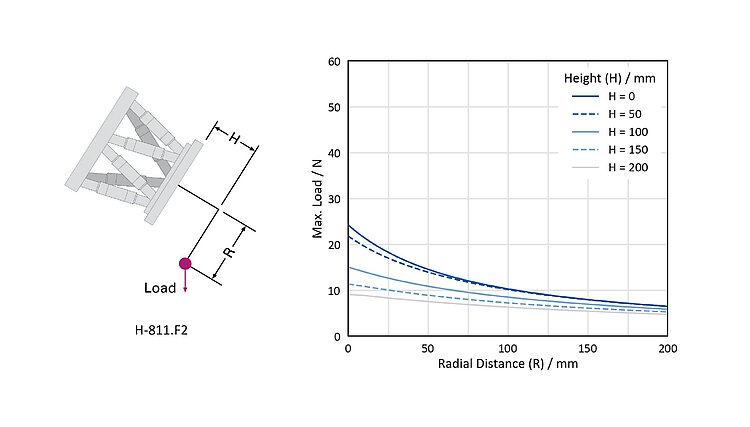

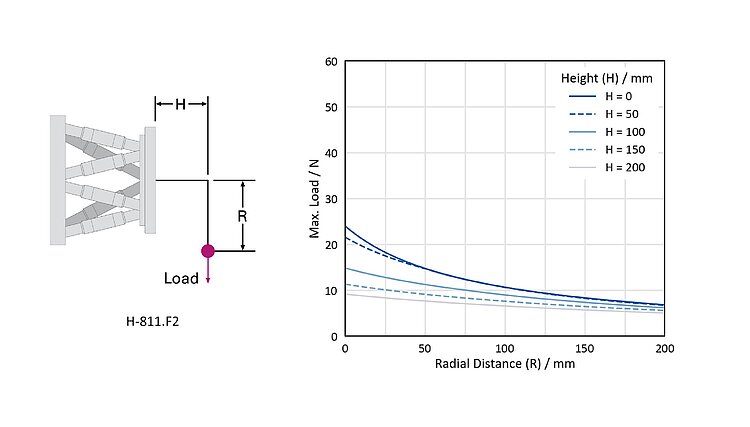

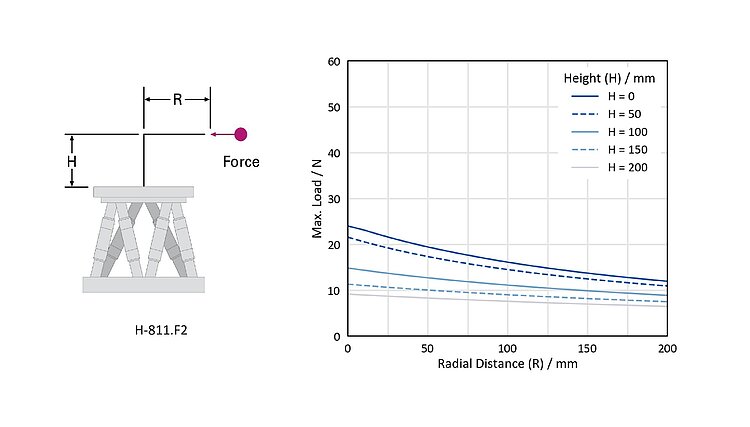

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry, micromanufacturing, fiber alignment, and alignment of optical components.

Specifications

Datasheet

Datasheet H-811.F2

Version / Date
2020-02-20
Version / Date
2020-02-20
Version / Date
2018-05-15
Version / Date
2018-12-12
Document language
pdf - 902 KB
pdf - 909 KB
pdf - 814 KB
pdf - 789 KB

Downloads

Product Note

Product Note

Product Change Notification H-811 Vent Holes

Version / Date
2019-03-04
Document language English
pdf - 206 KB
Product Note

Product Change Notification Cable Change H-811.S2/H-811.F2

Version / Date
2019-05-10
Document language English
pdf - 196 KB

Datasheet

Datasheet

Datasheet H-811.F2

Version / Date
2020-02-20
Version / Date
2020-02-20
Version / Date
2018-05-15
Version / Date
2018-12-12
Document language
pdf - 902 KB
pdf - 909 KB
pdf - 814 KB
pdf - 789 KB

Documentation

Documentation

User Manual MS235

H-811.I2, H-811.I2V, H-811.F2, and H-811.S2 miniature hexapods
Version / Date
2.3.0 2019-12-02
Version / Date
2.3.0 2019-12-02
Document language
Request download link
Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller
Version / Date
1.2 0 12/2019
Version / Date
1.2.0 12/2019
Document language
pdf - 2 MB
pdf - 2 MB

3-D Models

3-D Models

H-811-F2 3-D model

Document language English
Request download link

Software Files

Software Files

Hexapod Simulation Tool

Version / Date
2020-02-10
Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

H-811.F2
Miniature-Hexapod microrobot for optical alignment, removable magnetic plate, brushless DC motor, 5 kg load capacity, 20 mm/s velocity , 0.5 m cable length, including 3 m cable set

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
