H-824 6-Axis Hexapod

Compact and Precise

  • Load capacity to 10 kg, self-locking version
  • Travel ranges to 45 mm / 25°
  • Minimum incremental motion to 0.3 µm
  • Repeatability to ±0.1 µm / ±2 µrad
  • Velocity to 25 mm/s
H-824 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order
At the moment only a limited selection of product variants is available.

Precision-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom, making it significantly more compact and stiff than serial-kinematic systems, higher dynamics, no moved cables: Higher reliability, reduced friction. Compact due to folded drive design.

PIVirtualMove

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research. For micromanipulation, biotechnology, semiconductor manufacturing

Specifications

Datasheet

Datasheet H-824

Version / Date
2024-02-26
pdf - 1 MB
Version / Date
2024-02-26
pdf - 1 MB
Version / Date
2018-07-12
pdf - 754 KB

Downloads

Product Note

Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
pdf - 186 KB
English
Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English

Datasheet

Datasheet

Datasheet H-824

Version / Date
2024-02-26
pdf - 1 MB
Version / Date
2024-02-26
pdf - 1 MB
Version / Date
2018-07-12
pdf - 754 KB

Documentation

Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual MS200

H-824 Compact Microrobot

Version / Date
2.4.0 / 2023-01-11
pdf - 3 MB
Version / Date
2.4.0 / 2023-01-11
pdf - 3 MB

3-D Models

3-D Models

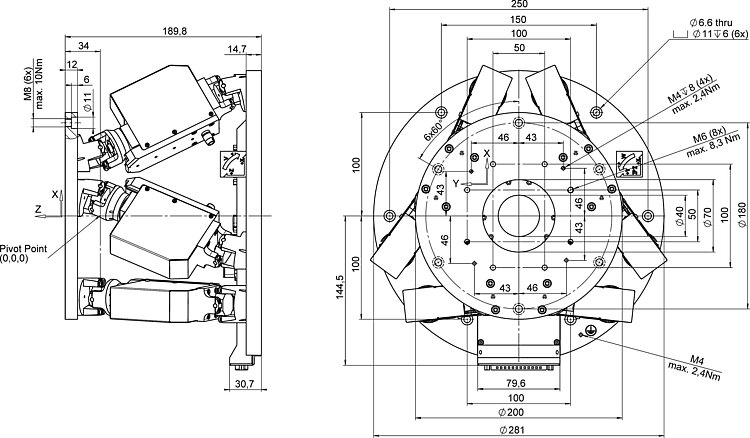

H-824.x2x 3-D model

Version / Date
2020-11-24
zip - 4 MB

Software Files

Software Files

PIVirtualMove

Version / Date
1.0.1.0, 2024-01
zip - 150 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

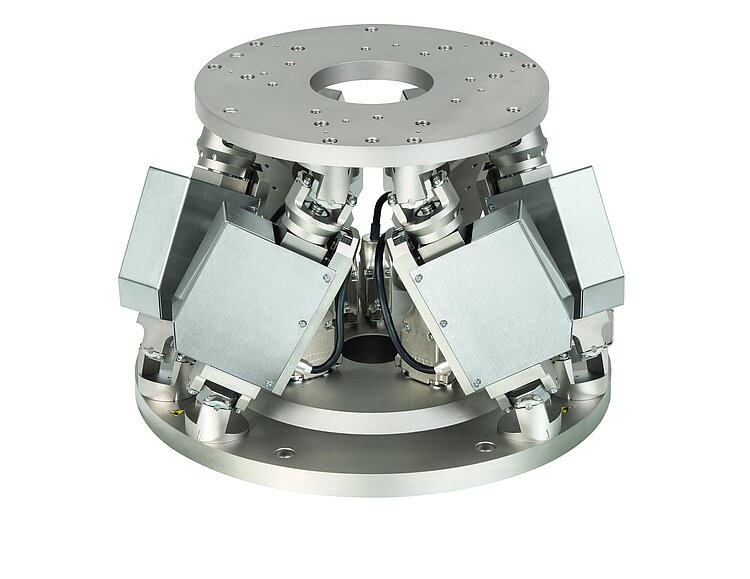

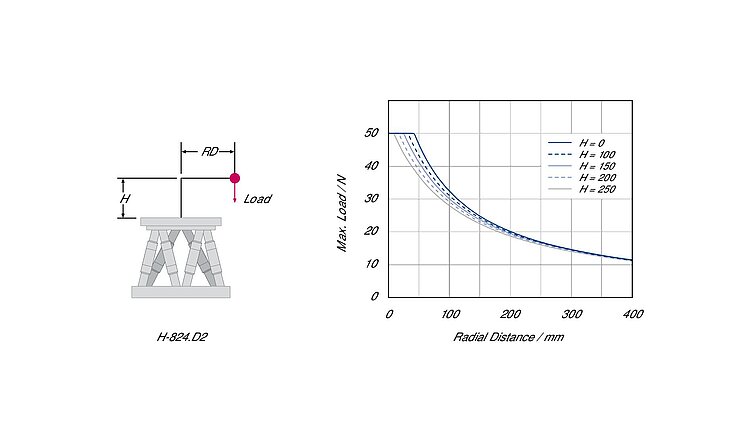

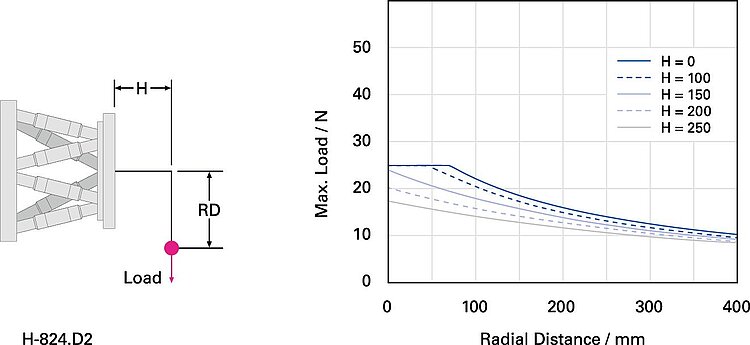

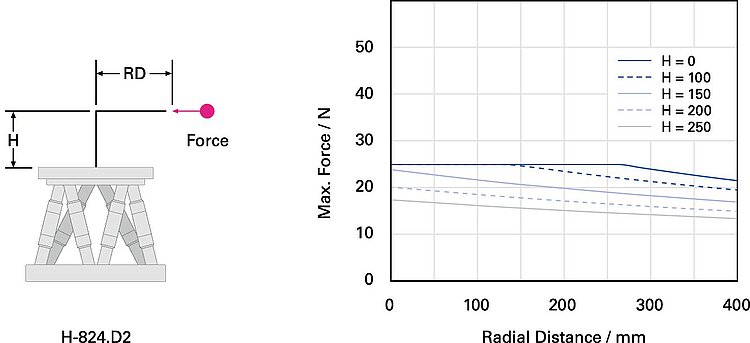

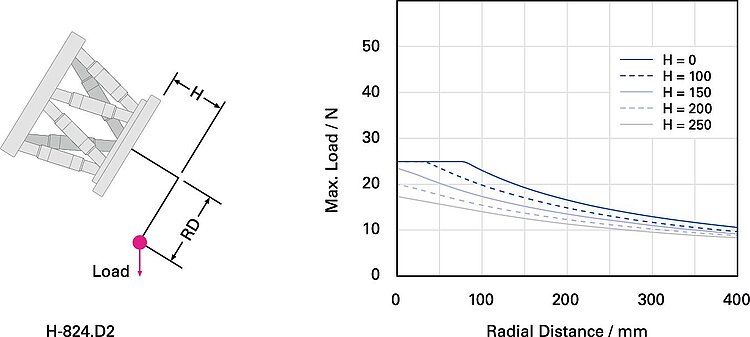

H-824.D2

Compact hexapod microrobot, direct drive, 25 mm/s, 5 kg load, D-sub connector. Connecting cables are not included in the scope of delivery and must be ordered separately.

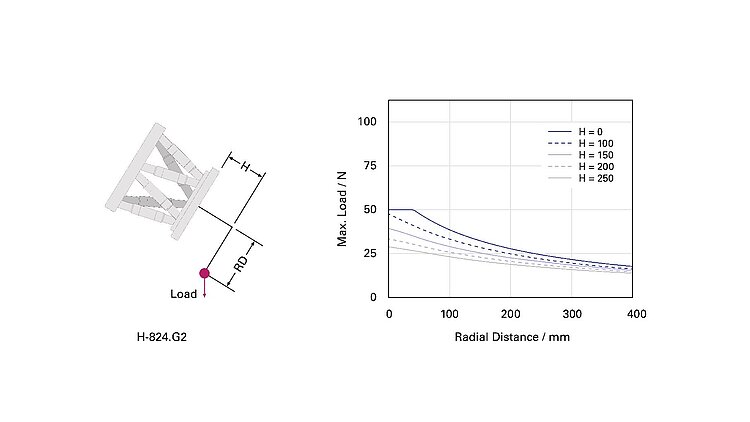

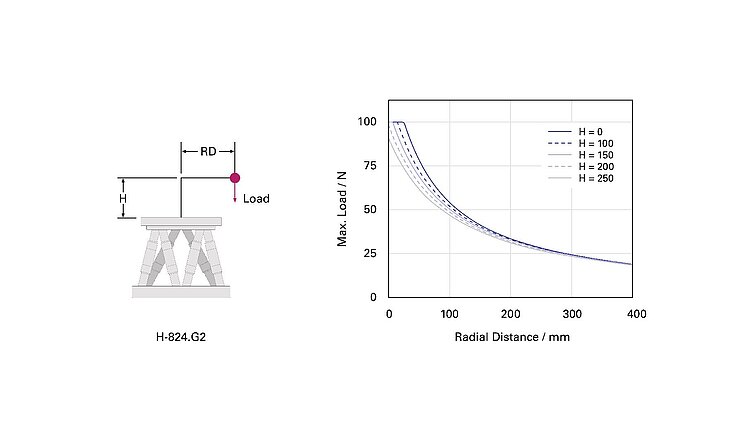

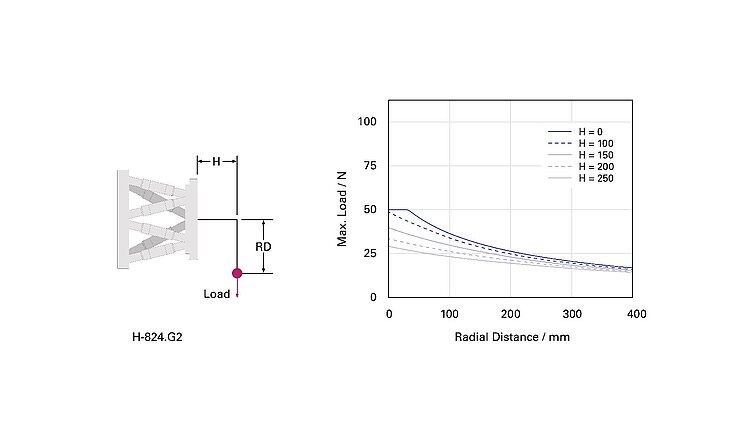

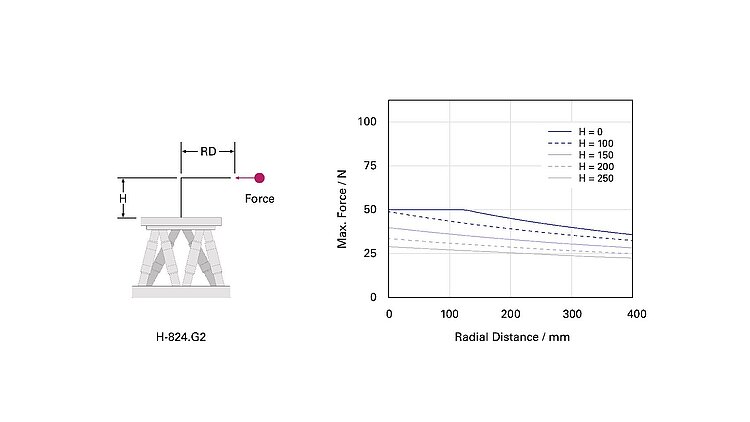

H-824.G2

Compact hexapod microrobot, gearhead, 1 mm/s, 10 kg load, D-sub connector. Connecting cables are not included in the scope of delivery and must be ordered separately.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
