PICA Piezoelectric Stack Actuators

Stack, Power and Thru

PICA piezoelectric linear actuators in stacked design are very reliable and feature a large specific displacement. The operating voltage is 1000 V.

  • PICA Stack actuators provide high forces.

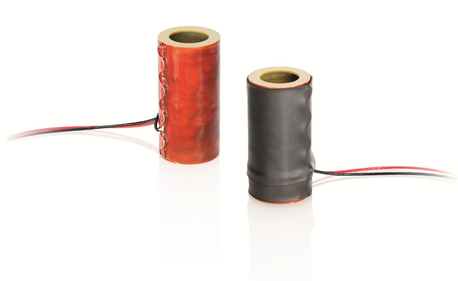

  • PICA Thru feature an inner hole, for applying a pretension or as clear aperture in optical applications.
  • PICA Power piezo actuators are made of a piezo material that allows for a higher operating temperature and thus higher dynamics.

PICA Stack Actuators

PICA Power Piezo Actuators

P-010.xxP – P-056.xxP PICA Power Piezo Actuators

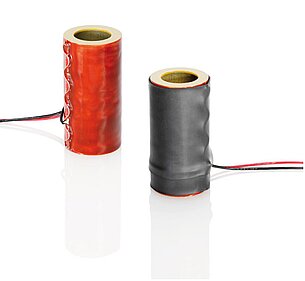

PICA Thru Ring Actuators

P-010.xxH – P-025.xxH PICA Thru Ring Actuators

PICA Stack Piezo Actuators

P-007 – P-056 PICA Stack Piezo Actuators

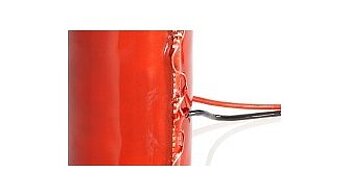

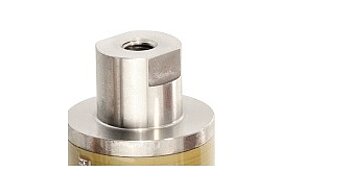

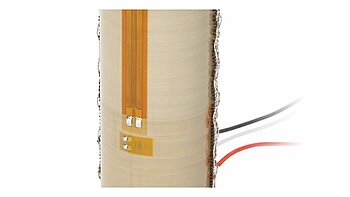

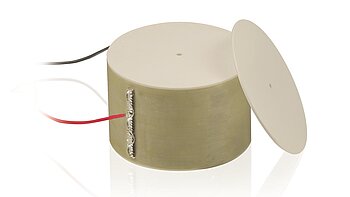

PICA piezoelectric linear actuators are produced in a wide range of shapes. Depending on the application, they can also be assembled with adapted ceramic or metal end pieces, additional coating, temperature sensors, etc. On request, we gladly offer you customized products.

Applications and Markets

  • Laser technology and laser beam control
  • High-load precision positioning
  • Precision mechanics and precision machining
  • Switching applications
  • Active vibration damping

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI Ceramic sales engineer.



Piezoelectric Actuators

Components, Technologies, Operation

Version / Date
CAT128 R2
pdf - 11 MB
Version / Date
CAT128 R2
pdf - 5 MB
White Paper

PICA Stack Reliability Investigation

Some typical test results that demonstrate the reliability of PICA Stack actuators under AC- and DC-operation conditions.
