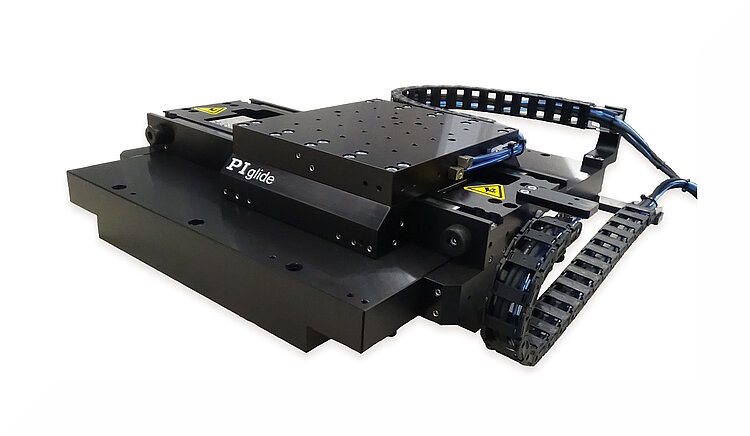

A-311 PIglide IS Planar Scanner with Air Bearing

High-Performance, Compact XY Nanopositioning System

A-311 PIglide IS Planar Scanner with Air Bearing
Product Description Specifications Downloads Quote / Order
  • Ideal for scanning applications or high-precision positioning
  • Cleanroom compatible
  • Travel ranges to 200 mm × 200 mm
  • Load capacity to 147 N
  • Low profile
  • Resolution to 1 nm

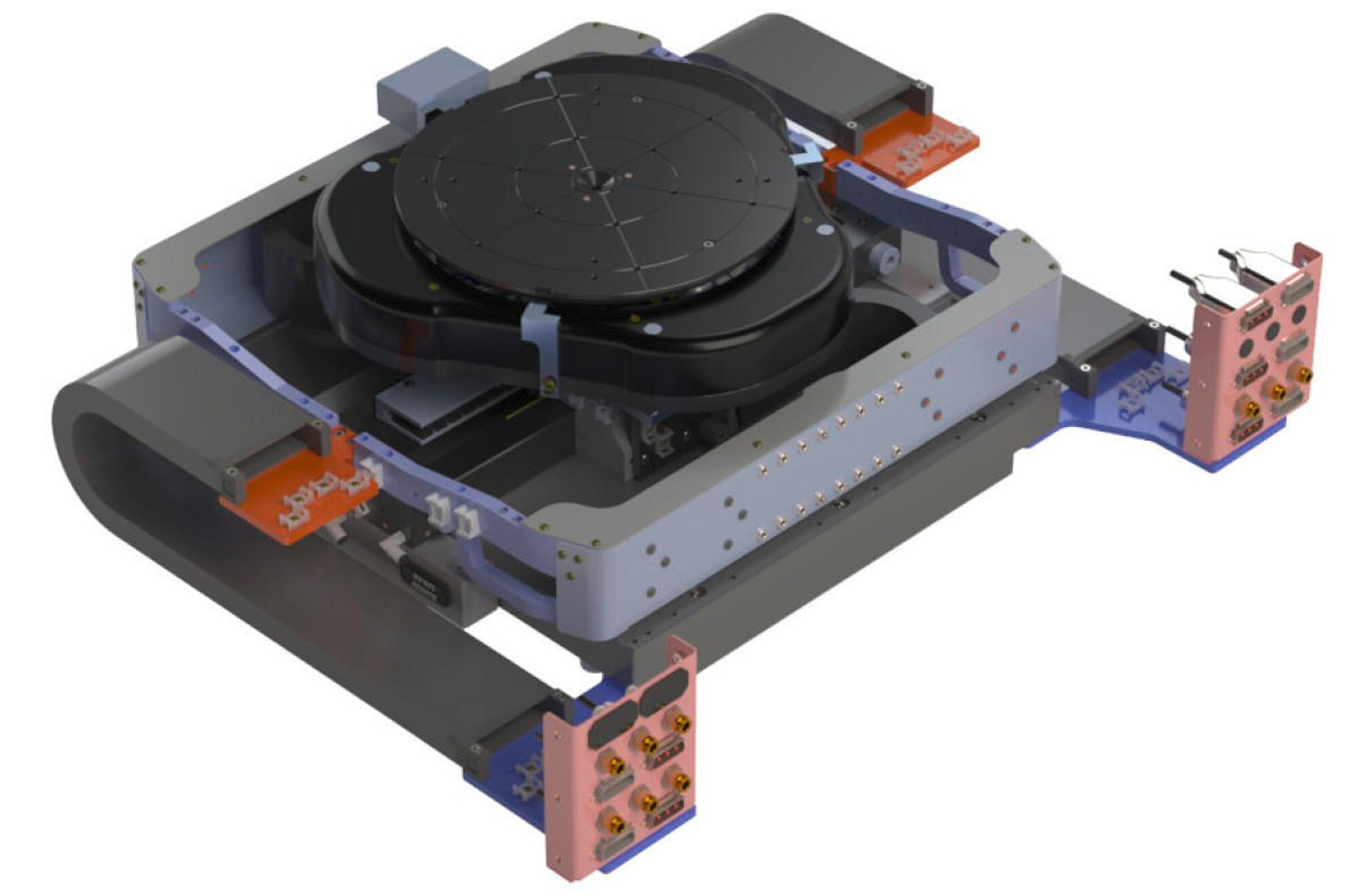

Product overview

The high-precision PIglide IS XY planar scanner with air bearing has a flat design and is an alternative to the stacked XY stages. The efficient, compact design saves space in machines with limited installation space.

PIMag® magnetic direct drive

3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Operation with digital controllers from leading manufacturers offers advanced control algorithms for improving the dynamics and error compensation.

Accessories and options

  • Encoder
  • PIglide filter and air preparation kit
  • Multi-axis motion controller and direct drives
  • Machine bases
  • Base plates made of granite and systems for reducing vibration

Application fields

PIglide positioning systems are ideally suited for high-precision applications, such as inspection systems, laser marking, microscopy or scanning.

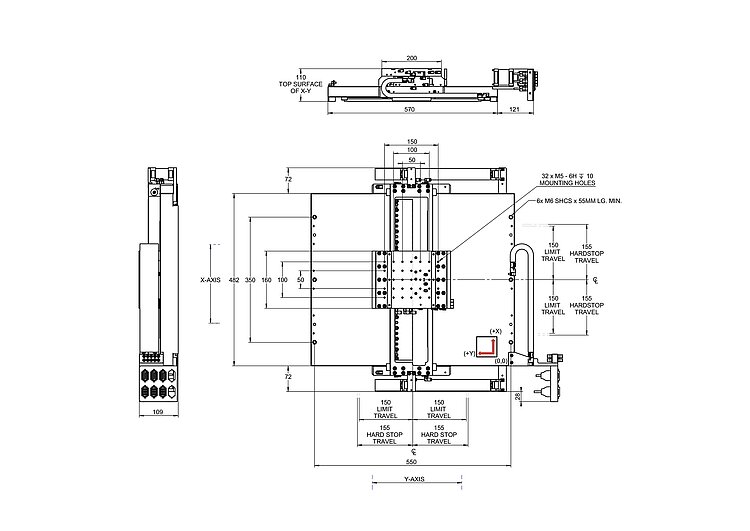

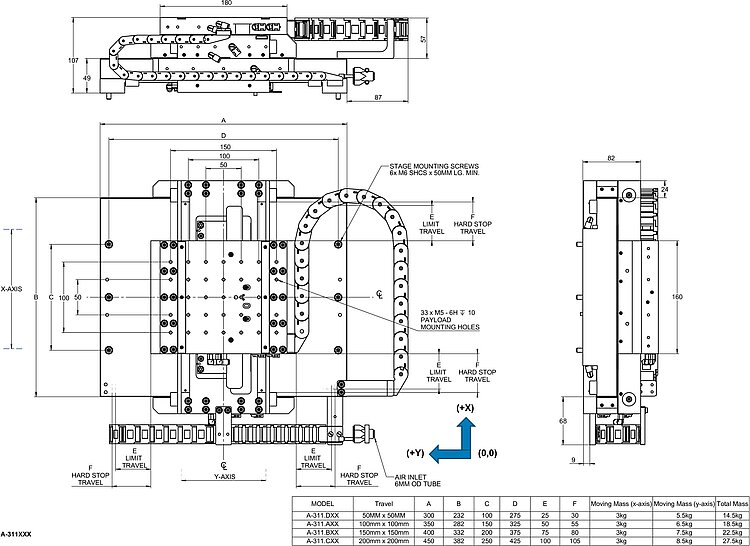

Specifications

Datasheet A-311

Version / Date
2018-07-27
Version / Date
2018-07-27
Version / Date
2018-08-16
Document language
pdf - 675 KB
pdf - 685 KB
pdf - 800 KB

Downloads

Product Note

Product Change Notification A-xxx.*C1

Version / Date
2018-08-02
Document language English
pdf - 71 KB

Datasheet

Datasheet A-311

Version / Date
2018-07-27
Version / Date
2018-07-27
Version / Date
2018-08-16
Document language
pdf - 675 KB
pdf - 685 KB
pdf - 800 KB

Documentation

User Manual A311D0001

A-311 PIglide IS: Planar XY Air Bearing Stage
Version / Date
2016-11-26
Document language English
pdf - 1 MB

3-D Models

A-311 STEP

Version / Date
2017-03-01

Others

Whitepaper: Air Bearings: When to Use and When to Avoid in Your Motion Application

All Positioning Stages are not Created Equal. Author: Matt Reck, PI
Version / Date
WP4003 2015-09
Document language English
pdf - 3 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

A-311.AA1
PIglide IS Planarscanner, air bearing, 100 mm × 100 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V
A-311.AB1
PIglide IS Planarscanner, air bearing, 100 mm × 100 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V
A-311.BA1
PIglide IS Planarscanner, air bearing, 150 mm × 150 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V
A-311.BB1
PIglide IS Planarscanner, air bearing, 150 mm × 150 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V
A-311.CA1
PIglide IS Planarscanner, air bearing, 200 mm × 200 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V
A-311.CB1
PIglide IS Planarscanner, air bearing, 200 mm × 200 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V
A-311.DA1
PIglide IS Planarscanner, air bearing, 50 mm × 50 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V
A-311.DB1
PIglide IS Planarscanner, air bearing, 50 mm × 50 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V
