NEW

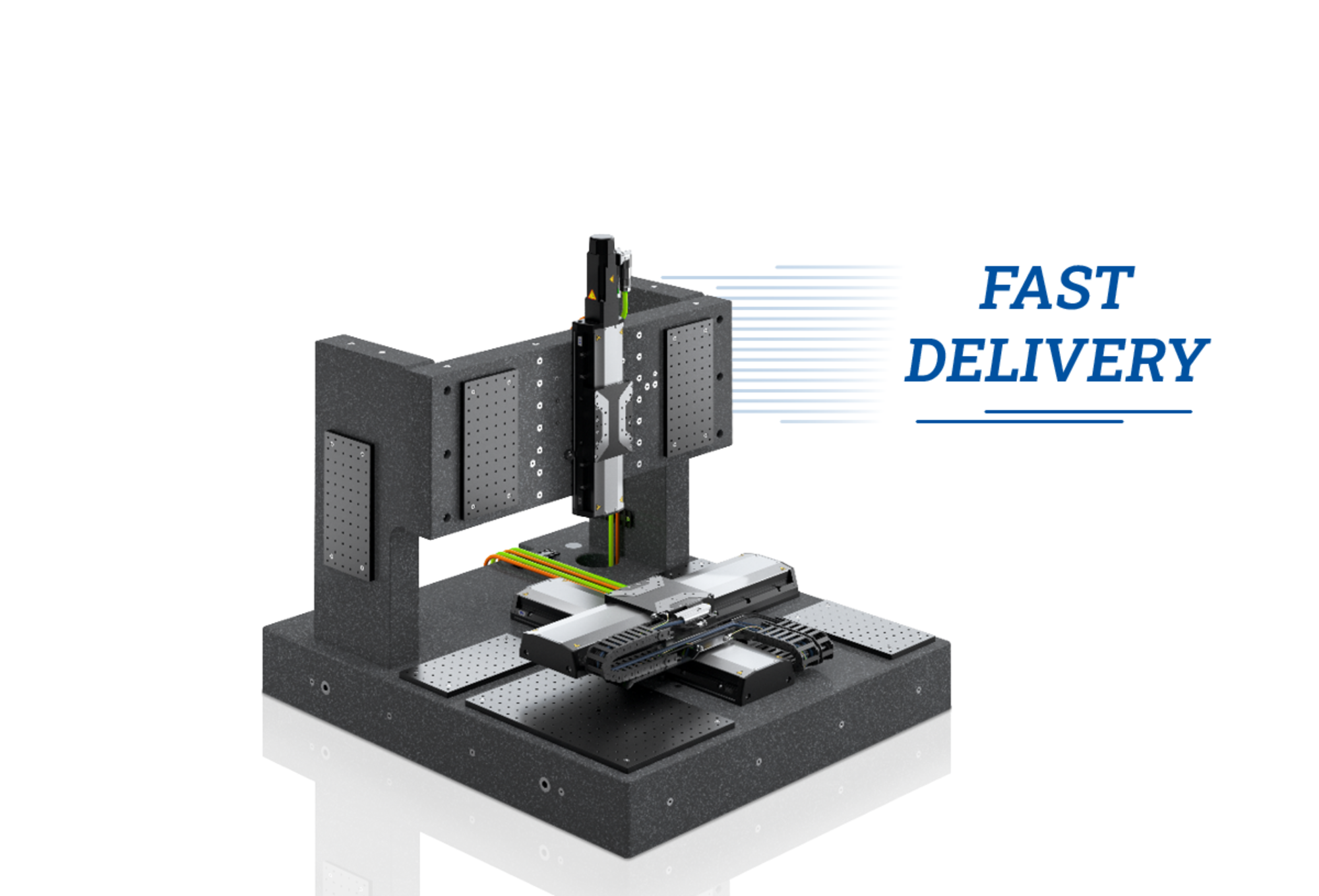

X-417 Integrated Multi-Axis System

XY(Z) Positioning System with Controller • Quickly Available

  • XY system made of two V-417 positioners, travel ranges from 204 to 407 mm
  • XYZ system with L-412 positioner as Z axis, 102 mm travel range
  • Suitable G-901 ACS controller with ACS driver module
  • Optional with granite base plate
  • Delivery includes extensive test reports
  • Extensive accessories, software support available
X-417 Integrated Multi-Axis System
Product Description Specifications Downloads Quote / Order

Integrated multi-axis system - IMAS

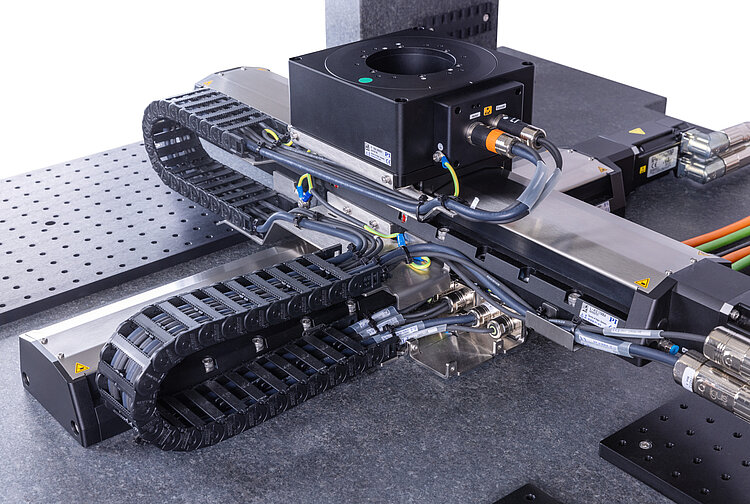

The X-417 multi-axis system is an integrated solution for industrial applications with high demands on dynamics and precision. XY or XYZ systems with suitable ACS high-performance controller from PI are available. The base system is an XY system made of two V-417 high-load linear stages with linear motor and absolute-measuring linear encoder. Combinations of several travel range variants are available: From 204 to 407 mm. The XY systems are also available with a granite plate. With the XYZ systems, an L-412 high-load linear stage with 102 mm travel range, synchronous servo motor, and holding brake is used as Z axis. The XYZ systems are also available with a granite plate as base; for these systems, the adapter bracket for fastening the Z axis to the granite base is included in the scope of the delivery.

Cable management

A suitable cable set is included in the scope of delivery of all systems. The cable set includes a 5 m long drive cable per axis. If shorter cables are required, e.g. when mounting the controller in the base frame (accessory), a shorter cable set of 2 m length is available as accessory.

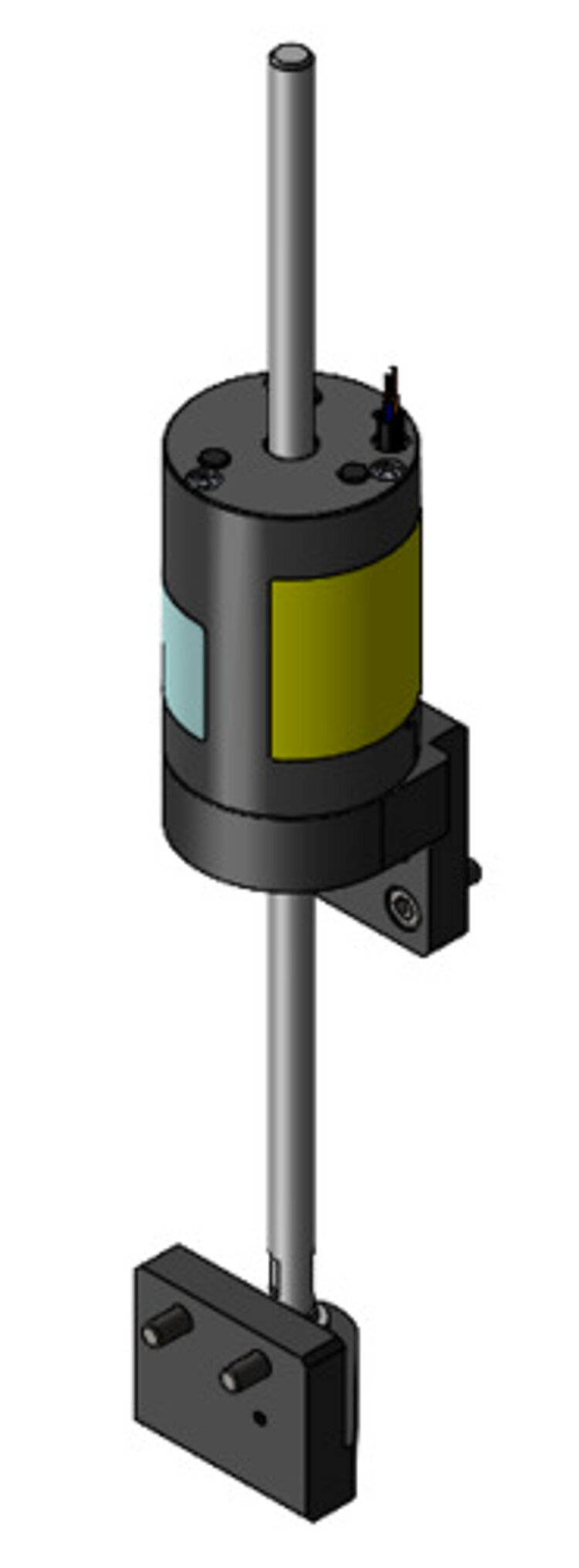

Options and accessories

  • Base frame

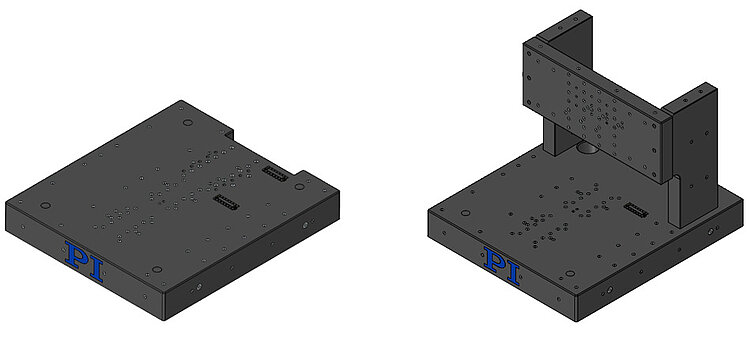

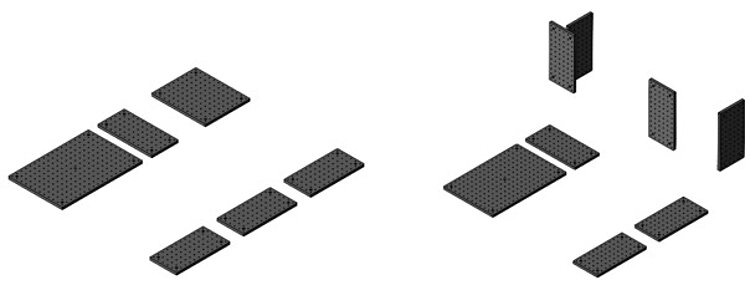

  • Breadboard set for granite plate

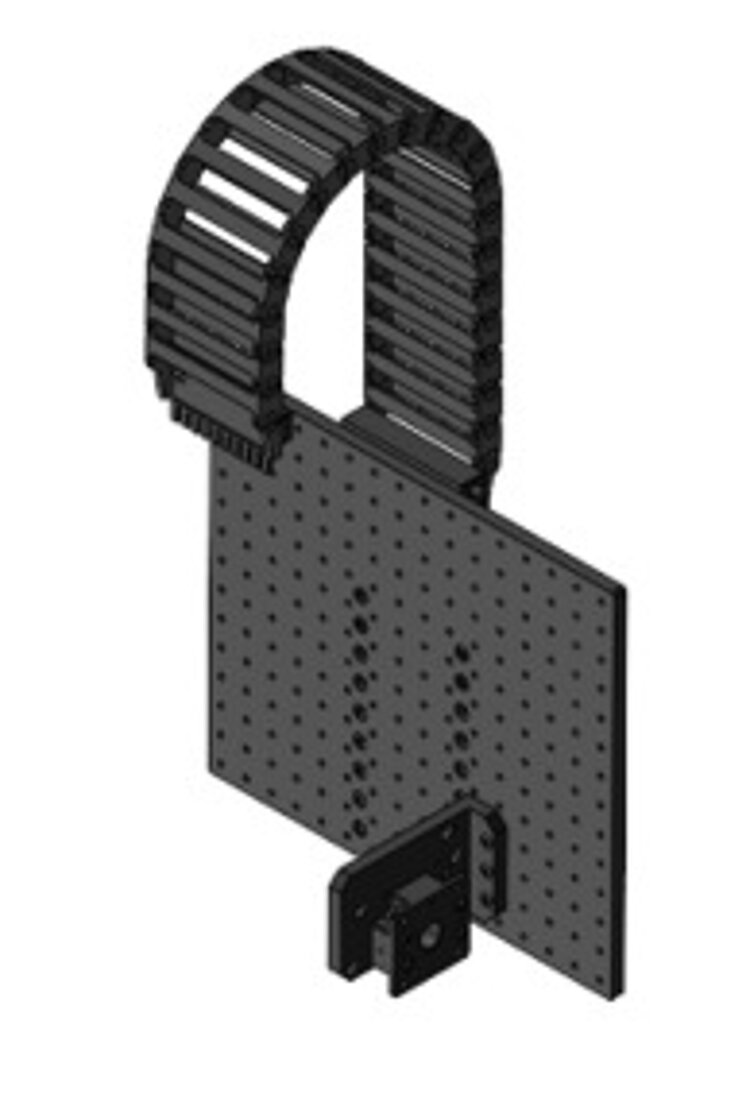

  • Adapter bracket
  • Additional cable set for XYZ system: Cable length for X / Y axes 2 m, for Z axis 3 m
  • Software support, e.g. for SPS integration



Application fields

Laser machining: Laser ablation. Laser welding. Ultrashort pulse laser machining. Galvo integration. Laser micromachining. Ceramics and diamond cutting. Laser drilling. Test & inspection. Electronics production.

Specifications

Datasheet

Datasheet X-417

Version / Date
2021-08-03
pdf - 291 KB
Version / Date
2021-08-03
pdf - 294 KB
Version / Date
2021-01-26
pdf - 694 KB

Downloads

Datasheet

Datasheet

Datasheet X-417

Version / Date
2021-08-03
pdf - 291 KB
Version / Date
2021-08-03
pdf - 294 KB
Version / Date
2021-01-26
pdf - 694 KB

Documentation

Documentation

User Manual X417UM0002

Base frame for X-417 series systems (iMAS) with granite base

Version / Date
2021-07-07
pdf - 833 KB
English
Documentation

User Manual X417UM0004

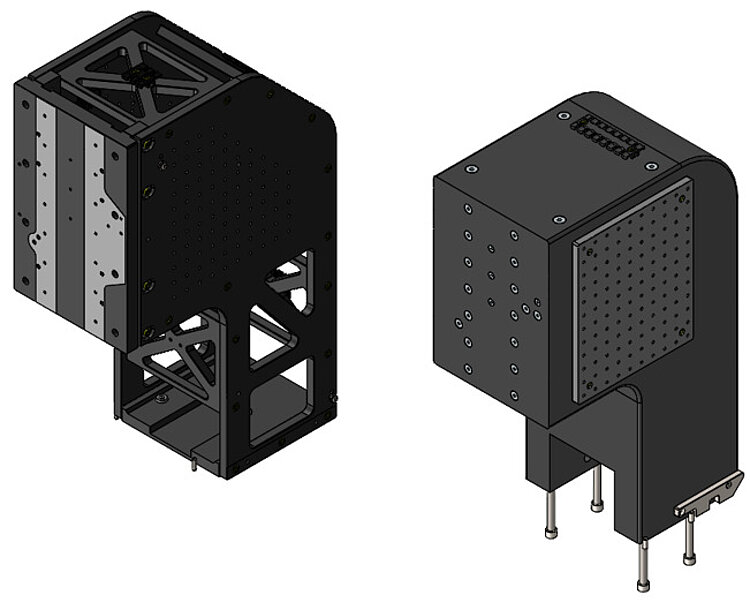

X-417.Z03 Z-bracket for X-417 series systems (iMAS) with granite base

Version / Date
2021-03-25
pdf - 968 KB
English
Documentation

User Manual X417UM0003

X-417.Z02 Breadboard set for X-417 series systems (iMAS) with granite base

Version / Date
2021-02-09
pdf - 2 MB
English
Documentation

User Manual X417UM0001

X-417 Series Integrated Multi Axis System (iMAS)

Version / Date
2021-06-21
pdf - 6 MB
English

3-D Models

3-D Models

3-D models X-417.0xx

Version / Date
2021-04-06
zip - 33 MB
3-D Models

3-D models X-417.1xx

Version / Date
2021-04-06
zip - 39 MB
3-D Models

3-D models X-417.2xx

Version / Date
2021-06-04
zip - 50 MB

Brochure

Brochure

X-417 Scalable Integrated Multi-Axis System

Fast Configuration, Delivery, and Startup to Accelerate the Implementation of Precision Automation Processes

Version / Date
BRO75E 2020-11
pdf - 1 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

X-417.222 NEW!
integrated XYZ multi-axis system of XY system with 204 mm × 204 mm travel range, Z axis with 102 mm travel range, granite base, and G-901 3-axis controller, including cable set (5 m)
X-417.232 NEW!
integrated XYZ multi-axis system of XY system with 305 mm × 204 mm travel range, Z axis with 102 mm travel range, granite base, and G-901 3-axis controller, including cable set (5 m)
X-417.233 NEW!
integrated XYZ multi-axis system of XY system with 305 mm × 305 mm travel range, Z axis with 102 mm travel range, granite base, and G-901 3-axis controller, including cable set (5 m)
X-417.242 NEW!
integrated XYZ multi-axis system of XY system with 407 mm × 204 mm travel range, Z axis with 102 mm travel range, granite base, and G-901 3-axis controller, including cable set (5 m)
X-417.243 NEW!
integrated XYZ multi-axis system of XY system with 407 mm × 305 mm travel range, Z axis with 102 mm travel range, granite base, and G-901 3-axis controller, including cable set (5 m)
X-417.244 NEW!
integrated XYZ multi-axis system of XY system with 407 mm × 407 mm travel range, Z axis with 102 mm travel range, granite base, and G-901 3-axis controller, including cable set (5 m)
X-417.322 NEW!
integrated XYZ multi-axis system of XY system with 204 mm × 204 mm travel range, Z axis with 102 mm travel range, and G-901 3-axis controller, including cable set (5 m)
X-417.332 NEW!
integrated XYZ multi-axis system of XY system with 305 mm × 204 mm travel range, Z axis with 102 mm travel range, and G-901 3-axis controller, including cable set (5 m)
X-417.333 NEW!
integrated XYZ multi-axis system of XY system with 305 mm × 305 mm travel range, Z axis with 102 mm travel range, and G-901 3-axis controller, including cable set (5 m)
X-417.342 NEW!
integrated XYZ multi-axis system of XY system with 407 mm × 204 mm travel range, Z axis with 102 mm travel range, and G-901 3-axis controller, including cable set (5 m)
X-417.343 NEW!
integrated XYZ multi-axis system of XY system with 407 mm × 305 mm travel range, Z axis with 102 mm travel range, and G-901 3-axis controller, including cable set (5 m)
X-417.344 NEW!
integrated XYZ multi-axis system of XY system with 407 mm × 407 mm travel range, Z axis with 102 mm travel range, and G-901 3-axis controller, including cable set (5 m)

Accessories (please order separately)

X-417.Z01 NEW!

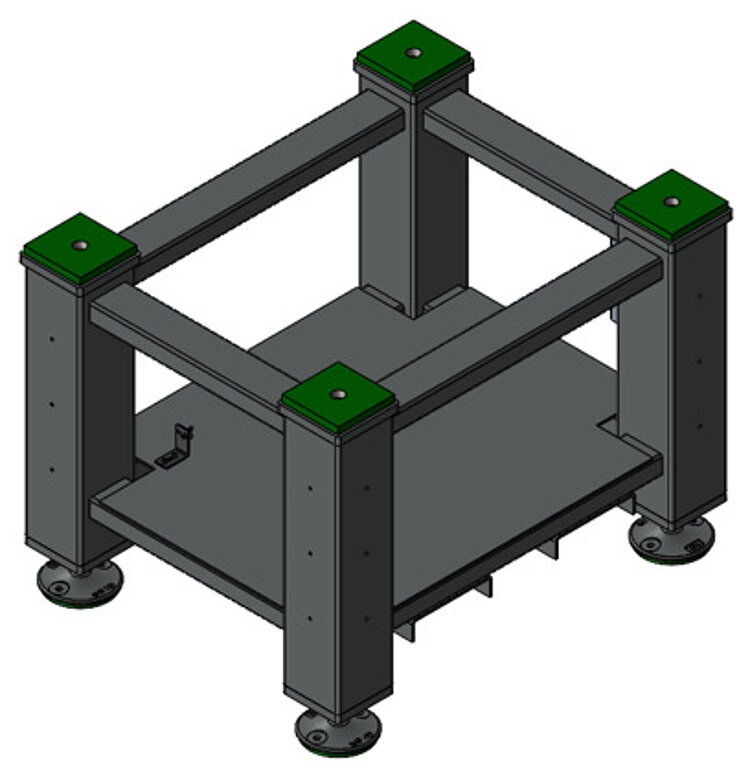

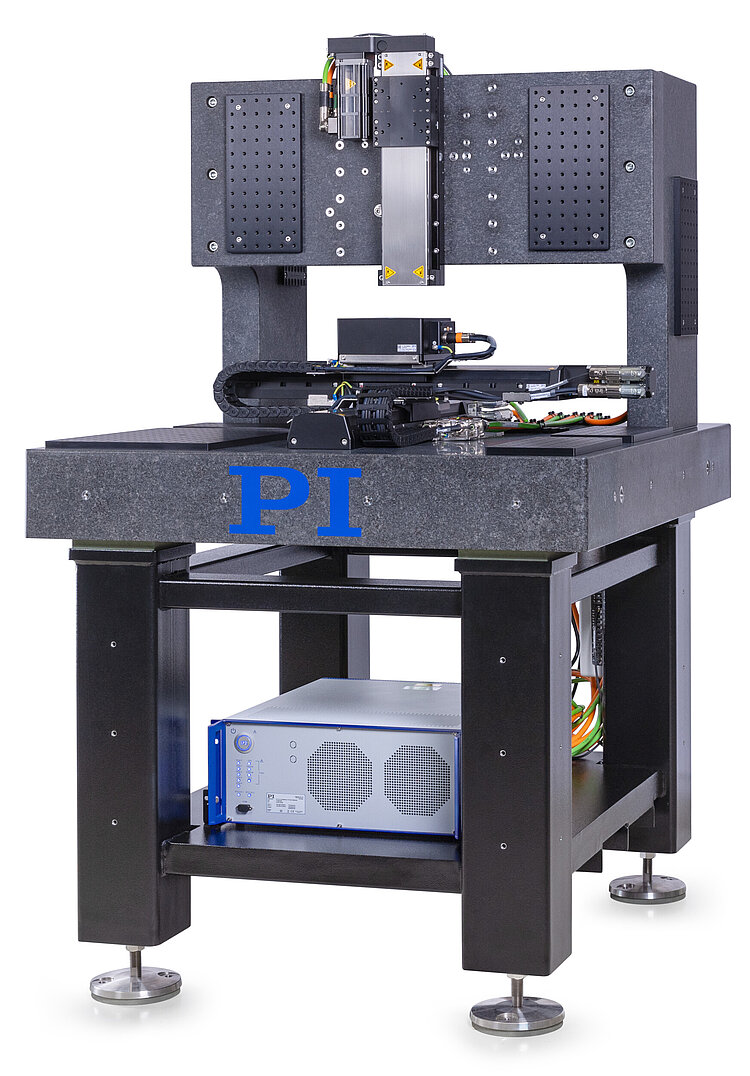

Base frame for X-417 Integrated multi-axis system, 105 × 85 × 80 cm, incl. feet, vibration absorber (passive), connector for protective earth conductor, space for two 19'' racks
