L-310 Precision Z Stage

Compact Multi-Axis Combinations with Linear and Rotation Stages

Travel range 26 mm (1")
High-resolution encoder
DC, BLDC, and stepper motors
Zero-play ball screw
Load capacity to 10 kg
Variants suitable for vacuum available

quote / order

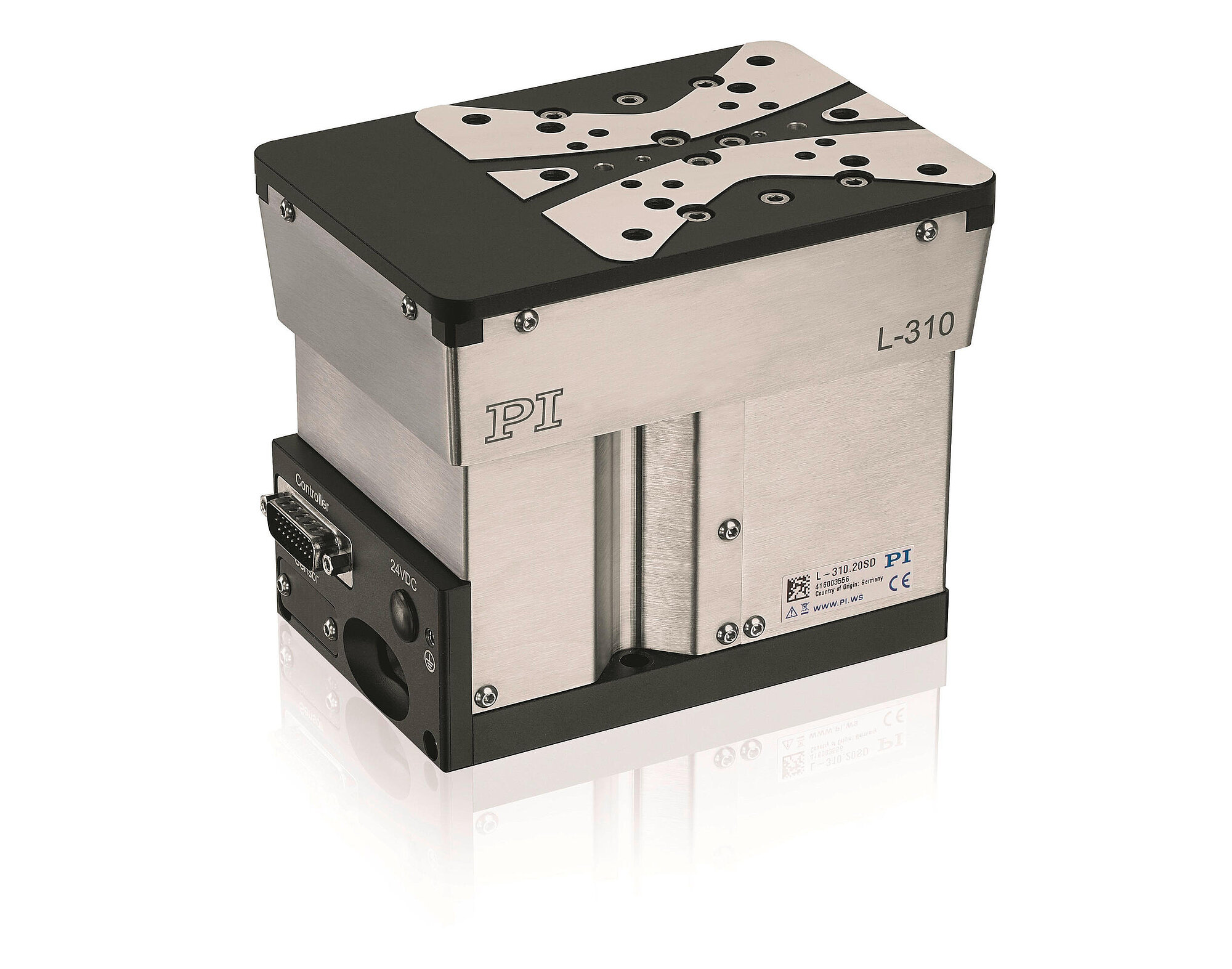

L-310.20SD

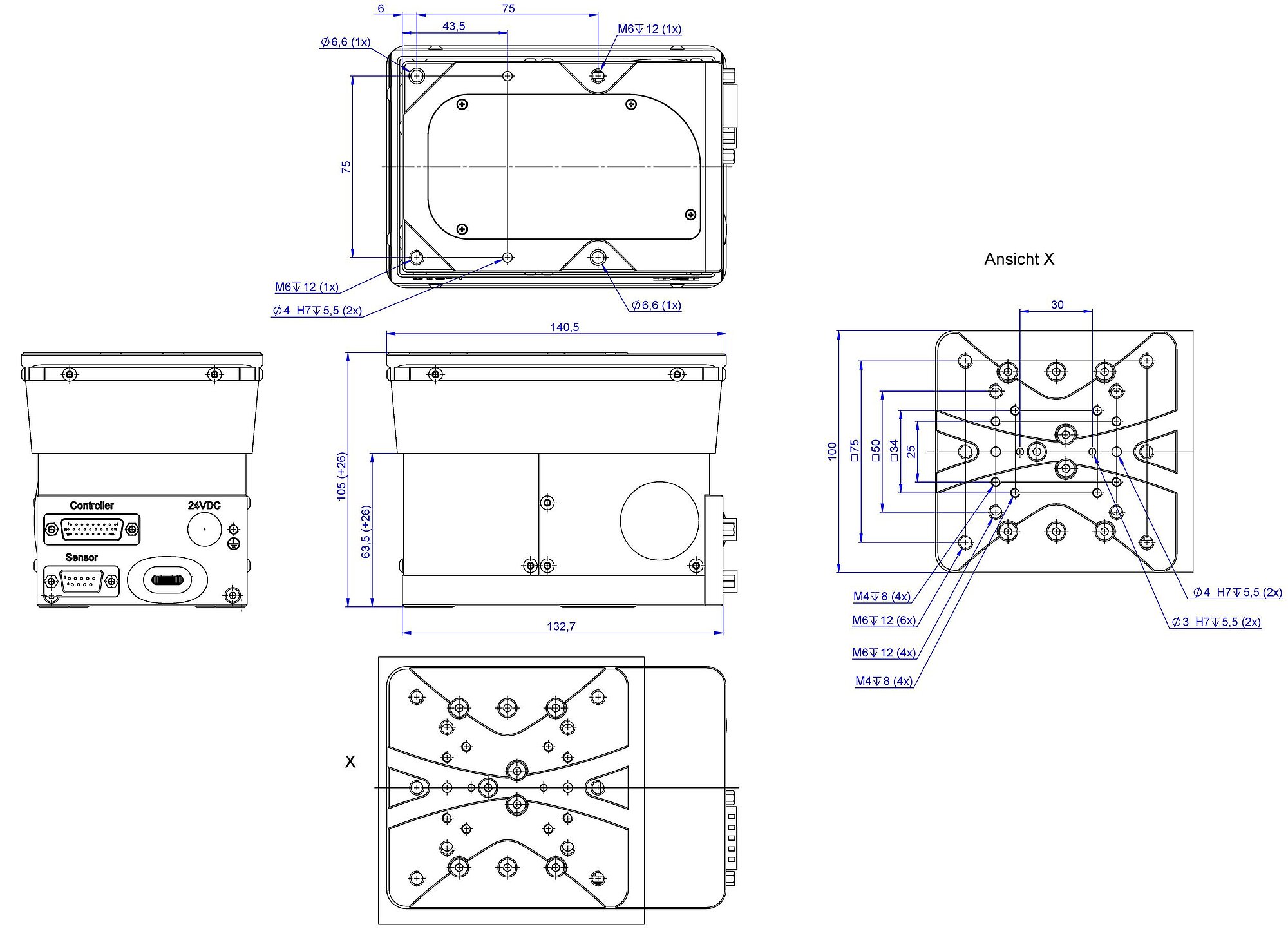

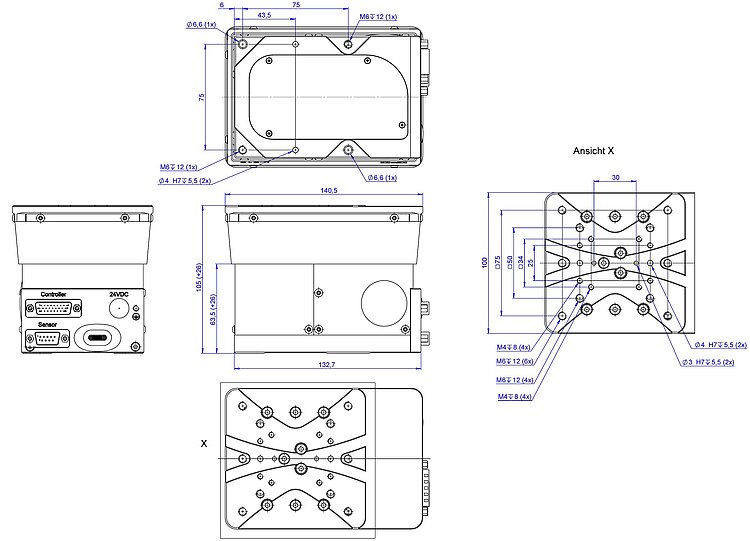

L-310, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Precision-class Z stage

High guiding accuracy and stiffness due to ball screws and crossed roller guides. Stress-relieved aluminum base for high stability. Vacuum-compatible product variants on request. Noncontact limit and reference switches (Hall effect). Reference switch with direction sensing in the middle of the travel range.

Drive types

.xxSD variant: 2-phase stepper motor for high torque even at low velocities and high resolution.
.023xxx variant: DC servo motor
.025xxx variant: Brushless DC motor (BLDC) for high rotational velocity. Smooth running and low wear, therefore longer lifetime.

Position measuring

Versions with DC motor: Rotary encoder
Optional: Integrated linear encoder, installed centrically.

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Minimum incremental motion and slow motion

In conjunction with an ACS controller (e.g., ECMsm-4B44T-NNNNN), versions with stepper motor and integrated linear encoder (L-310.xASD) achieve repeatable minimum incremental motion in the range of the sensor resolution. The same configuration achieves constant low velocities of a few sensor increments per second.

Application fields

Precision positioning in industry and research, high duty cycles.

Download datasheet specifications quote / order

Datasheet

Version / Date

2024-07-15

pdf - 454 KB

Version / Date

2024-07-15

pdf - 455 KB

Version / Date

2021-01-14

pdf - 526 KB

Version / Date

2018-12-12

pdf - 755 KB

Download

Motion	L-310.023211	L-310.023212	L-310.023232	L-310.025212	L-310.025232	L-310.20SD	L-310.2ASD	Tolerance
Active axes	Z	Z	Z	Z	Z	Z	Z
Travel range in Z	26 mm	26 mm	26 mm	26 mm	26 mm	26 mm	26 mm
Maximum velocity in Z, unloaded	50 mm/s	50 mm/s	50 mm/s	50 mm/s	50 mm/s	15 mm/s	15 mm/s
Straightness error E_XZ	± 3 µm	± 3 µm	± 3 µm	± 3 µm	± 3 µm	± 3 µm	± 3 µm	typ.
Straightness error E_YZ	± 3 µm	± 3 µm	± 3 µm	± 3 µm	± 3 µm	± 3 µm	± 3 µm	typ.
Angular error E_AZ	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	typ.
Angular error E_BZ	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	typ.
Angular error E_CZ	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	± 150 µrad	typ.
Positioning	L-310.023211	L-310.023212	L-310.023232	L-310.025212	L-310.025232	L-310.20SD	L-310.2ASD	Tolerance
Minimum incremental motion in Z	0.2 µm	0.2 µm	0.3 µm	0.2 µm	0.3 µm	0.3 µm	0.05 µm	typ.
Unidirectional repeatability in Z	± 0.1 µm	± 0.1 µm	± 0.15 µm	± 0.1 µm	± 0.15 µm	± 0.15 µm	± 0.05 µm	typ.
Bidirectional repeatability in Z	0.4 µm	0.4 µm	4 µm	0.4 µm	4 µm	4 µm	0.4 µm	typ.
Reference switch	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN
Reference switch repeatability	2 µm	2 µm	2 µm	2 µm	2 µm	2 µm	2 µm
Limit switches	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN
Integrated sensor	Incremental linear encoder	Incremental linear encoder	Incremental rotary encoder	Incremental linear encoder	Incremental rotary encoder	—	Incremental linear encoder
Sensor signal	Sin/cos, 1 V peak-peak	A/B quadrature, RS-422	A/B quadrature, RS-422	A/B quadrature, RS-422	A/B quadrature, RS-422	—	Sin/cos, 1 V peak-peak
Sensor signal period	20 µm	—	—	—	—	—	20 µm
Sensor resolution	—	50 nm	—	50 nm	—	—	—
Sensor resolution	—	—	16384 Cts./rev.	20000 Cts./rev.	20000 Cts./rev.	—	—
Drive Properties	L-310.023211	L-310.023212	L-310.023232	L-310.025212	L-310.025232	L-310.20SD	L-310.2ASD	Tolerance
Drive type	DC motor	DC motor	DC motor	Brushless DC motor	Brushless DC motor	2-phase stepper motor	2-phase stepper motor
Nominal voltage	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Peak voltage	48 V	48 V	48 V	48 V	48 V	48 V	48 V
Motor resolution	—	—	—	—	—	200 Full steps/rev.	200 Full steps/rev.
Drive force in positive direction of motion in Z	100 N	100 N	100 N	100 N	100 N	55 N	55 N	typ.
Drive force in negative direction of motion in Z	100 N	100 N	100 N	100 N	100 N	55 N	55 N	typ.
Mechanical Properties	L-310.023211	L-310.023212	L-310.023232	L-310.025212	L-310.025232	L-310.20SD	L-310.2ASD	Tolerance
Permissible push force in Y	100 N	100 N	100 N	100 N	100 N	100 N	100 N	max.
Permissible push force in Z	100 N	100 N	100 N	100 N	100 N	55 N	55 N	max.
Permissible torque in θX	40 N·m	40 N·m	40 N·m	40 N·m	40 N·m	40 N·m	40 N·m	max.
Permissible torque in θY	80 N·m	80 N·m	80 N·m	80 N·m	80 N·m	80 N·m	80 N·m	max.
Permissible torque in θZ	80 N·m	80 N·m	80 N·m	80 N·m	80 N·m	80 N·m	80 N·m	max.
Holding force in Z, passive	—	—	—	—	—	50 N	50 N
Moved mass in Z, unloaded	900 g	900 g	900 g	900 g	900 g	900 g	900 g
Drive screw type	Ball screw	Ball screw	Ball screw	Ball screw	Ball screw	Ball screw	Ball screw
Drive screw pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide
Overall mass	2700 g	2700 g	2700 g	2700 g	2700 g	2700 g	2800 g
Material	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum
Miscellaneous	L-310.023211	L-310.023212	L-310.023232	L-310.025212	L-310.025232	L-310.20SD	L-310.2ASD	Tolerance
Operating temperature range	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C
Connector	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)
Sensor connector	D-sub 9 (m)	—	—	—	—	—	D-sub 9 (m)
Recommended controllers / drivers	C-863 C-885 with C-863.20C885 C-884 G-901 G-910 ACS modular controller	C-863 C-885 with C-863.20C885 C-884 G-901 G-910 ACS modular controller	C-863 C-885 with C-863.20C885 C-884 G-901 G-910 ACS modular controller	G-901 G-910 ACS modular controller	G-901 G-910 ACS modular controller	C-663.12 C-885 with C-663.12C885 G-901 G-910 ACS modular controller	C-663.12 C-885 with C-663.12C885 G-901 G-910 ACS modular controller

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.

Download datasheet downloads quote / order

Datasheet

Version / Date

2024-07-15

pdf - 454 KB

Version / Date

2024-07-15

pdf - 455 KB

Version / Date

2021-01-14

pdf - 526 KB

Version / Date

2018-12-12

pdf - 755 KB

Download

Documentation

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date

3.0.0 2024-01-15

pdf - 261 KB

Version / Date

3.0.0 2024-01-15

pdf - 295 KB

Download

Documentation

L-310 Precision Z Stage

Version / Date

1.4 2022-09-20

pdf - 1 MB

Version / Date

1.4 2022-09-20

pdf - 1 MB

3D Models

Version / Date

2017-01-10

zip - 3 MB

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-310.023211

Precision Z stage; DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

Add to quote list Remove from quote list

L-310.023212

Precision Z stage; DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422

Add to quote list Remove from quote list

L-310.023232

Precision Z stage; DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422

Add to quote list Remove from quote list

L-310.025212

Precision Z stage; brushless DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422

Add to quote list Remove from quote list

L-310.025232

Precision Z stage; brushless DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

Add to quote list Remove from quote list

L-310.20SD

Precision Z stage; 2-phase stepper motor; 26 mm travel range; 55 N load capacity; 15 mm/s maximum velocity; ball screw

Add to quote list Remove from quote list

L-310.2ASD

Precision Z stage; 2-phase stepper motor; 26 mm travel range; 55 N load capacity; 15 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

Add to quote list Remove from quote list

Ask for custom design quote list
