E-836 Compact Piezo Amplifier / OEM Module

Cost-Effective, Low-Noise Piezo Amplifiers for Dynamic Piezo Actuator Operation

  • OEM module and benchtop device
  • Peak current up to 100 mA
  • Easy integration
  • Power on/off without voltage spikes
  • 24 V operating voltage
E-836 Compact Piezo Amplifier / OEM Module
Product Description Specifications Downloads Quote / Order



Single-channel piezo amplifier: OEM module or benchtop device

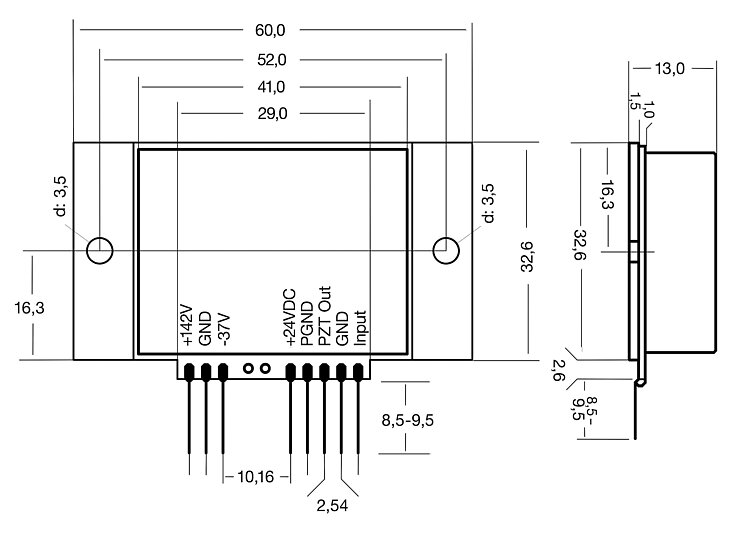

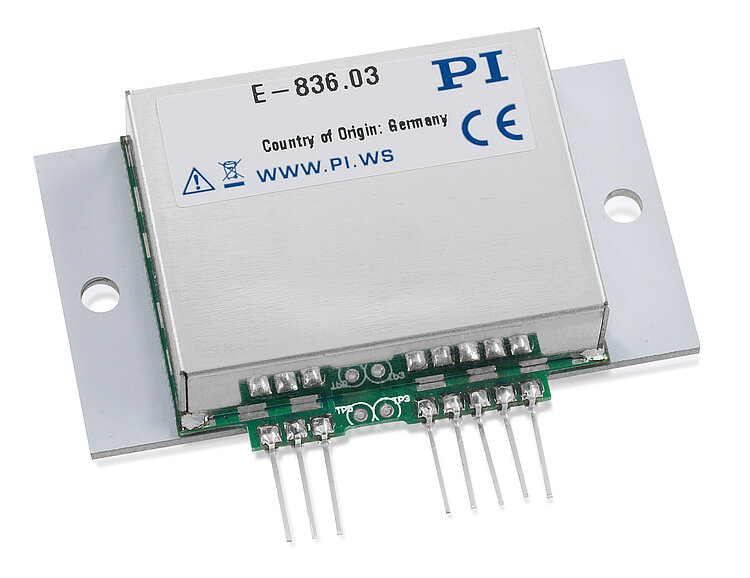

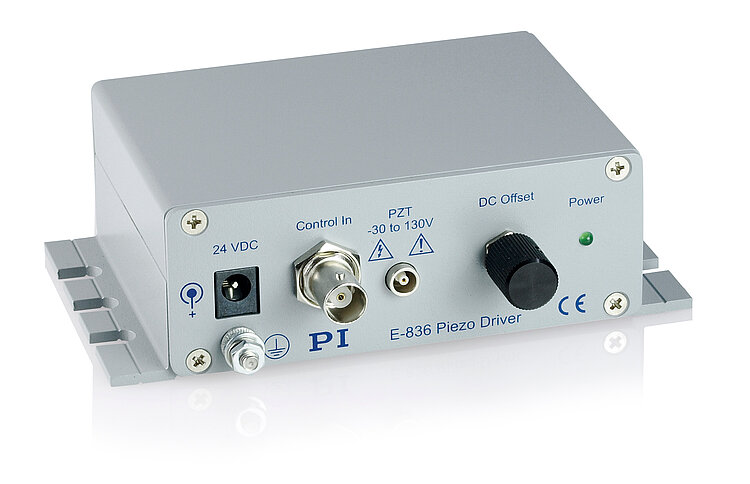

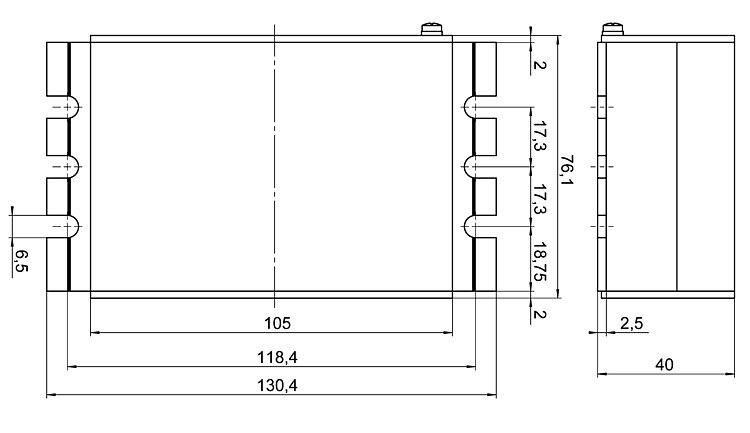

Compact OEM module in shielded metal housing; easy integration with soldering pins for mounting on boards; ideally suited for assembling multi-channel solutions. Benchtop device for laboratory applications and fast startup. 24 V operating voltage, piezo voltage and other supply voltages are generated internally.

Functions

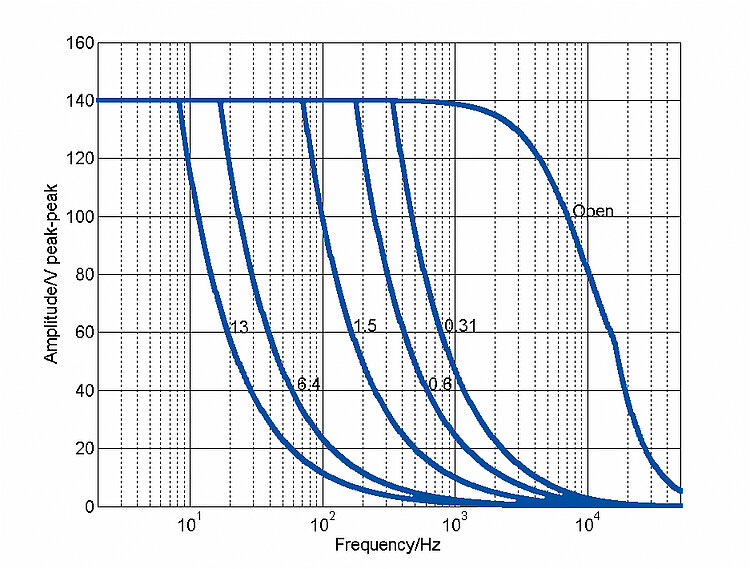

Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V. Short-circuit proof, full overcurrent and overtemperature protection.

Fields of application

Inexpensive control of PICMA® Stack or PICMA® Chip piezo actuators in OEM applications.

Specifications

Datasheet

Datasheet E-836

Version / Date
2018-04-06
pdf - 579 KB
Version / Date
2018-04-06
pdf - 581 KB

Downloads

Datasheet

Datasheet

Datasheet E-836

Version / Date
2018-04-06
pdf - 579 KB
Version / Date
2018-04-06
pdf - 581 KB

Documentation

Documentation

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

Version / Date
1.2.0 03/2024
pdf - 754 KB
Version / Date
1.2.0 03/2024
pdf - 791 KB
Documentation

User Manual PZ250

E-836.1G Piezo Amplifier, 1 Channel, Bench-Top, -30 to 130 V

Version / Date
1.1.0 2023-07-12
pdf - 1,022 KB
Version / Date
1.1.0 2023-07-12
pdf - 1,020 KB
Documentation

User Manual E836T0001

E-836.03 OEM Piezo Amplifier Module, 1 Channel, -30 to 130 V

Version / Date
2014-02-03
pdf - 863 KB
English
