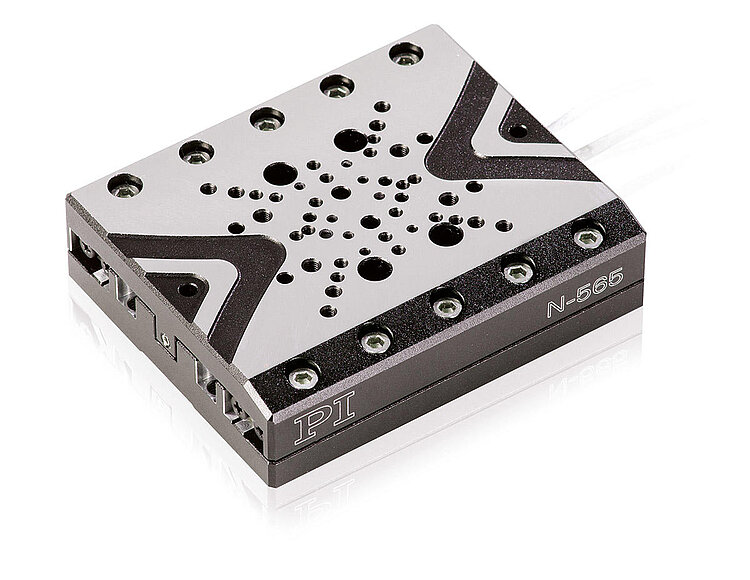

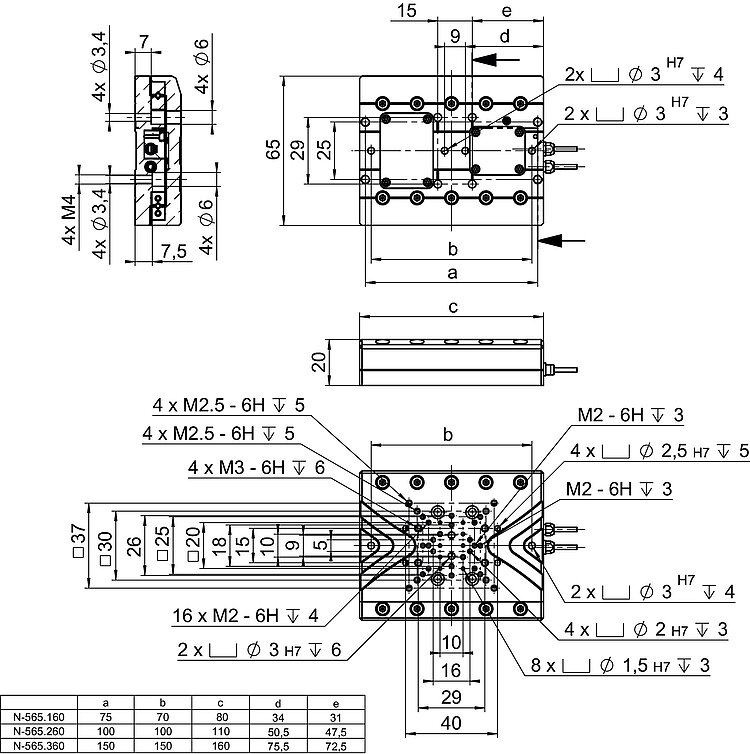

N-565 Linear Stage with the Highest Precision

NEXACT^® reference-class linear stage

Linear stage with NEXACT^® PiezoWalk^® drives allow high-precision positioning in the nanometer range over long travel ranges. They are equipped with direct-measuring linear encoders and crossed roller bearings for the highest accuracy.

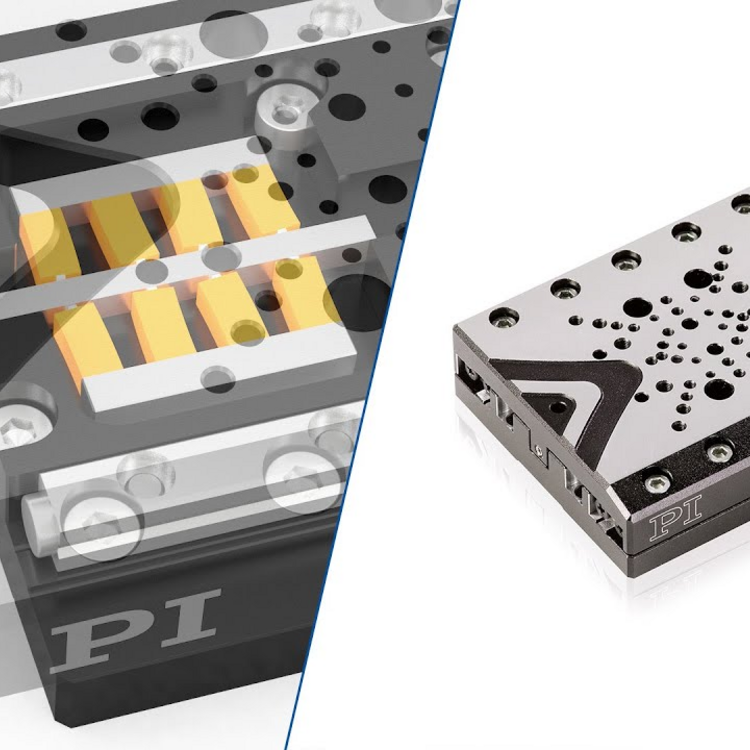

PiezoWalk^® technology: High resolution and low wear

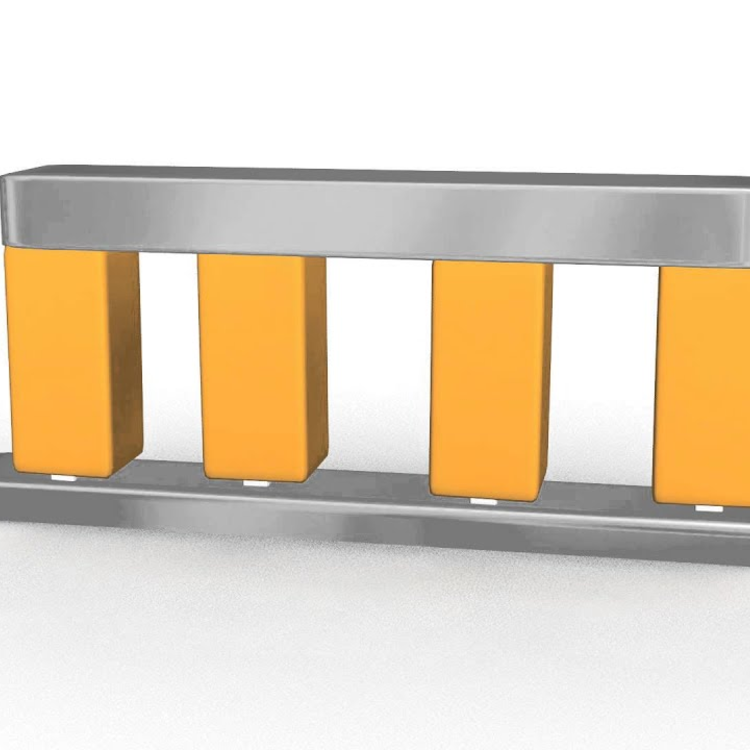

The PiezoWalk^® technology combines the technological advantages of piezo actuators with those of piezomotors. PiezoWalk^® walking drives offer not only subnanometer resolution, high forces, and high stiffness but allow theoretically unlimited travel ranges. In contrast to other piezo-motorized drive principles, PiezoWalk^® walking drives are not subject to sliding friction effects. They are based on stiction contacts of several piezo actuators that step along a runner. At rest, PiezoWalk^® walking drives are self-locking, consume no energy, and do not generate heat.

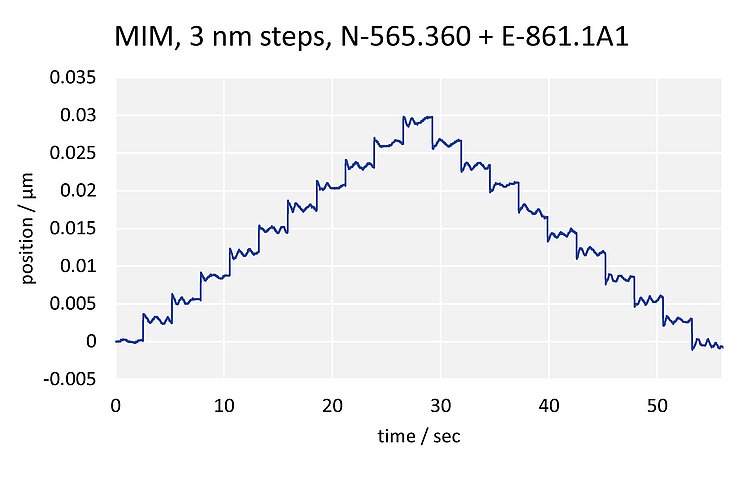

Direct position measuring with PIOne linear encoder

The high-resolution PIOne encoder was developed by PI and, with corresponding processing of the measured value, allows a position resolution of much less than one nanometer. In addition, due to the short signal period and the high quality of the signals, the linearity error of PIOne encoders is less than 1 %. PIOne encoders support direction sensing when evaluating a reference signal.

Application fields

Sample manipulation, sample positioning, optics or mechanical components with high precision and stability, precision mechanics in the semiconductor industry, micromanipulation, microscopy, automation, applications in confined spaces, applications in nonmagnetic environments.
