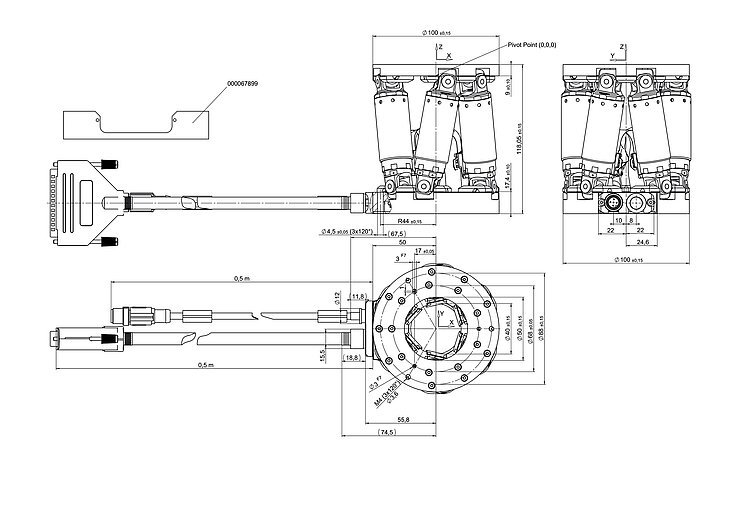

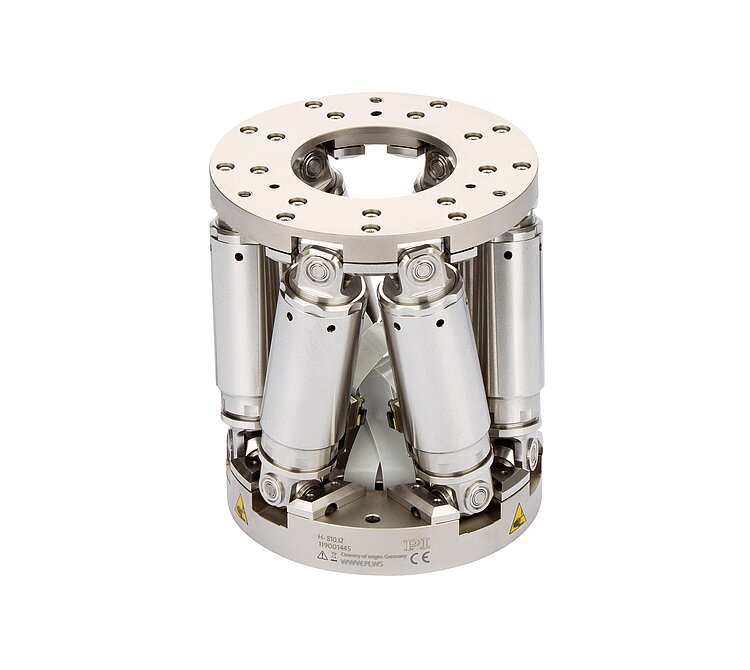

Miniature hexapod microrobot for six degrees of motion freedom, brushless DC motors, 3 kg load capacity, 6 mm/s velocity, 0.5 m cable length. Connecting cables are not in the scope of delivery and must be ordered separately.
- Travel ranges to ±20 mm / ±30°
- Load capacity to 3 kg
- Repeatability to ±0.08 µm
- Velocity to 6 mm/s
- Virtual pivot point
Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.
Brushless DC motor (BLDC)
Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.
PI Hexapod Simulation Tool
The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.
Fields of application
Research and industry. For micromanipulation, biomedical engineering, tool inspection.
