P-545.SH3 Microscope Slide Holder

For PInano® Piezo Stages

For standard microscope slides 25 mm × 75 mm (1" × 3")
Two integrated threaded pins for fine adjustment
Four M2x3 mounting screws in the scope of delivery

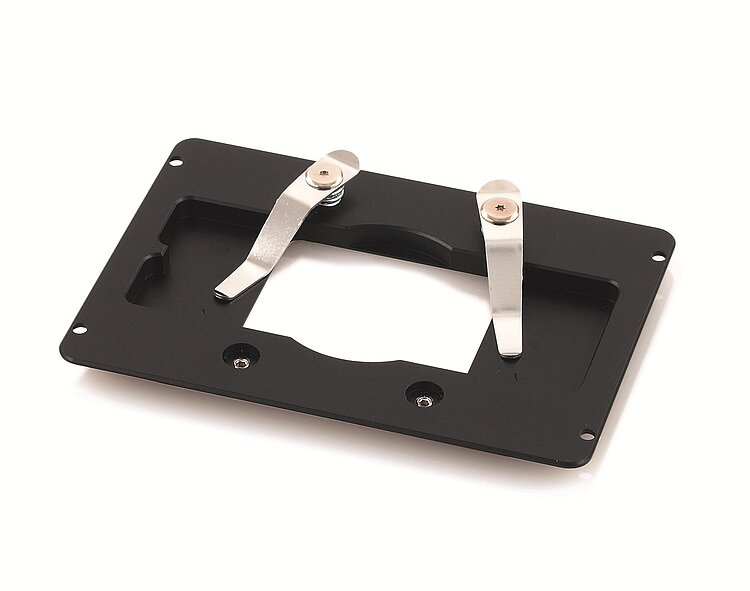

P-545.SH3 microscope slide holder, suitable for PInano® piezo stages

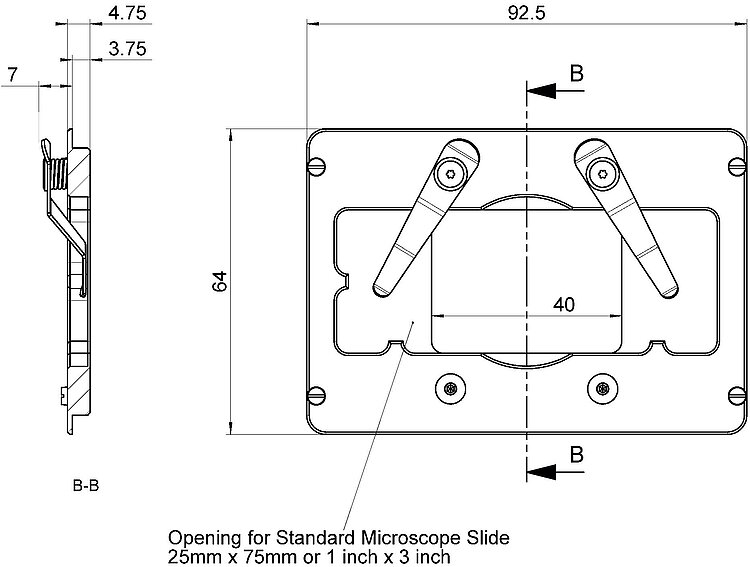

Accessories: P-545.SH3, microscope slide holder, dimensions in mm. 1: Recess for standard microscope slides (25 mm × 75 mm).

Datasheet

Version / Date

2026-03-18

pdf - 379 KB

Version / Date

2026-03-18

pdf - 382 KB

Version / Date

2026-03-18

pdf - 543 KB

Download

3D Models

zip - 468 KB

Brochure

Sample Stages and Holders for Inverted Microscopes

Version / Date

BRO70E

pdf - 3 MB

English

Download

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-545.SH3

Microscope slide holder for PInano® piezo stages
