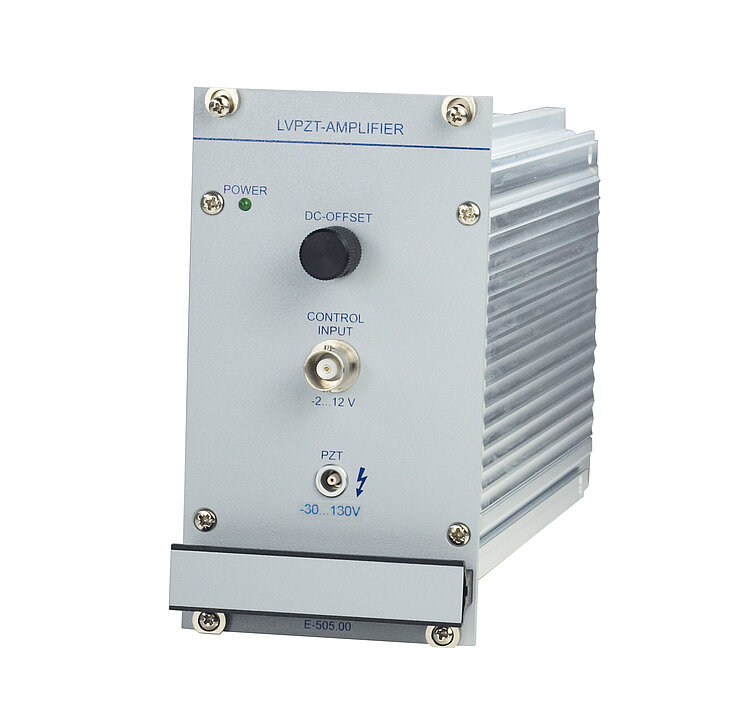

E-505 Piezo Amplifier Module

High Power, E-500 Piezo Controller System

E-505 Piezo Amplifier Module
Product Description Specifications Downloads Quote / Order
  • Peak current to 10 A
  • Output voltage range -30 to 130 V
  • Module for E-500 piezo controller rack
  • Position control (optional)
  • Interface / display modules (optional)

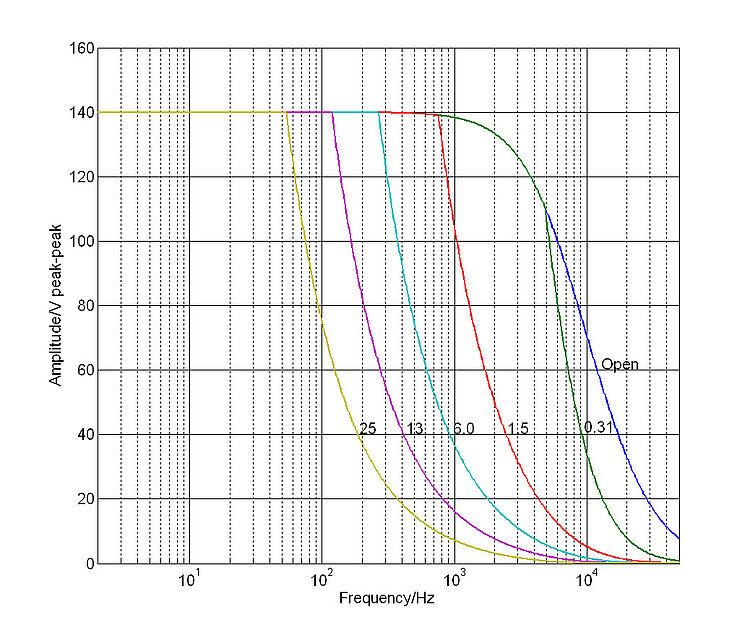

Specifications

Datasheet

Datasheet E-505

Version / Date
2020-10-07
Version / Date
2020-10-07
Version / Date
2020-10-07
Document language
pdf - 639 KB
pdf - 645 KB
pdf - 688 KB

Downloads

Datasheet

Datasheet

Datasheet E-505

Version / Date
2020-10-07
Version / Date
2020-10-07
Version / Date
2020-10-07
Document language
pdf - 639 KB
pdf - 645 KB
pdf - 688 KB

Documentation

Documentation

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx
Version / Date
1.0.0 2020/08
Version / Date
1.0.0 2020/08
Document language
pdf - 1 MB
pdf - 1 MB
Documentation

User Manual PZ62

E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).
