Stages with Stepper, DC & Brushless DC (BLDC) Motors

Industrial applications in the production process such as laser processing benefit from the precise positioning accuracy of motorized positioning stages. Their low profile makes the variable stage series suitable for universal use, ranging from testing systems to production lines in precision automation.

Standard stages are available in various load and precision classes for travel ranges up to 1 m. Miniature versions show footprints under 20 mm x 20 mm.

Buy PI Products Online

Buy PI Products Online

Order PI’s stages, controllers, and matching accessories for your project in our online shop.

NEW

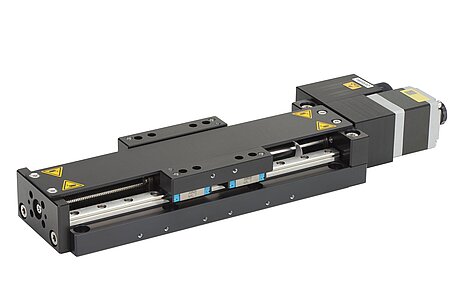

L-836 Stackable, Highly Compact, Universal Linear Stage

Versatile in Use • Drive Screw • Cost Effective • Suitable for Industrial Applications in X, XY, & XYZ
NEW

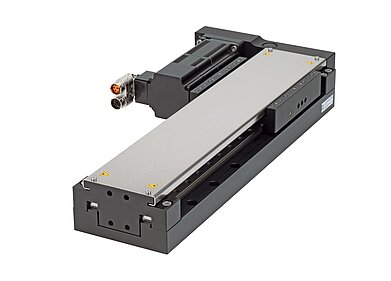

L-812 High-Load Linear Stage

Stepper or Servo Motor • Drive Screw • Cost Effective

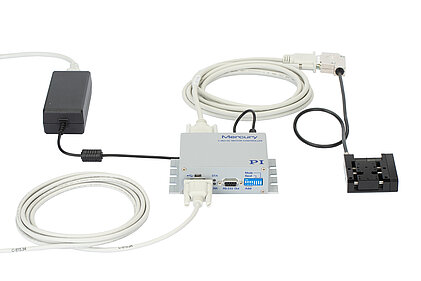

M-110.C86311 Linear Stage System

Compact Linear Stage, DC Gear Motor, 5 mm Travel Range, with Controller

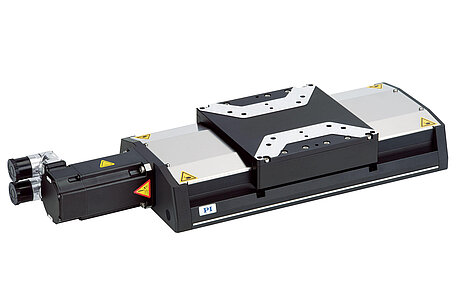

L-417 High-Load Linear Stage

High Performance, Drive Screw

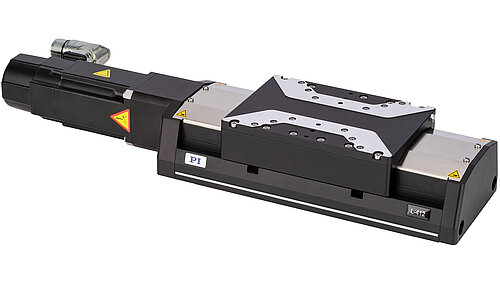

L-412 High-Load Linear Stage

High Performance, Drive Screw

L-408 Compact Linear Stage

For Loads to 200 N

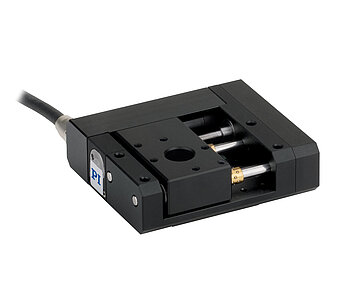

M-110 • M-111 • M-112 Compact Linear Stage

XY(Z) Combinations with a Variety of Drives and Travel Ranges

M-126 Precision Translation Stage

Compact Linear Stage with Crossed Roller Bearings

M-406 Precision Linear Stage

High Travel Accuracy and Inexpensive
  • PI precision-class linear stage with a high travel accuracy and load capacity due to crossed roller guides for laboratory environments and test equipment.
PI M-417

M-417 Precision Linear Stage

500 mm Travel with High Guiding Accuracy

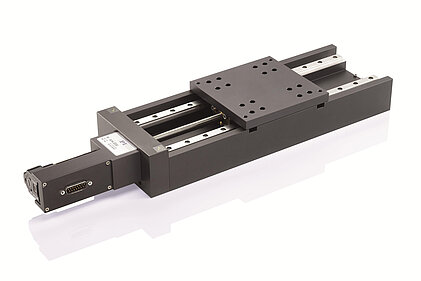

M-414 Precision High-Load Linear Stage

High Cycle Numbers, Inexpensive

M-413 High-Load Linear Stage

Inexpensive, Reliable, Precise

M-404 Precision Linear Stage

High Cycle Number, Inexpensive

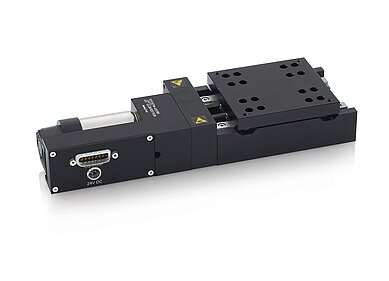

M-403 Linear Stage

Inexpensive, Reliable, Precise

LS-270 Linear Stage for Very High Loads

Robust Design with High Stiffness

VT-80 Linear Stage

Basic Version for Universal Fields of Use

M-605 High-Precision Linear Stage

Compact Positioner with Direct Positioning Measuring

M-511 • M-521 • M-531 High-Precision Linear Stage

High Travel Accuracy, Long Travel Ranges, Many Motor Variants

LS-180 Linear Stage for Heavy Loads

Robust Design for Industrial Use
PI L-511

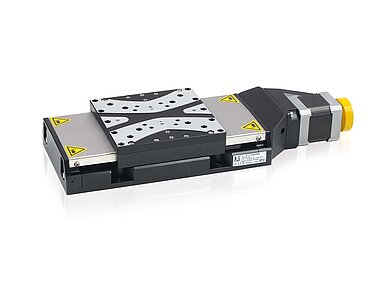

L-511 High-Precision Linear Stage

High Travel Accuracy

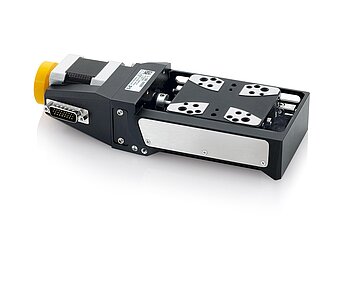

L-509 Precision Linear Stage

Compact Design, for Loads to 10 kg
  • PI linear stage with ActiveDrive DC, BLDC, DC gear motor or stepper motor, various encoder types and repeatability to 0.1 µm.

L-406 Compact Linear Stage

For Loads to 10 kg
  • This PI precision-class linear stage from PI has a ground precision leadscrew that ensures smooth running for loads to 10 kg.

HPS-170 High-precision Linear Stage for Heavy Loads

Excellent Repeatability and Travel Accuracy
