Stages with Stepper, DC & Brushless DC (BLDC) Motors

Stages with Stepper, DC & Brushless DC (BLDC) Motors

Industrial applications in the production process such as laser processing benefit from the precise positioning accuracy of motorized positioning stages. Their low profile makes the variable stage series suitable for universal use, ranging from testing systems to production lines in precision automation.

Standard stages are available in various load and precision classes for travel ranges up to 1 m. Miniature versions show footprints under 20 mm x 20 mm.

MPL-W10 Modular Spindle-Driven Linear Stage

Versatile – Compact Design

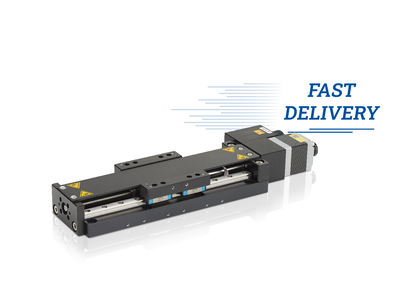

L-836 Stackable, Highly Compact, Universal Linear Stage

Versatile in Use • Drive Screw • Cost Effective • Suitable for Industrial Applications in X, XY, & XYZ

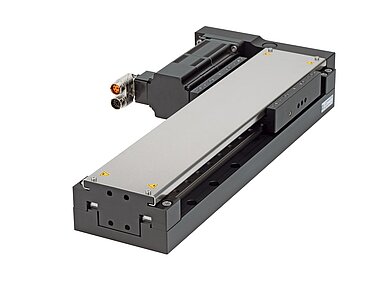

L-812 High-Load Linear Stage

Stepper or Servo Motor • Spindle Drive • Cost Effective
  • Width: 114 mm, travel range up to 610 mm
  • Precision ball screw, load capacity up to 50 kg
  • Stepper or servo motor
  • Compact design thanks to models with folded drivetrain
  • Models with holding brake for vertical mounting

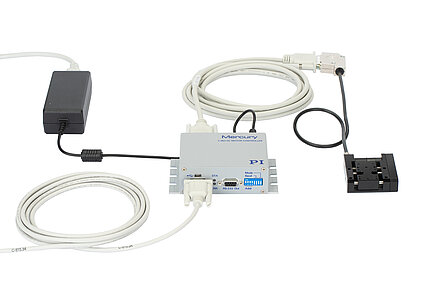

M-110.C86311 Linear Stage System

Compact Linear Stage, DC Gear Motor, 5 mm Travel Range, with Controller

L-417 High-Load Linear Stage

High Performance, Spindle Drive

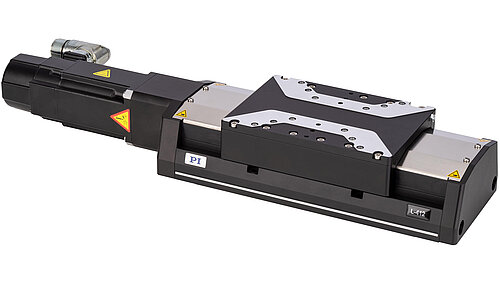

L-412 High-Load Linear Stage

High Performance, Drive Screw

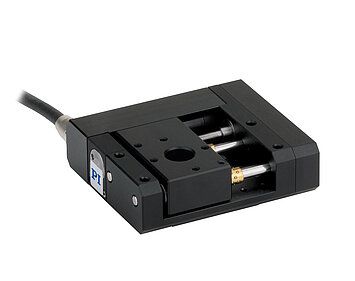

M-110 • M-111 • M-112 Compact Linear Stage

XY(Z) Combinations with a Variety of Drives and Travel Ranges

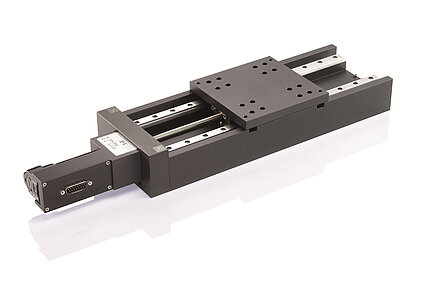

M-414 Precision High-Load Linear Stage

High Cycle Numbers, Inexpensive
  • Use of precision components
  • Flexible modular system M-403, M-414
  • Travel ranges from 100 to 300 mm
  • Recirculating ball screw provides high velocity and long lifetime
  • Minimum incremental motion 0.1 µm

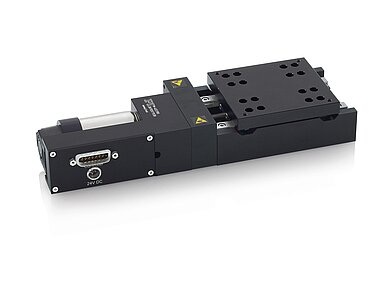

M-403 Linear Stage

Inexpensive, Reliable, Precise
  • Inexpensive, cost-optimized design for precise positioning
  • Travel ranges from 25 to 200 mm
  • Resolution to 0.018 µm
  • Minimum incremental motion to 0.2 µm
  • Preloaded precision threaded spindle
  • Higher loads with M-414

LS-180 Linear Stage for Heavy Loads

Robust Design for Industrial Use

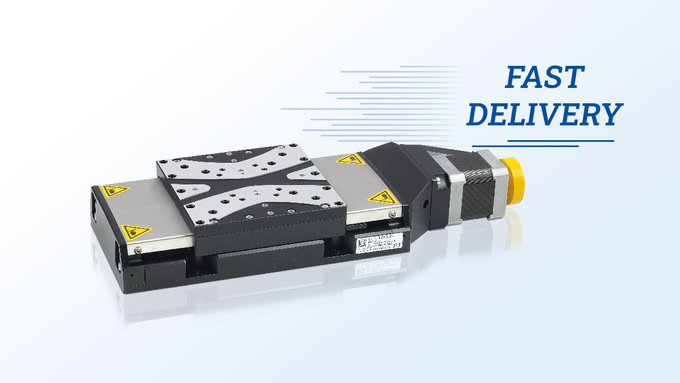

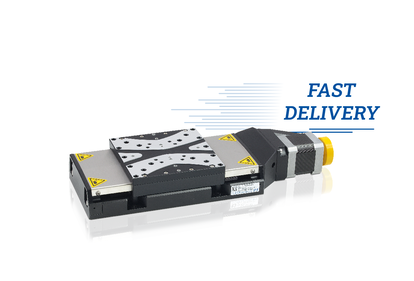

L-511 High-Precision Linear Stage

High Run-Out Accuracy

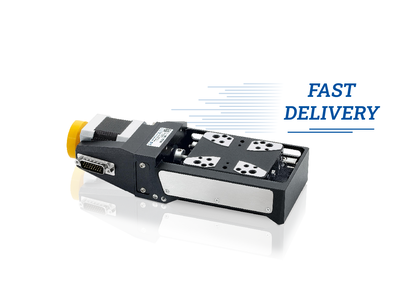

L-509 Precision Linear Stage

Compact Design, for Loads to 10 kg
