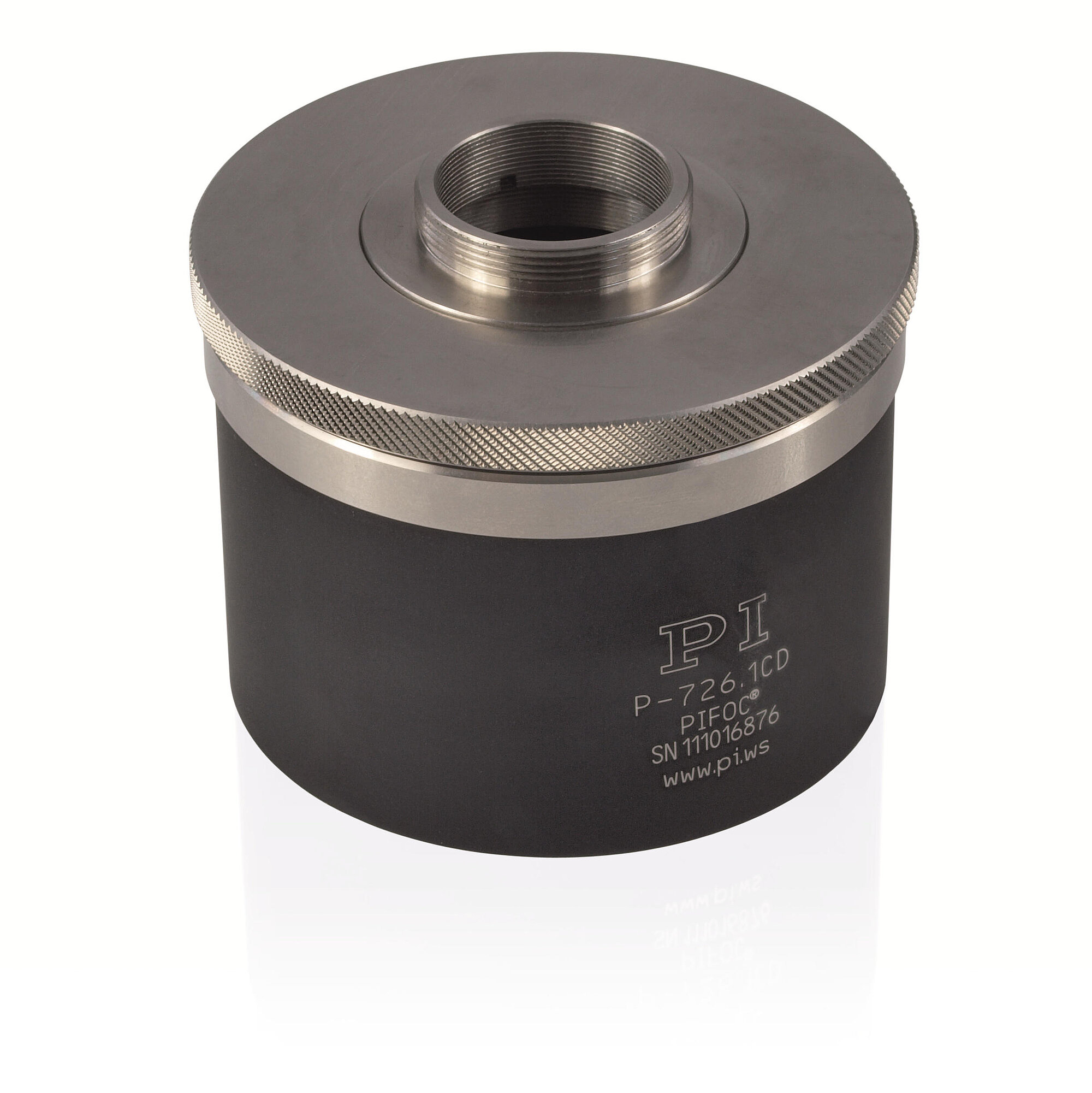

P-726 PIFOC High-Load Objective Scanner

Highly Dynamic Scanning System with Long Travel Range for Heavy Objectives

P-726 PIFOC High-Load Objective Scanner
Product Description Specifications Downloads Quote / Order
  • Highly dynamic positioning and scanning for large objectives
  • Resonant frequency 1120 Hz; 560 Hz with 210 g objective mass

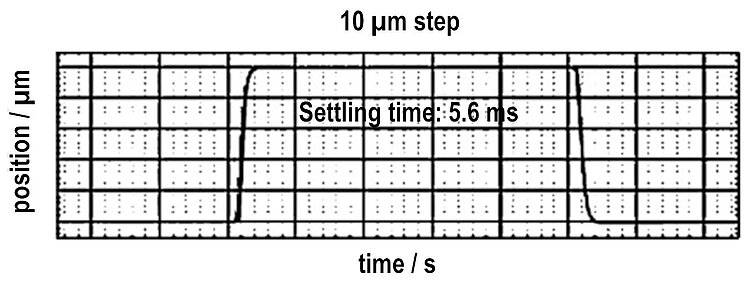

  • Typ. step-and-settle about 6 ms
  • Travel range 100 µm
  • Highest linearity, stability, and control dynamics due to direct-measuring capacitive sensors
  • Resolution 0.3 nm
  • Zero-play, high-precision flexure guide system for better focus stability

Fields of application

  • Super-resolution microscopy
  • Light disc microscopy
  • Confocal microscopy
  • 3-D imaging
  • Screening
  • Interferometry
  • Measuring technology
  • Autofocus systems
  • Biotechnology
  • Semiconductor tests

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

Automatic configuration and fast component exchange

Mechanics and controllers can be combined as required and exchanged quickly. All servo and linearization parameters are stored in the ID chip of the Sub-D connector of the mechanics. The autocalibration function of the digital controllers uses this data each time the controller is switched on.

Maximum accuracy due to direct position measuring

Motion is measured directly at the motion platform without any influence from the drive or guide elements. This allows optimum repeatability, outstanding stability, and stiff, fast-responding control.

Specifications

Datasheet P-726

Version / Date
2018-04-16
Version / Date
2018-04-16
Document language
pdf - 701 KB
pdf - 706 KB

Downloads

Datasheet

Datasheet P-726

Version / Date
2018-04-16
Version / Date
2018-04-16
Document language
pdf - 701 KB
pdf - 706 KB

Documentation

User Manual P726T0002

P-726.1CD PIFOC® High-Load Objective Scanner
Version / Date
2017-07-06
Document language English
pdf - 1 MB

Technical Note P726T0001

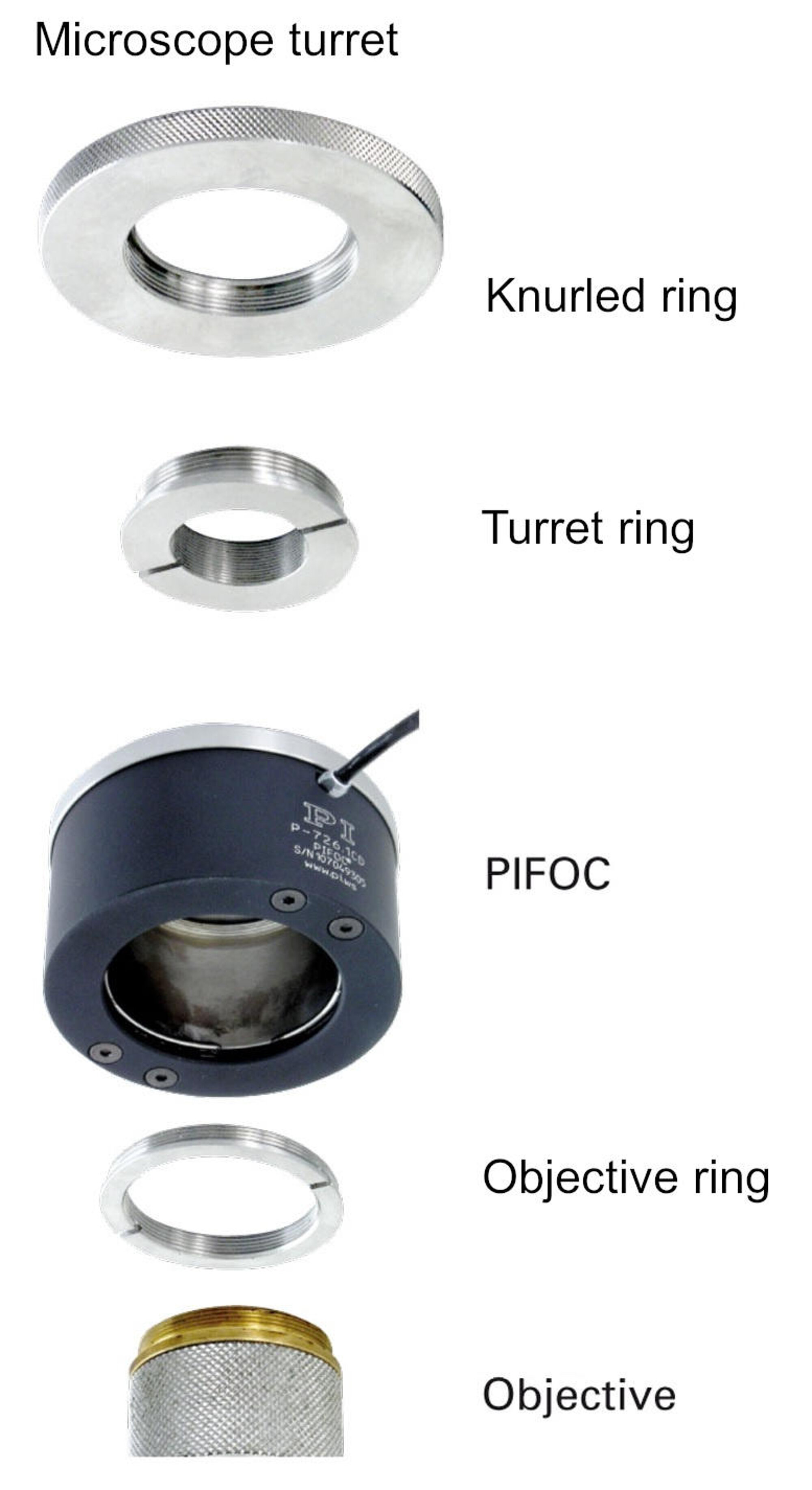

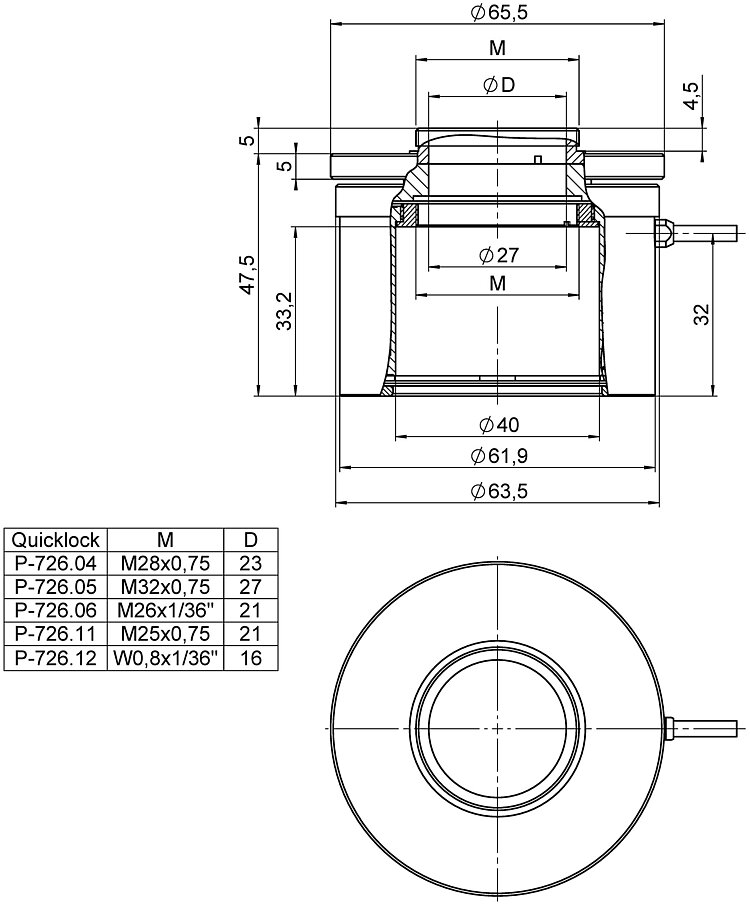

P-726 PIFOC® QuickLock Thread Option
