AB-65 Adapter Bracket

For Vertical Mounting of Linear and Rotation Stages

  • Vacuum-compatible articles to 10-9 hPa available
AB-65 Adapter Bracket
Product Description Specifications Downloads Quote / Order

Product overview

The adapter is compatible with selected linear or rotation stages as well as goniometers.

Vacuum-compatible product variants to 10-9 hPa available.

Types of mounting

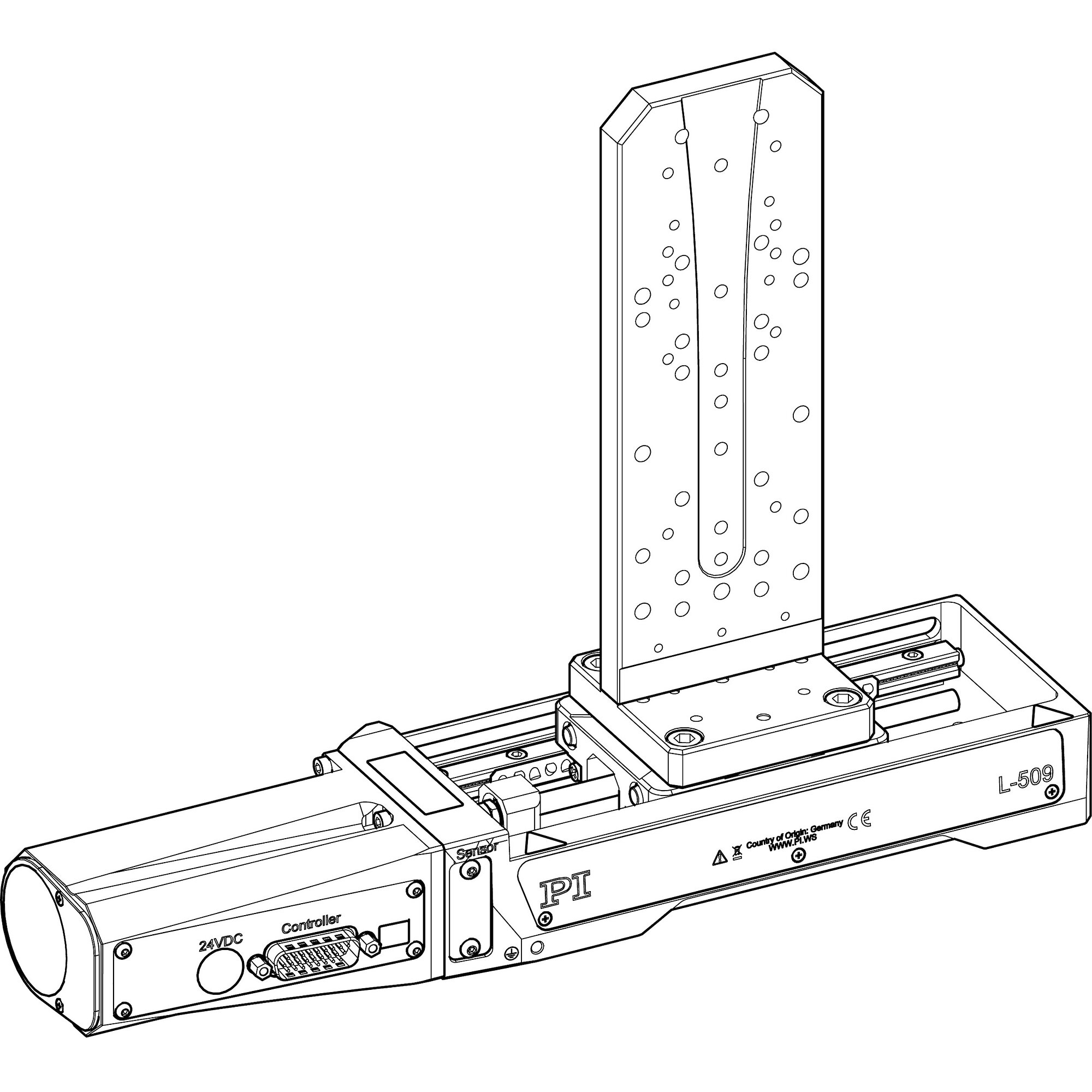

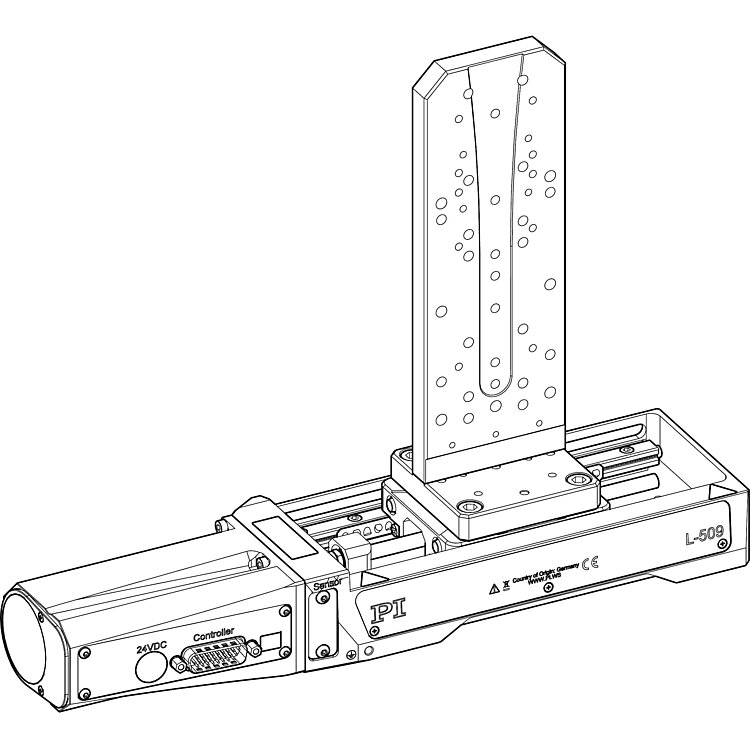

  • Adapter bracket on positioner: The adapter bracket can be mounted on the moveable translation stage of the positioner and is then moved with the positioner accordingly.

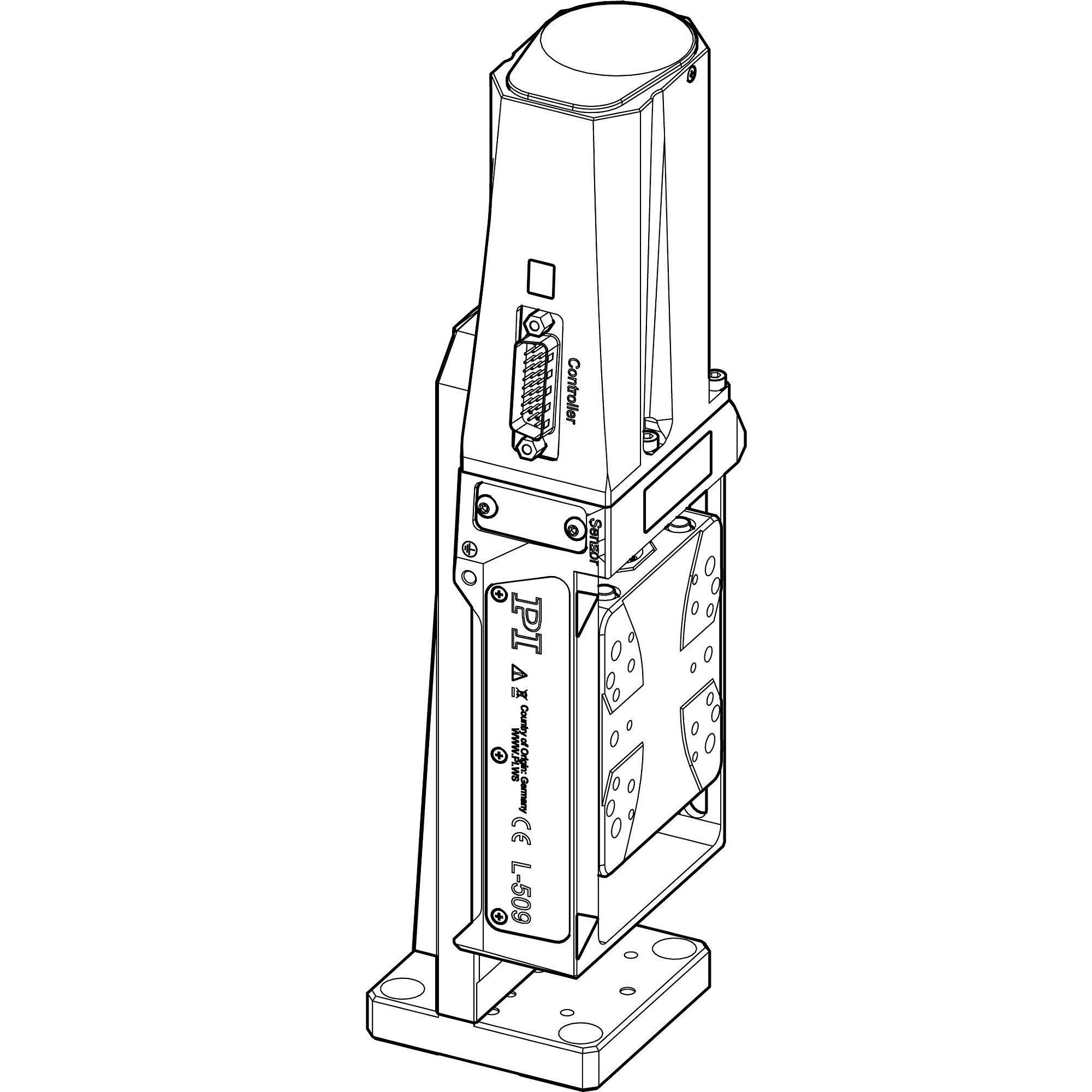

  • Positioner on adapter bracket: The positioner can be mounted on the adapter bracket, the stage moves relatively to it.
