M-545 Microscope XY Stage

Compact, Stable, Long Travel Range

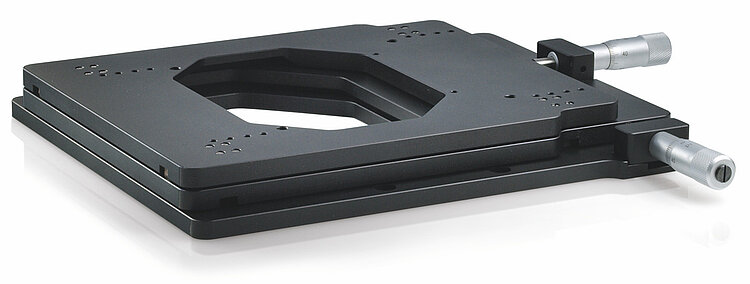

M-545 Microscope XY Stage
Product Description Specifications Downloads Quote / Order
  • Stable platform for P-545 PInano® piezo nanopositioning systems
  • Low profile for easy integration: 30 mm
  • Travel range 25 mm × 25 mm
  • Manual operation with micrometer screws, optional motorization
  • For inverted microscopes from Nikon, Zeiss, Leica, and Olympus

Standard-class, manual microscope XY stage

Rough adjusting for piezo nanopositioners from PI as well as manual positioning of specimen holders. Supports optimum scanning and settling behavior.

Micrometer screw or stepper motor drive

The M-545 XY stage can also be equipped with drives from the M-229 series (all models except M-545.2MZ). Complete packages with two stepper motor drives, matching controller, and joystick, are available under the product numbers M-545.USG respectively M-545.USC.

Suitable for microscopes from a large number of manufacturers

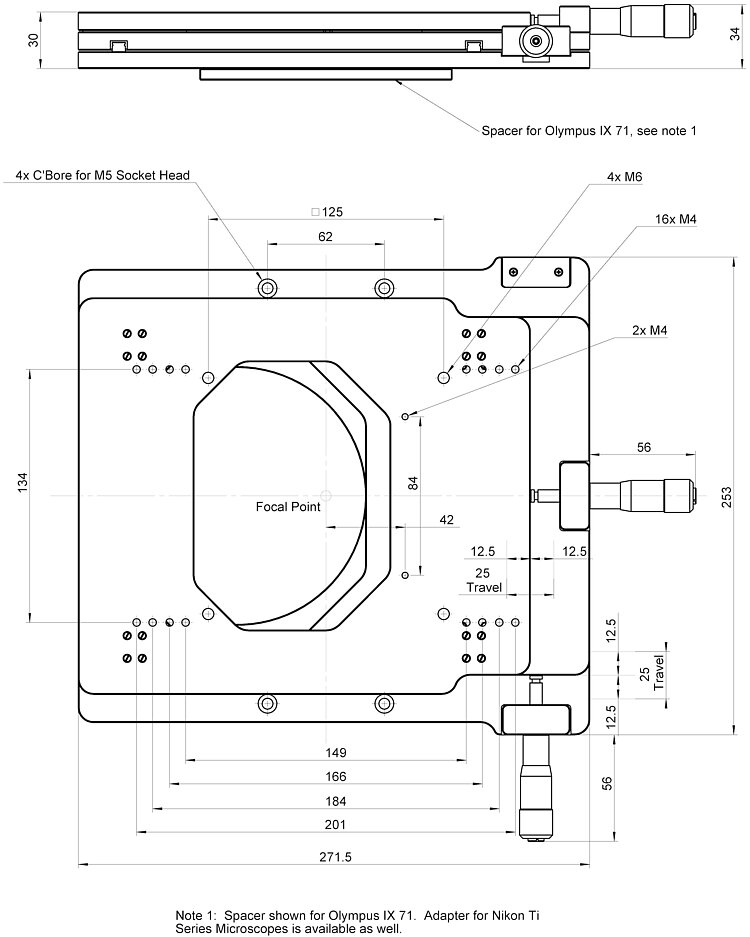

For inverted microscopes from Nikon (TI), Zeiss (Axio Observer), Leica (DMI), and Olympus (IX2, IX3). Versions for other microscopes on request.

Can be combined with numerous PI nanopositioners

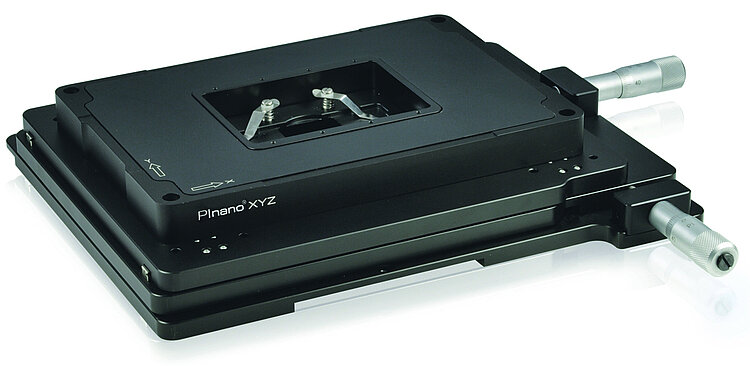

It is possible to mount piezo nanopositioners from the P-545 PInano® and P-541 / P-542 series onto the platform of the M-545. Adapter plates from PI are available for combining with other piezo nanopositioners.

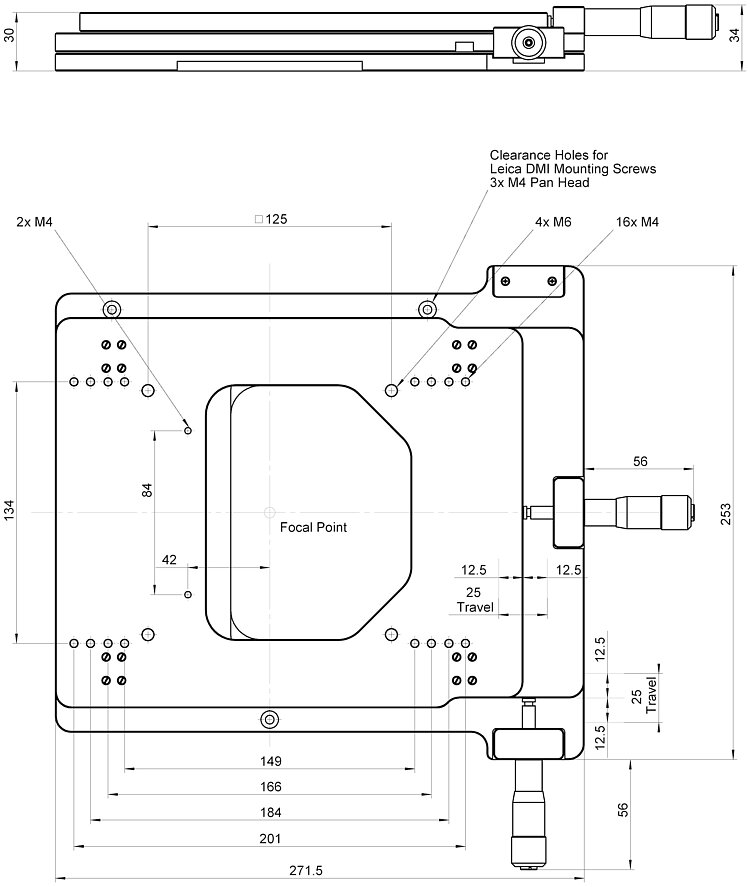

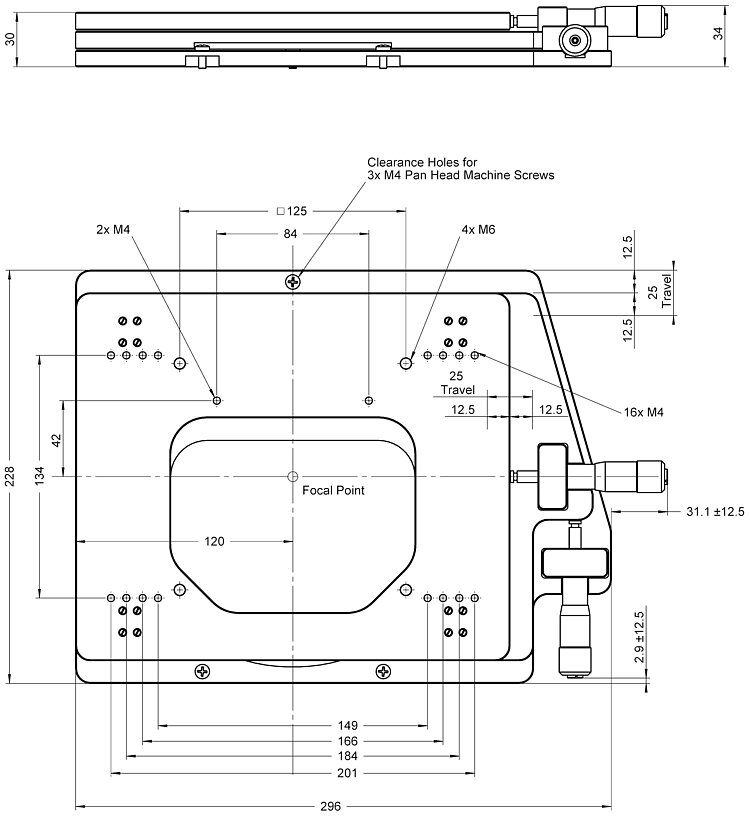

Specifications

Datasheet

Datasheet M-545

Version / Date
2019-02-12
Version / Date
2019-02-12
Version / Date
2019-09-12
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 1,016 KB

Separate connection cable required for motor and sensor connection respectively.

Downloads

Datasheet

Datasheet

Datasheet M-545

Version / Date
2019-02-12
Version / Date
2019-02-12
Version / Date
2019-09-12
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 1,016 KB

Documentation

Documentation

Installation Instructions M545T0001

M-545.USG / M-545.USC Drive Set for M-545 XY Stage
Version / Date
2020-02-10
Document language English
Request download link
Documentation

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx
Version / Date
3.0.0 11/2018
Document language English
pdf - 2 MB
Documentation

User Manual PZA02

M-545 Series Microscope Stages
Version / Date
3.2.0 2020-03-04
Document language English
Request download link

3-D Models

3-D Models

M-545 3-D model

Version / Date
2020-01-15
Request download link

Brochure

Brochure

Microscope Stage Configurator

Sample Stages and Holders for Inverted Microscopes
Version / Date
BRO70E R3D
Document language English
pdf - 4 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Accessories

Specimen holders

Adapter plates

Stepper motor drive sets (optional; for all models except M-545.2MZ)
