M-971 Motorized OEM XY Stage

Low Price with High Quantities

XY stage for the price-sensitive applications
Precise stepper motors
Crossed roller guides
Limit and reference switches (Hall effect)

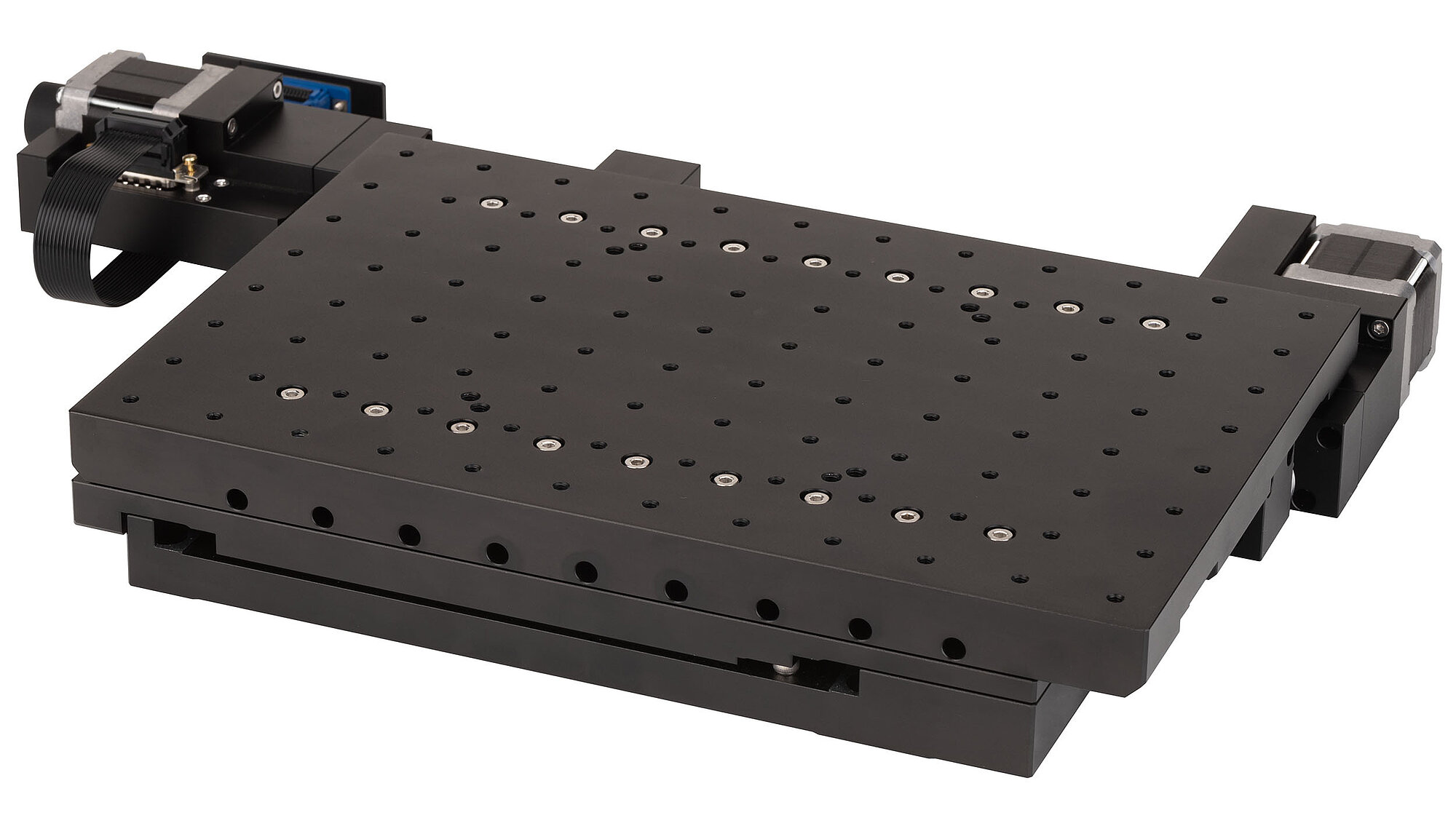

M-971.01

The M-971 is integrated into systems for inspection, lithography, or biomedical engineering and is optimized for optical microscopy. It was specially developed to meet the requirements of price-sensitive OEM markets. Proven and cost-optimized components form its basis:

The design of the guides which includes several short crossed roller guides distributes the load evenly over a large surface and ensures high stiffness and good travel accuracy.
The drivetrain is based on a widely used linear stage from PI. Its reliability and long lifetime have been proven in use for years.
By using stepper motors, encoders can be dispensed with and a simple stepper motor controller can be used. The XY stage is equipped with limit and reference switches to ensure fast and precise referencing and safety during operation.

Download datasheet specifications quote / order

Datasheet

Version / Date

2021-01-14

pdf - 207 KB

Version / Date

2021-01-14

pdf - 210 KB

Version / Date

2021-01-18

pdf - 275 KB

Download

Motion and positioning	Unit	Tolerance	M-971.01
Active axes			X, Y
Travel range in X	mm		50
Travel range in Y	mm		25
System resolution in X	nm		2.5
System resolution in Y	nm		2.5
Minimum incremental motion in X	µm	Typ.	0.2
Minimum incremental motion in Y	µm	Typ.	0.2
Unidirectional repeatability in X	µm	Typ.	1
Unidirectional repeatability in Y	µm	Typ.	1
Backlash in X	µm	Typ.	6
Backlash in Y	µm	Typ.	6
Velocity in X	mm/s	Max.	10
Velocity in Y	mm/s	Max.	10
Reference switch			Hall effect
Reference switch repeatability	µm	Typ.	1
Limit switches			Hall effect
Rotational crosstalk in θY with motion in X	µrad	Typ.	±50
Rotational crosstalk in θZ with motion in X	µrad	Typ.	±50
Rotational crosstalk in θX with motion in Y	µrad	Typ.	±50
Rotational crosstalk in θZ with motion in Y	µrad	Typ.	±50

Mechanical properties	Unit	Tolerance	M-971.01
Drive screw type			Leadscrew
Drive screw pitch	mm		1
Guide type			Crossed roller guide
Drive force in X	N		50
Drive force in Y	N		50
Holding force in X, passive	N		200
Holding force in Y, passive	N		200
Load capacity	N		200
Overall mass	g	±5 %	8460
