- PI BlogVT-80 Linear StageProduct Description Specifications Downloads Quote / Order

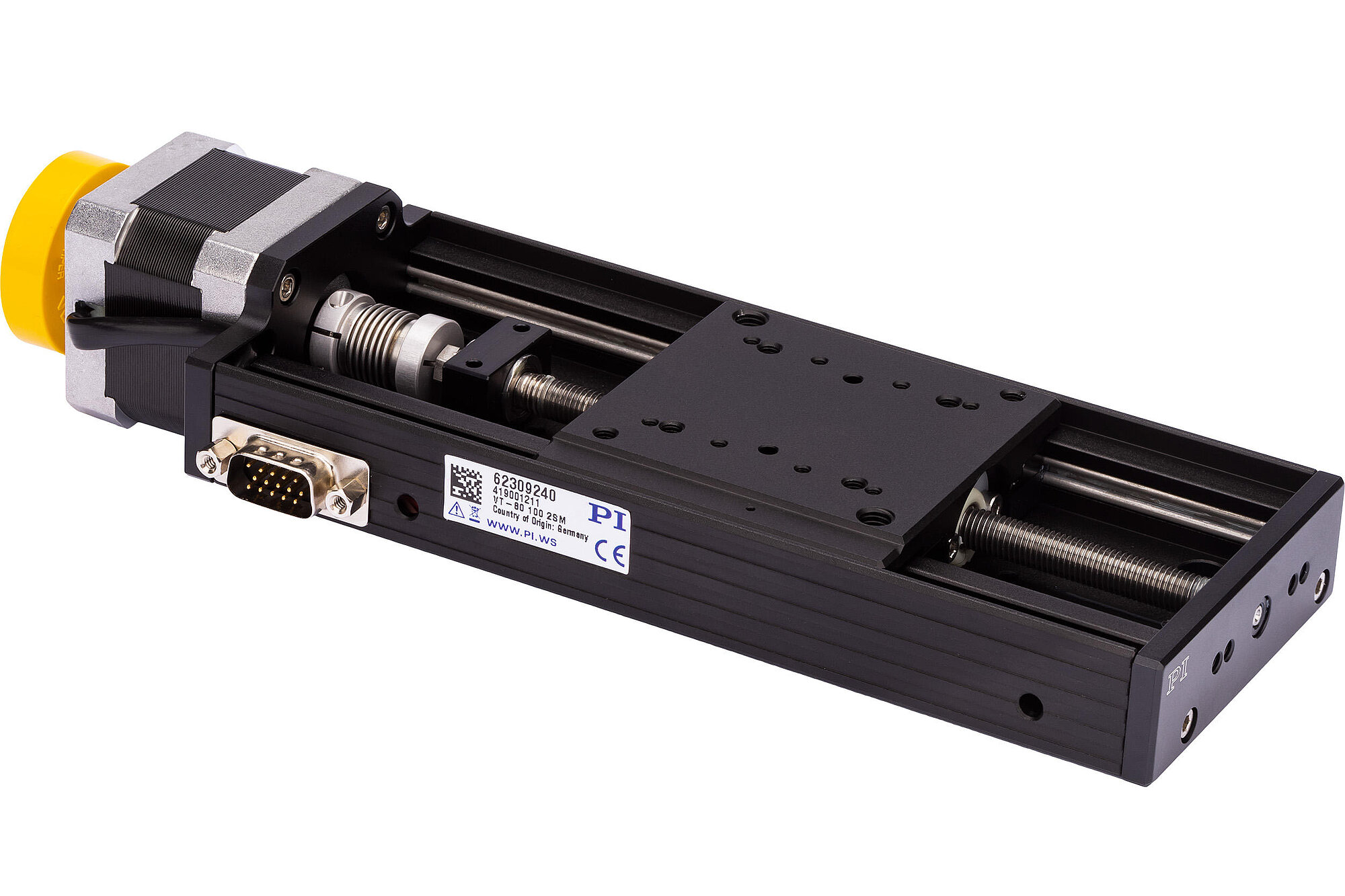

Standard-class linear stage

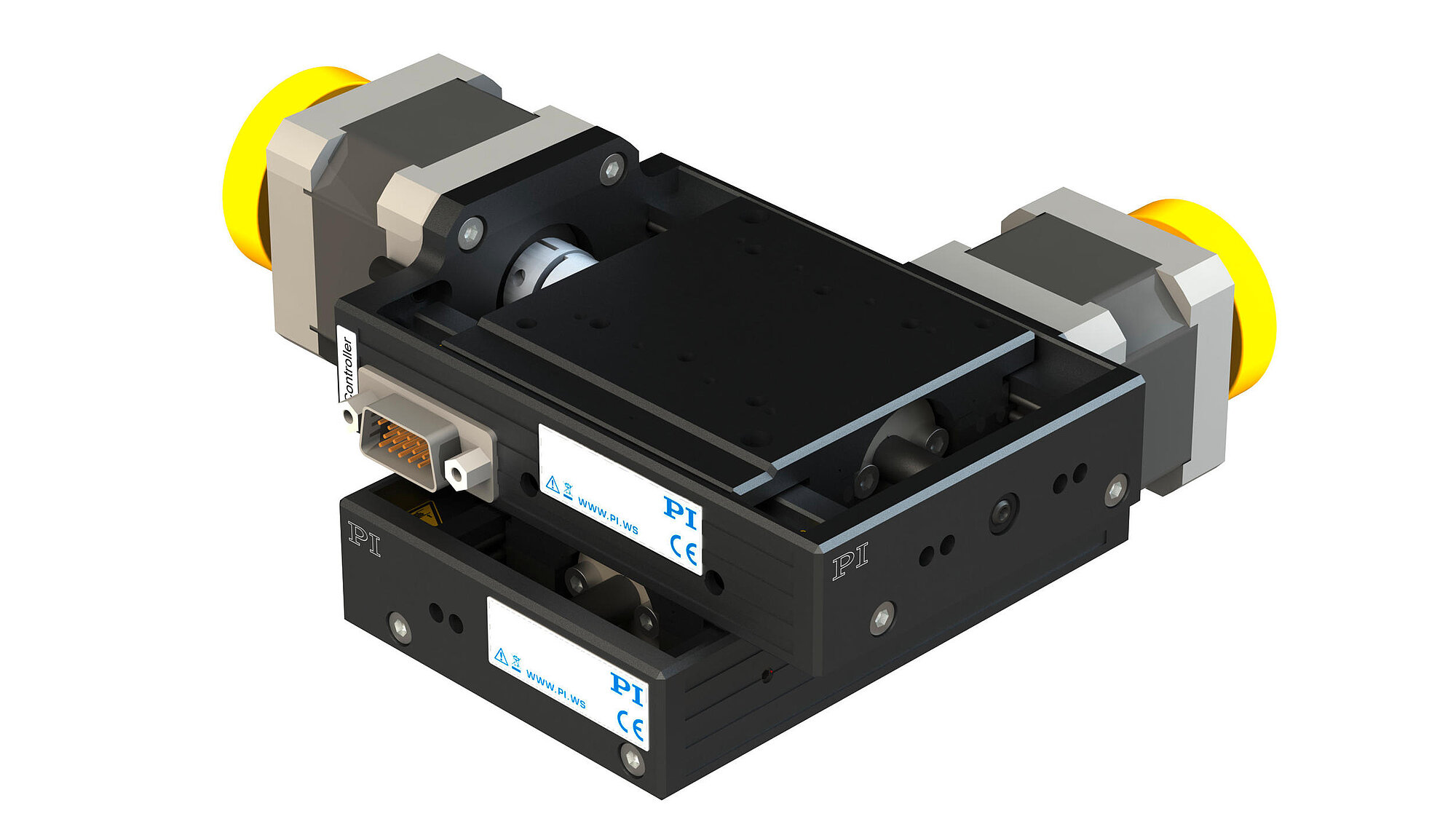

Recirculating ball bearings and precision leadscrew for smooth and even feed. Stress-relieved aluminum base for highest stability. Compact XY combinations. Two mechanical limit switches.
- Closed-loop DC motor with rotary encoder on the motor shaft
- 2-phase stepper motor for high torque even at low velocities and high resolution
Recirculating ball bearings
When carefully assembled, recirculating ball bearings are distinguished by a beneficial combination of high load capacity, lifetime, maintenance-free operation, and guiding accuracy. The moving part of the stages is supported by four preloaded linear ball bearing units which run on two guide rails. Each bearing unit is made up of two independent rows of circulating ball bearings.
Positioning tasks with low duty cycle in industry and research.
Short Instructions MP146EKStages with Electric Motors: DT-xx / ES-100 / HPS-170 / L-xxx / LS-xx / LS-xxx / MTS-65 / NPE-200 / PLS-85 / PRS-xxx / RS-40 / UPL-120 / UPM-160 / VT-801.5.0 October 2017
User Manual VT-80Linear Stage2017-07-272017-07-27
VT-80 STEPVT-80 STEP---
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

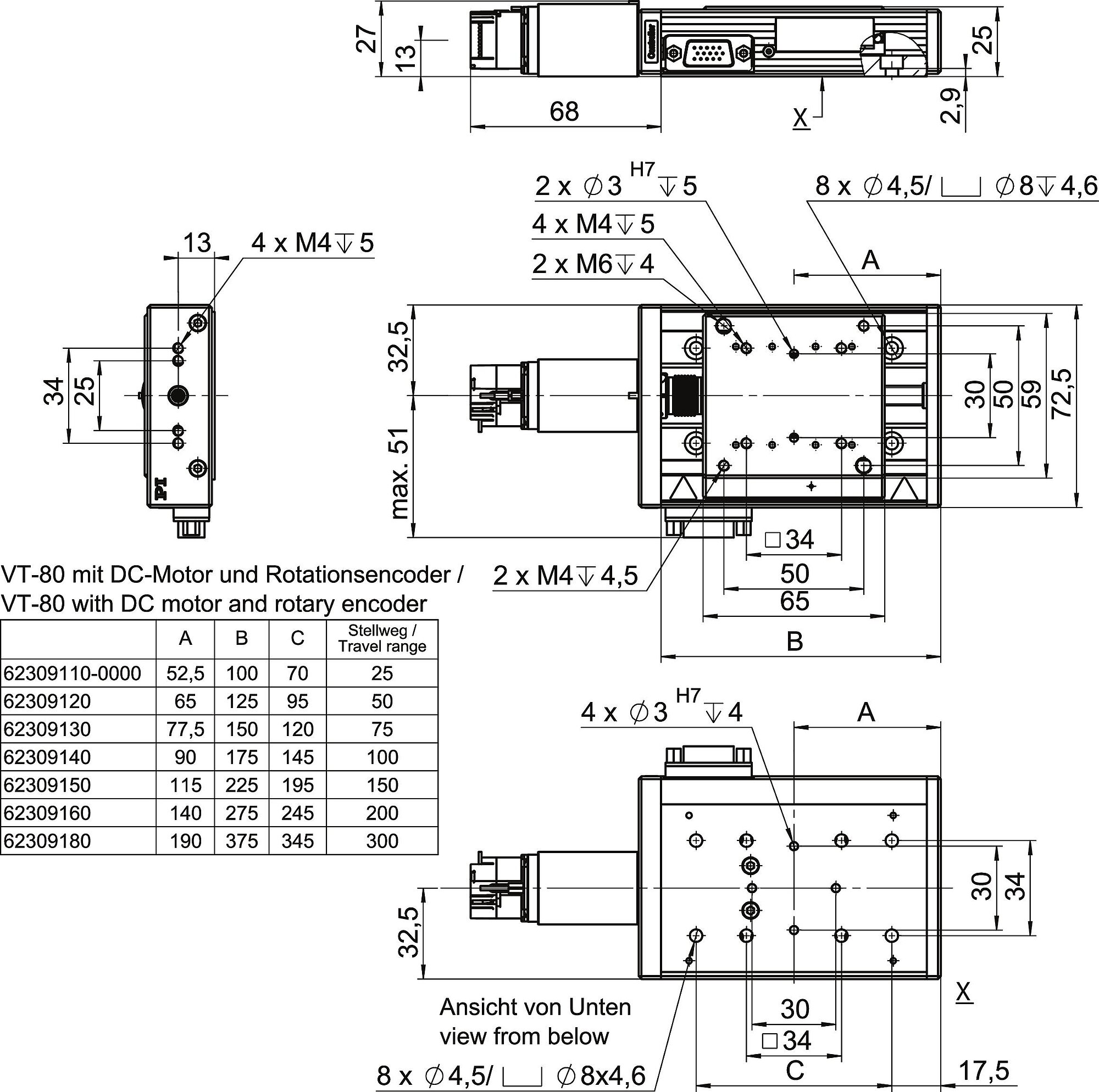

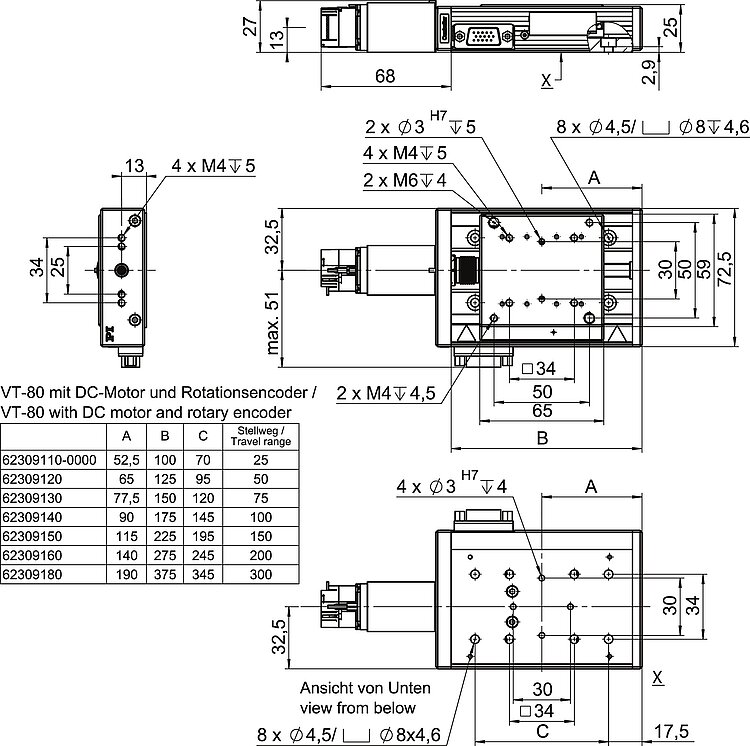

Versions with DC motor

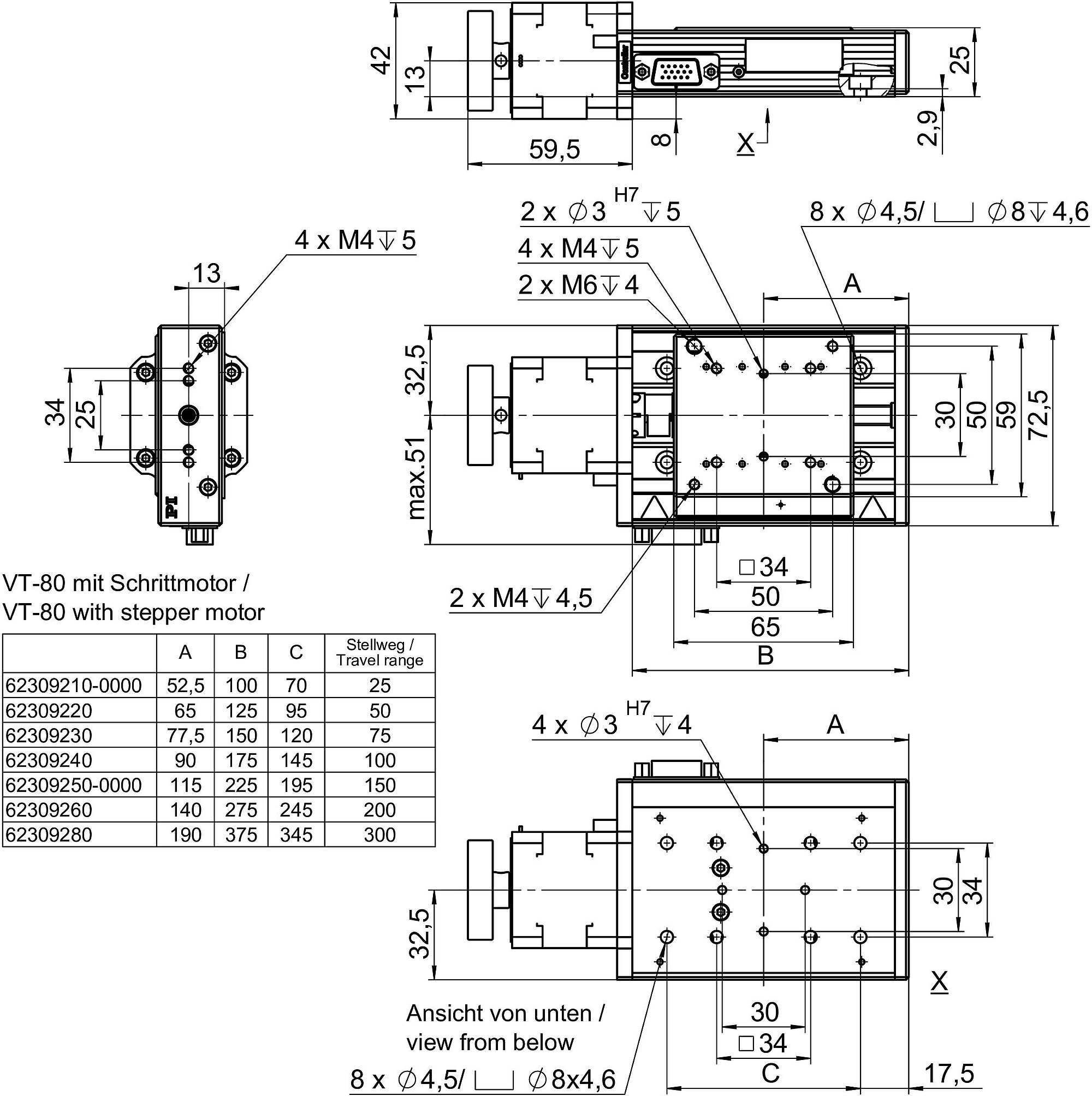

Versions with stepper motor
Default option, please specify when ordering
For accessories, please specify when ordering
