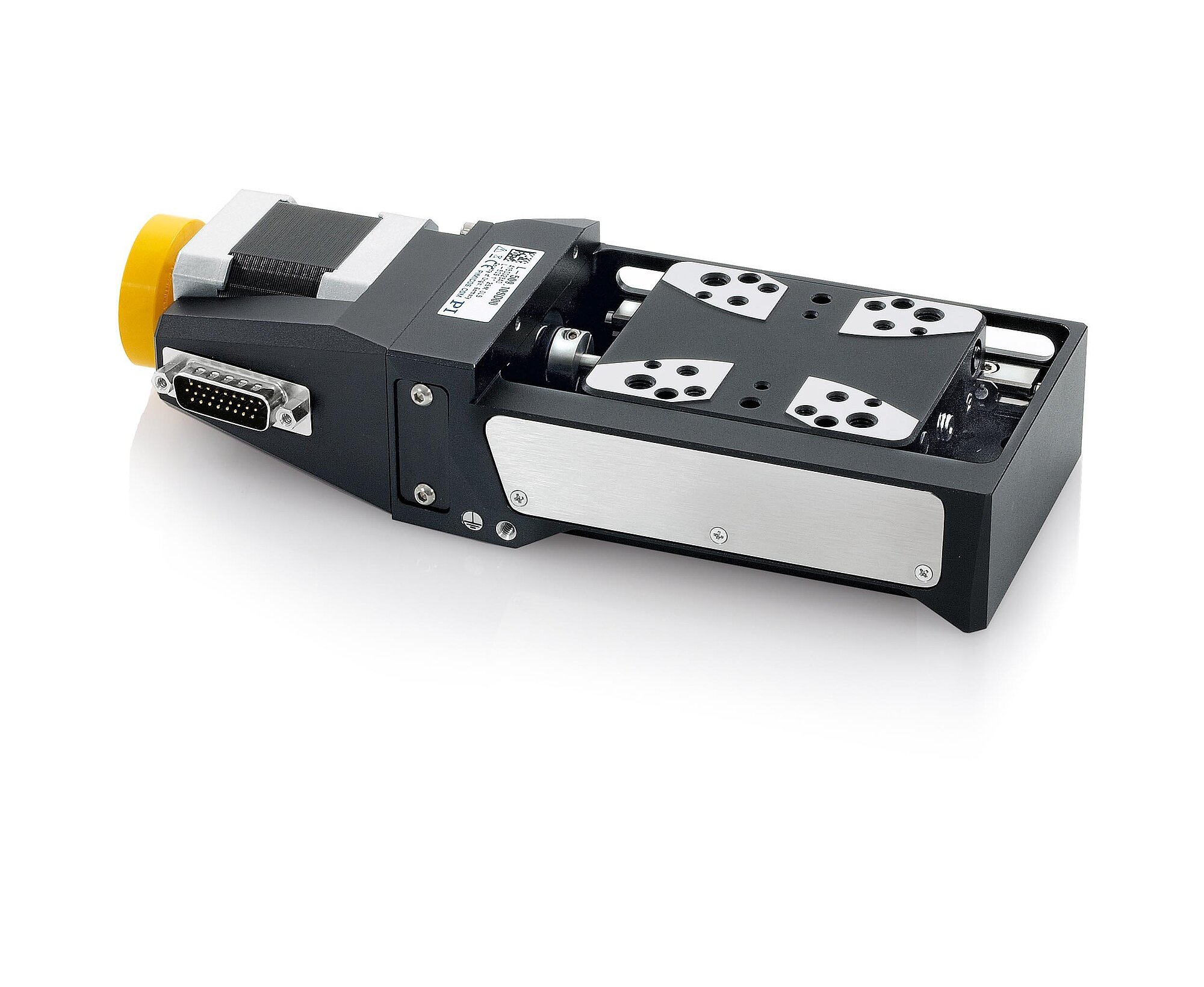

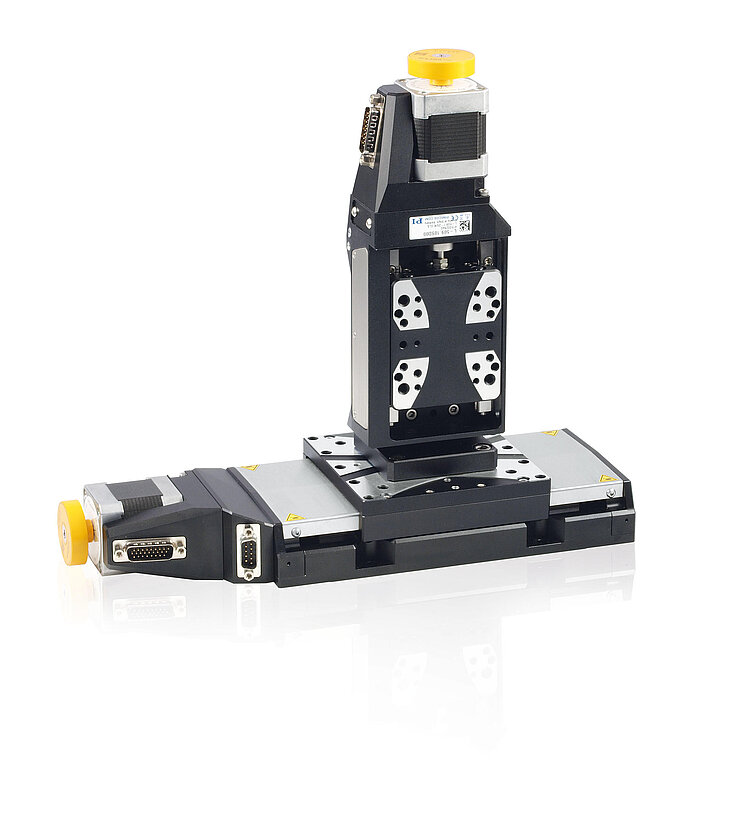

L-509 Precision Linear Stage

Compact Design, for Loads to 10 kg

  • Travel ranges from 26 to 102 mm (1" to 4")
  • Repeatability to 0.1 µm
  • Optional with linear encoder for direct position measuring
  • ActiveDrive DC, BLDC, DC gearhead, DC motor, stepper motor
  • Direction-sensing reference switch
  • Variants suitable for vacuum available
L-509 Precision Linear Stage
Product Description Specifications Downloads Quote / Order

Product overview

High travel accuracy and load capacity due to crossed roller guides with anti-creep system. Precision ball screw with 1 mm pitch. Compact design. Stress-relieved aluminum base for high stability. Noncontact optical limit switches. Noncontact optical reference switch with direction sensing in the middle of the travel range.

Motor types available

  • DC motor
  • ActiveDrive DC motor for high velocity: Control via pulse-width-modulated (PWM) signals, the operating voltage is achieved via an amplifier integrated in the motor housing
  • DC servo motor with gearhead for high torques and resolution at low motor power
  • 2-phase stepper motor for low velocity and high resolution
  • Brushless DC motor: For applications with a high duty cycle. Use a controller with sine commutation for an exceptionally smooth synchronous motion and low vibrations even at a very low velocity.

Types of position measuring

  • Without encoder (open loop)
  • Integrated rotary encoder on the motor shaft
  • Incremental linear encoder

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Autofocus. Laser cutting. Research. Biotechnology. Automation. Optical alignment.

Specifications

Datasheet

Datasheet L-509

Version / Date
2023-06-15
pdf - 4 MB
Version / Date
2023-06-15
pdf - 4 MB
Version / Date
2021-01-21
pdf - 1 MB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English

Datasheet

Datasheet

Datasheet L-509

Version / Date
2023-06-15
pdf - 4 MB
Version / Date
2023-06-15
pdf - 4 MB
Version / Date
2021-01-21
pdf - 1 MB

Documentation

Documentation

User Manual MP141

L-509 Precision Linear Stage, 85 mm Width

Version / Date
1.8 2023-06-15
pdf - 3 MB
Version / Date
1.8 2023-06-15
pdf - 3 MB
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
3.0.0 2024-01-15
pdf - 261 KB
Version / Date
3.0.0 2024-01-15
pdf - 295 KB

3-D Models

3-D Models

3-D model L-509.x0DG10

Version / Date
2017-11-08
zip - 7 MB
3-D Models

3-D model L-509.0xx132

Version / Date
2017-06-09
zip - 9 MB
3-D Models

3-D model L-509.xxSD00

Version / Date
2017-11-08
zip - 15 MB
3-D Models

3-D model L-509.xxADx0

Version / Date
2017-11-07
zip - 17 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

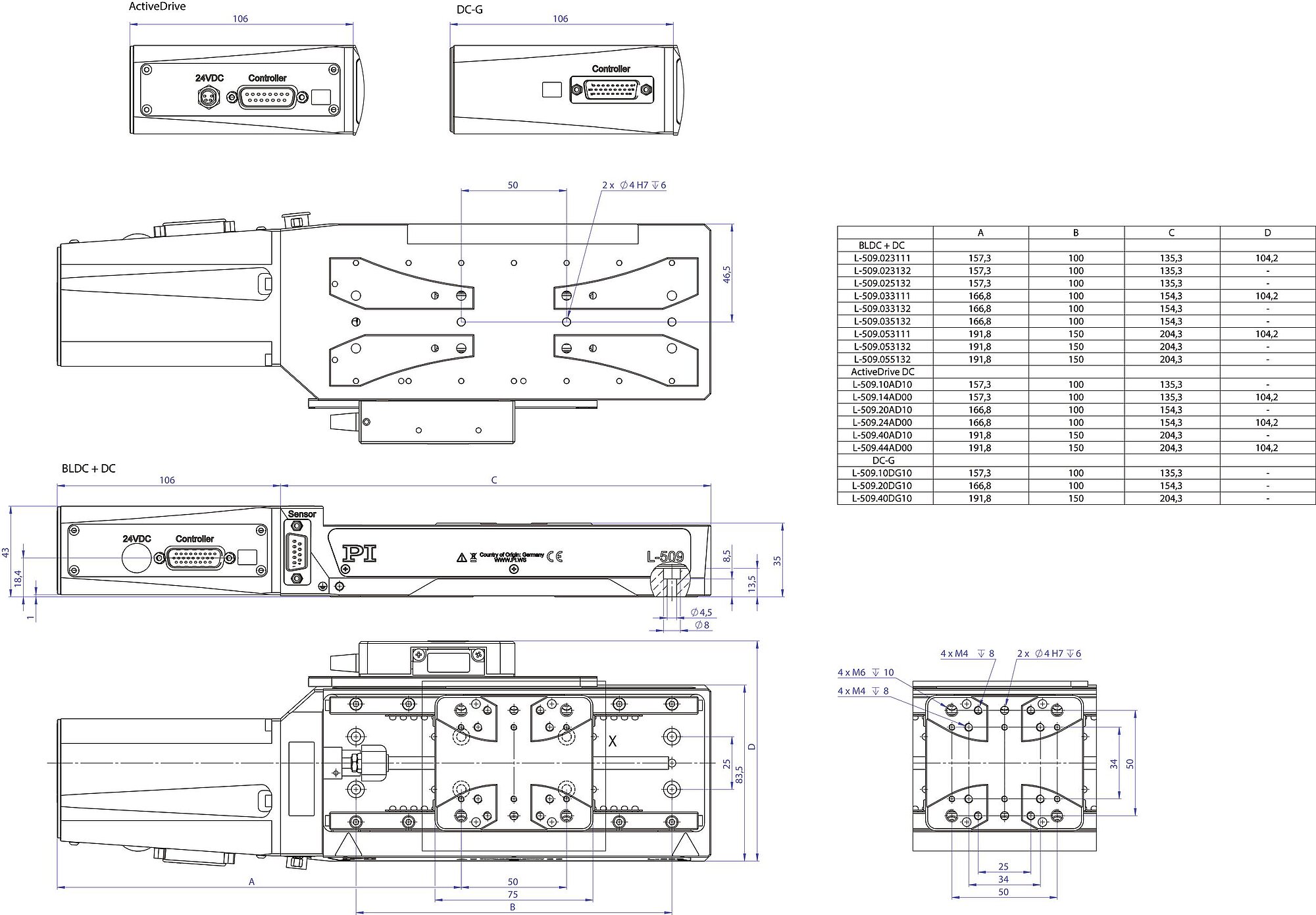

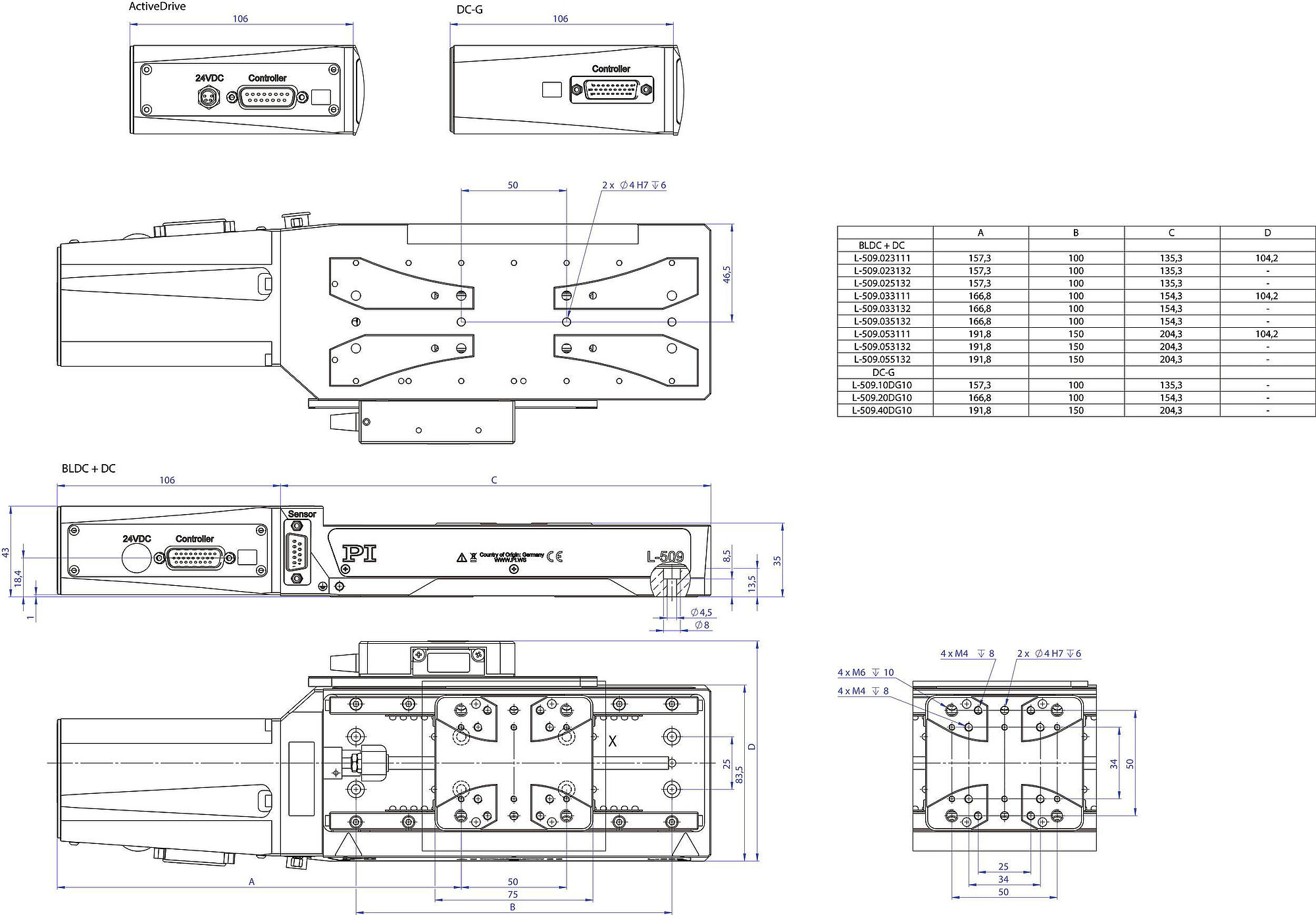

L-509.023111

Precision linear stage; DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-509.033111

Precision linear stage; DC motor; 52 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-509.053111

Precision linear stage; DC motor; 102 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-509.023132

Precision linear stage; DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, A/B quadrature, RS-422

L-509.033132

Precision linear stage; DC motor; 52 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, A/B quadrature, RS-422

L-509.053132

Precision linear stage; DC motor; 102 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, A/B quadrature, RS-422

L-509.025132

Precision linear stage; brushless DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-509.035132

Precision linear stage; brushless DC motor; 52 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-509.055132

Precision linear stage; brushless DC motor; 102 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-509.10AD10

Precision linear stage; DC motor with ActiveDrive; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422

L-509.20AD10

Precision linear stage; DC motor with ActiveDrive; 52 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422

L-509.40AD10

Precision linear stage; DC motor with ActiveDrive; 102 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422

L-509.14AD00

Precision linear stage; DC motor with ActiveDrive; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 0.05 nm sensor resolution, A/B quadrature, RS-422

L-509.24AD00

Precision linear stage; DC motor with ActiveDrive; 52 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 0.05 nm sensor resolution, A/B quadrature, RS-422

L-509.44AD00

Precision linear stage; DC motor with ActiveDrive; 102 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 0.05 nm sensor resolution, A/B quadrature, RS-422

L-509.10DG10

Precision linear stage; DC gear motor; 26 mm travel range; 100 N load capacity; 3 mm/s maximum velocity; ball screw; incremental rotary encoder, 4096 counts/rev sensor resolution, A/B quadrature, RS-422

L-509.20DG10

Precision linear stage; DC gear motor; 52 mm travel range; 100 N load capacity; 3 mm/s maximum velocity; ball screw; incremental rotary encoder, 4096 counts/rev sensor resolution, A/B quadrature, RS-422

L-509.40DG10

Precision linear stage; DC gear motor; 102 mm travel range; 100 N load capacity; 3 mm/s maximum velocity; ball screw; incremental rotary encoder, 4096 counts/rev sensor resolution, A/B quadrature, RS-422

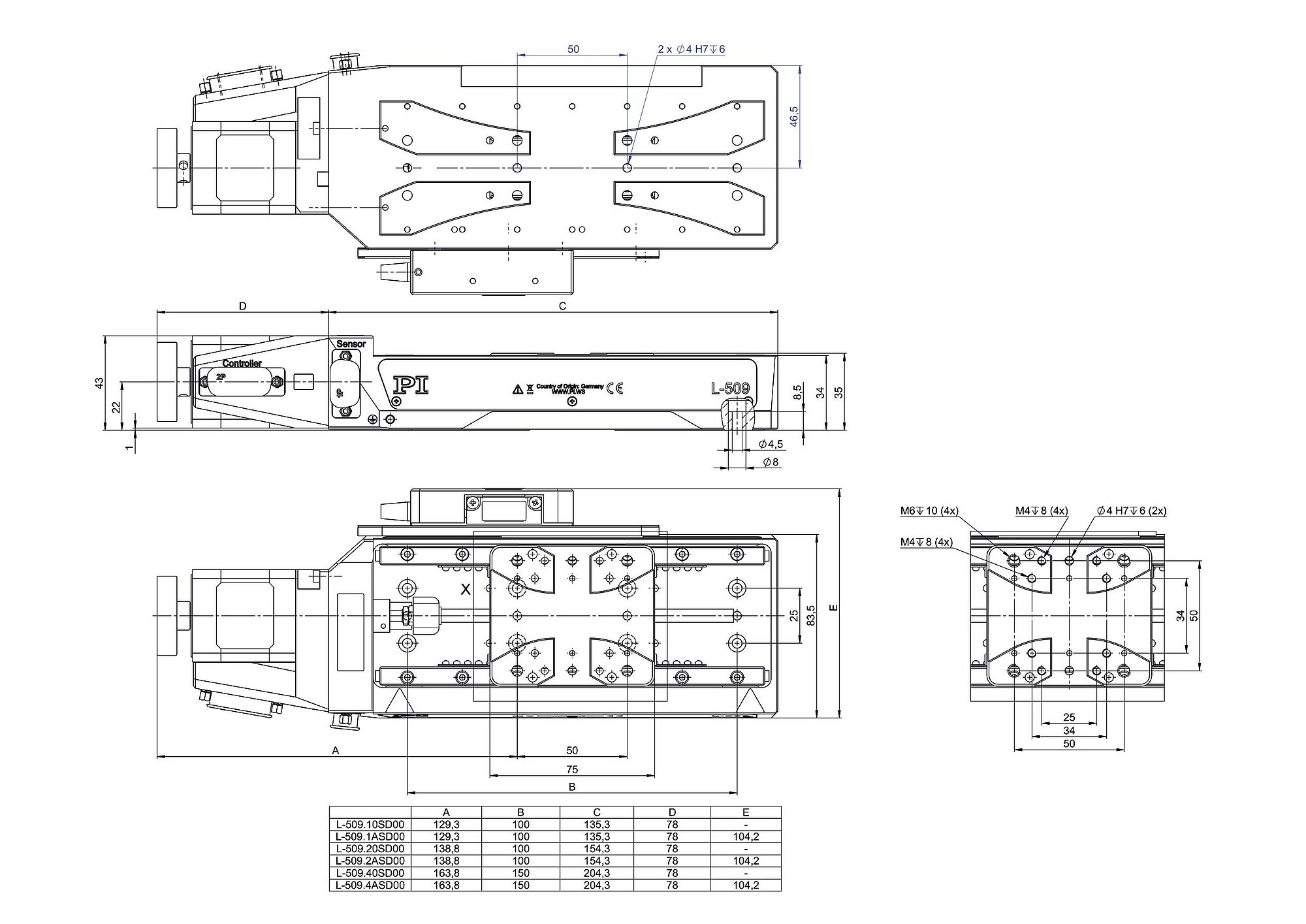

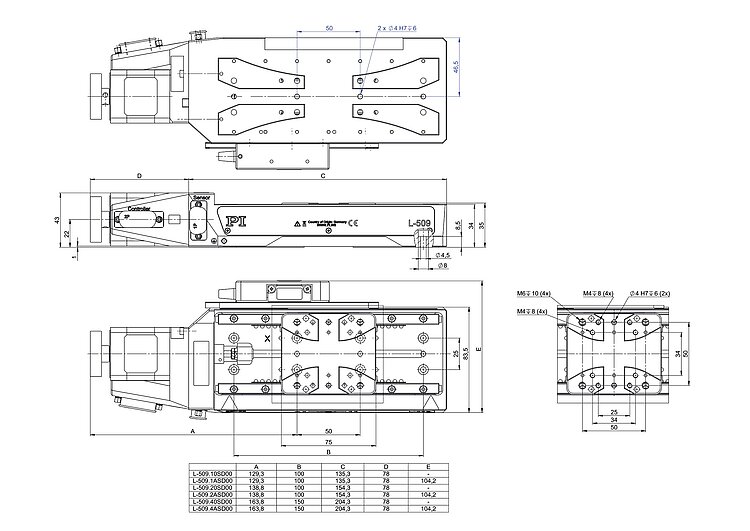

L-509.1ASD00

Precision linear stage; 2-phase stepper motor; 26 mm travel range; 100 N load capacity; 20 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-509.2ASD00

Precision linear stage; 2-phase stepper motor; 52 mm travel range; 100 N load capacity; 20 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-509.4ASD00

Precision linear stage; 2-phase stepper motor; 102 mm travel range; 100 N load capacity; 20 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
